Three years warranty ipg laser source automatic feeding system fiber laser cutting machine 6 kw
Detailed Product Description
| Cutting Range Selection: |
3015/4015/4020 |
Laser Output Power: |
1000w/1500w/2000w/3000w/4000w |
| Exchange Way: |
High Speed Flat Pull |
Workbench Axial Accuracy: |
±0.05mm/m |
| Workbench Repeat Accuracy: |
±0.03mm |
Power Requirements: |
380v/50Hz |
| Max Plate Weight For Laser Robot: |
200kg |
Max Heap Height For Laser Robot: |
500mm |

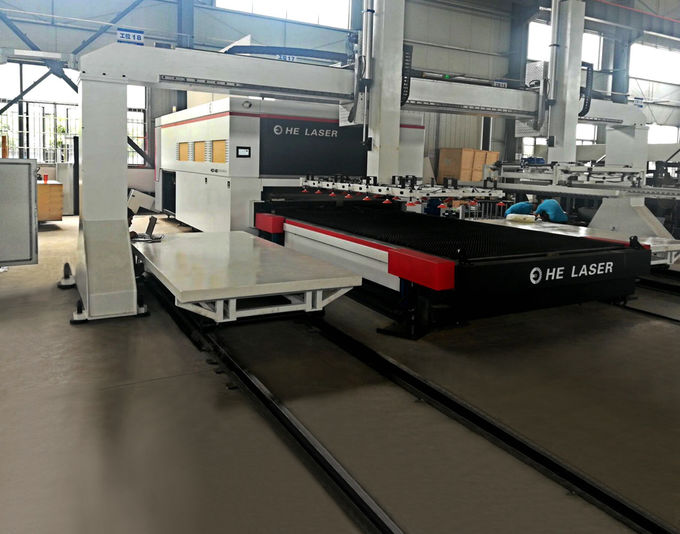

1.1 Project overview
The automation system is designed and developed in accordance with the work done by Party A. By controlling each part of the robot motion controller, automatic lamination of sheet material,automatic reclaiming ,automatic loading automatic focusing automatic cutting, automatic feeding and automatic discharging are automatically produced, which can effectively guarantee the quality of products, improve production efficiency and reduce production costs. The whole system has good operation interface, which is convenient for operators to use.
Product features
- No man feed and cut materials, and complete the medium to large batch production.
- Automatic plate layering function, sheet separation function and double sheet inspection function.
- The structure of feeding system is based on the principle that the vacuum suction device is used as robot tooling to replace traditional manual feeding.
- Improve work safety, reduce injury risk and reduce staff work
- The tooling adopts vacuum suction cup technology, which can process all kinds of large and small parts with the weight up to 40kg;
