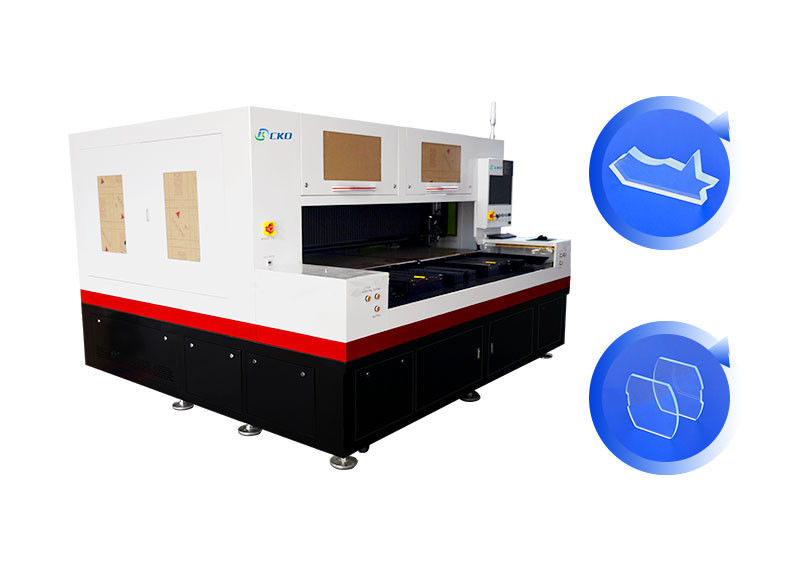

Large Size 90W Fiber Laser Cutting Machine For Screen Protector Glass

Large Size 90W Fiber Laser Cutting Machine For Screen Protector Glass

  • Name
    Screen Protector Glass Laser Cut Machine
  • Laser Type
    Fiber Laser
  • Laser Power
    90w
  • Cutting Area
    400mm*700mm
  • Accuracy
    ±0.01mm
  • Chipping
    ≤5μm
  • Thickness
    0.03-25mm
  • Speed
    0-500mm/s
  • Place of Origin
    Guangdong, China
  • Brand Name
    CKD
  • Certification
    ISO / CE / FDI
  • Model Number
    CC-GDA16
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    30 Sets Per Month

Large Size 90W Fiber Laser Cutting Machine For Screen Protector Glass

Large Size 90W Fiber Laser Cutting Machine
For Screen Protector Glass
  Advantages
  Irregular-shape High-speed cutting
  High cutting quality, no taper,no burrs,small chipping
  Low-cost,High-yield rate, Low consumables
  and energy -saving
  No pollution, No Powder and no wastewater
  Materials
  Ultra-clear glass, plain white polymer,
  high borosilicate glass, quartz glass etc;
  Phone glass cover, car glass ,
  camera glass cover etc;
  LCD screen,K9 glass, filter cutting, mirror cutting etc

1. Picosecond processing using small single pulse energy, high frequency processing, fine engraving, processing surface more fine and smooth. There are a variety of power options :30W, 50W, 75W, 80W and 90W.



2. 1000*1000mm large double work surface, suitable for most cutting scenes.



3. Can be used for 0.1mm-19mm reinforced and non-reinforced glass cutting, such as mobile phone glass cover, car glass cover, camera glass cover, etc.



4. 0.1mm-5mm sapphire glass cutting, such as :LCD glass cutting and other optical lens cutting, mobile phone sapphire cover, camera sapphire glass cover, sapphire lamp post (LED lamp post) processing.



Large Size 90W Fiber Laser Cutting Machine For Screen Protector Glass 0



Performance and characteristics

1 . the use of high-power picosecond laser, core accessories are purchased from international first-line manufacturers, making the equipment performance more stable;

2 . the glass cutting head is developed by a professional team, imported lenses from the United States, the spot is fine, the focus is long, the focus is the smallest spot < 2um, focal depth length up to 19mm;

3 . the motor platform, optical platform base using natural marble, after two fine grinding processing, accuracy level reached 00;

4 . X/Y axis motor adopts high-end linear motor, Germany 0.1um digital grating ruler, Taiwan lead screw and guide rail, high-quality core moving parts, to ensure continuous 24 hours without fault operation;

5 . the use of high pressure vacuum pump adsorption products to ensure positioning stability;

6 . CCD visual positioning, accurate identification of circle, cross and other marks;

7 . the cutting software is powerful, support cutting segments in one, separate cutting, separate segments, through the left and right platform side of the start button operation, flexible and convenient (such as: left platform cutting, right platform segments; Left platform cutting segments, right platform cutting, etc.);




FAQ

Q1 : Could I visit your factory?

A1 : Yes, We will warmly welcome you anytime. It's tooks about 1 hours from bao'an International airport to our factory.

Q2 : How many years do you do this business?

A2 : Established in 2010,Shenzhen CKD Precision Mechanical & Electrical Co., Ltd is a laser equipment manufacturer and automation New Intelligent Manufacturing solution provider , specializing in the R&D , production, sales , and service . After more than ten years of deep cultivation and accumulation ,CKD has obtained more than 40 patents , passed CE certification , ISO9001 quality management system certification , and intellectual property management system certification, and gained National High-Tech enterprise.

Q3 : Does your factory have the design & development capacities, we need customized products ?

A3 : yes . The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience .

       We can make customized products especially for you; Please kindly contact us for more details .

Q4 : About shiping ?

A4 : 15 - 45 days after payment for standard products , please consult our sales for customized products .





 If you have any questions, Please no hesitate to contact  us. We will as always provide and feedback you the higher performance, cost-effective, better quality products and timely service.
