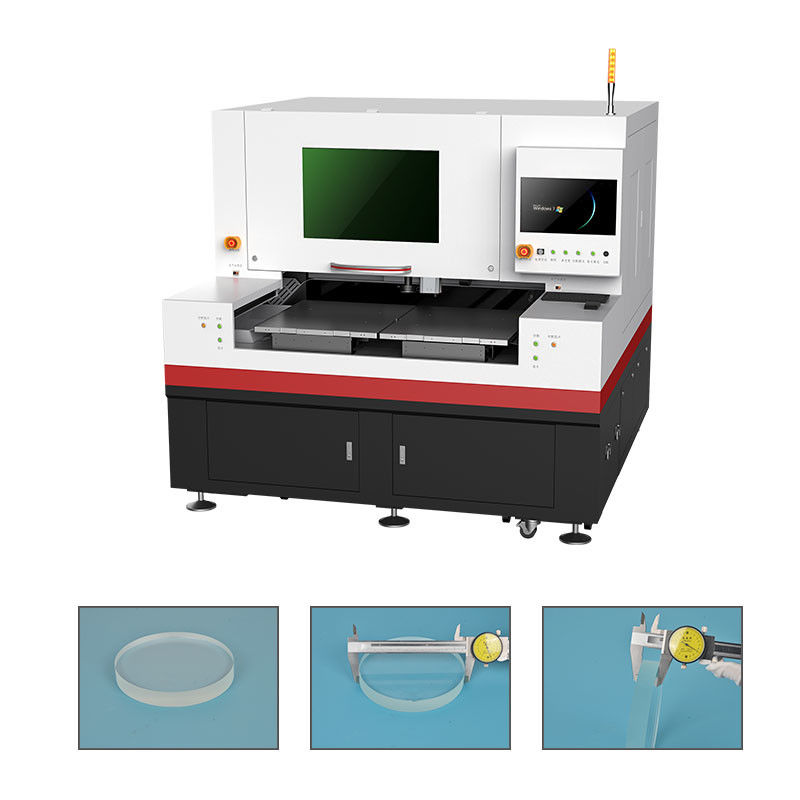

0-500mm/s High speed Laser Cutting Machine 19mm Thick Glass Processing Equipment

0-500mm/s High speed Laser Cutting Machine 19mm Thick Glass Processing Equipment

Products - Laser Glass Cutting Machine
  • Highlight

    0-500mm/S High Speed Laser Cutting Machine

    ,

    High Speed Laser Cutting Machine 19mm

    ,

    19mm Thick Glass Processing Equipment

  • Name
    Glass Processing Equipment
  • Accuracy
    ±0.01mm
  • Thickness
    19mm
  • Speed
    0-500mm/s
  • Materials
    Quartz Glass
  • Advantages
    Small Chipping
  • Work Size
    600*700mm*2
  • Power
    80W
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO
  • Model Number
    CKDGC0001
  • Minimum Order Quantity
    1
  • Price
    Negotiation
  • Packaging Details
    Wood box
  • Delivery Time
    15-20 work day
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 sets/month

0-500mm/s High speed Laser Cutting Machine 19mm Thick Glass Processing Equipment

  • 0-500mm/s High speed Laser Cutting Machine 19mm Thick Glass Processing Equipment
  • 0-500mm/s High speed Laser Cutting Machine 19mm Thick Glass Processing Equipment
  • 0-500mm/s High speed Laser Cutting Machine 19mm Thick Glass Processing Equipment
Get Price Contact Now

Infrared Picosecond Glass Cutting Machine 19mm Thick Glass Processing Equipment



Product description



1. Picosecond processing uses small single pulse energy, high frequency processing, fine carving, processing surface is more fine and smooth. There are three power options: 30W, 50W and 70W.
2. 600*500mm working width issuitable for most cutting scenes.

3. lt can be used for 0.1mm-6mm reinforced and non reinforced glass cutting, such as mobile phone glass cover, car glass cover and camera glass cover.
4. 0.1mm-2mm sapphire glass cutting, such as: mobile phone sapphire cover,camera sapphire glass cover, sapphire lamp post(LED lamp post). LCD glass cutting and other optical lens cutting processing.



Machine model CKDBL001
Laser source power 30W/50W/70W
Machine structure X,Y,Z Marble Table
Re-positioning accuracy of motion platform ±1um
positioning accuracy of motion platform ±2um
Laser source wavelength 1064nm
Processing speed 0-500mm/s adjustable
Cooling type Constant temperature water cooling
Supported files DXF,PLT,DWG





0-500mm/s High speed Laser Cutting Machine 19mm Thick Glass Processing Equipment 0



Advantages

Irregular-shape High-speed cutting

High cutting quality , no taper , no burrs , small chipping

Low-cost , High-yield rate , Low consumables and energy -saving

No pollution , No Powder and no wastewater





Applicable Industries

Glass:Optic / UTG / Willow / Brittle / Biomedical glass
Communication Media:Mobile / Watch sapphire cover / Camera / CCTV Lens

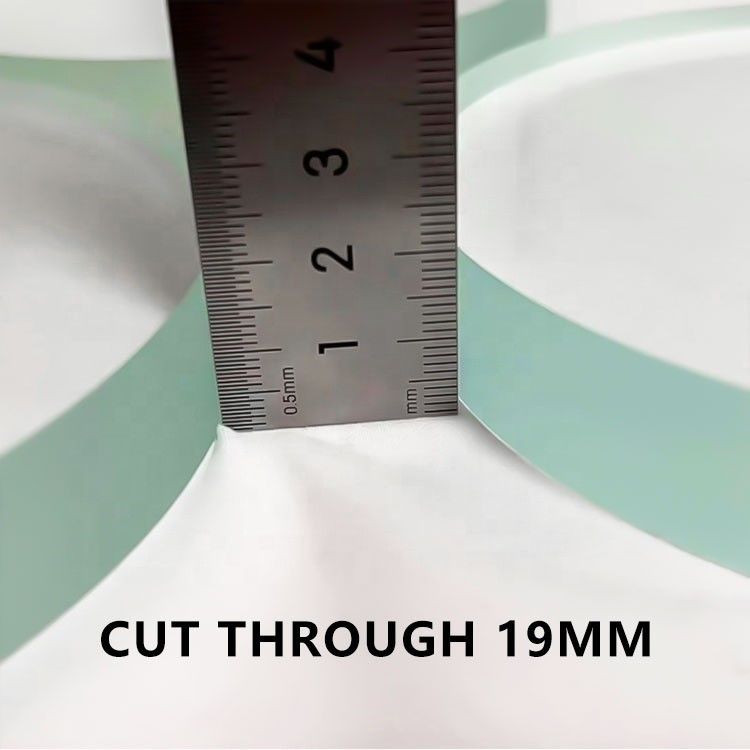

Sample Picture

This machine can be used for 0.1mm-6mm reinforced and non reinforced glass cutting, such as mobile phone glass cover, car glass cover and camera glass cover. 0.1mm-2mm sapphire glass cutting, such as: mobile phone sapphire cover,camera sapphire glass cover, sapphire lamp post(LED lamp post).LCD glass cutting and other optical lens cutting.processing.

0-500mm/s High speed Laser Cutting Machine 19mm Thick Glass Processing Equipment 1

FAQ

Q1: Could I visit your factory?

A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from

bao'an International airport to our factory.

Q2: How many years do you do this business?

A2: From 2008.

Q3: Does your factory have the design & development capacities, we need customized products?

A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.

We can make customized products especially for you; Please kindly contact us for more details.

Q4: What is payment terms?

A4: 100% T/T advanced.

Q5: About shiping?

A5: 3-10 days after payment for standard products, please consult our sales for customized products.



If you have any questions, Please no hesitate to contact us. We will as always provide and feedback you the higher performance, cost-effective, better quality products and timely service.
