50W Small Glass Cutting Machine 0.03-25mm Thickness With 610*700mm Work Size

50W Small Glass Cutting Machine 0.03-25mm Thickness With 610*700mm Work Size

  • Highlight

    50W Small Glass Cutting Machine

    ,

    Small Glass Cutting Machine 25mm

  • Name
    Small Glass Cutting Machine
  • Work Size
    610*700mm
  • Thickness
    0.03-25mm
  • Applied Range
    Glass
  • Cut Speed
    0-500mm/s
  • Chipping
    ≤5μm
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO
  • Model Number
    CC-GS003
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Plywood Box
  • Delivery Time
    5-15 Work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Sets Per Month

50W Small Glass Cutting Machine 0.03-25mm Thickness With 610*700mm Work Size

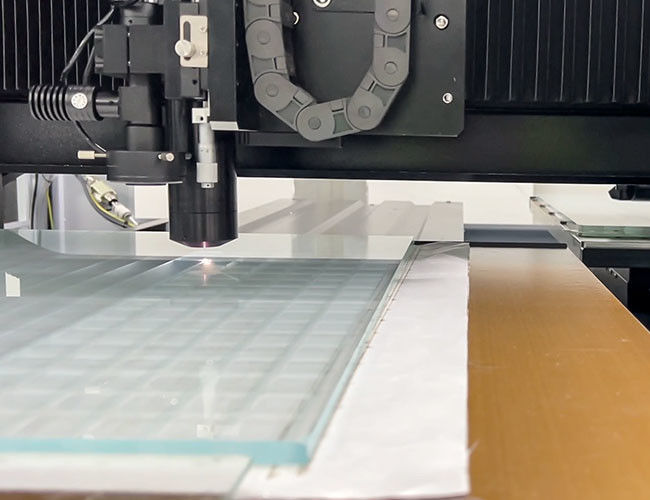

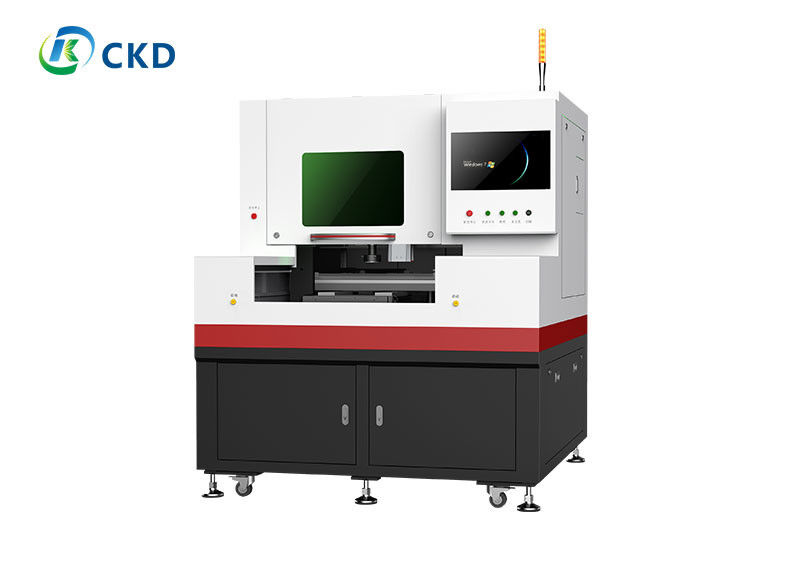

Small Glass Infrared Picosecond

Laser Cutting Machine With 610*700mm Work Size



Product Advantages



1. The light source is high power picosecond laser

2. Self-developed glass cutting head, all imported lenses, light spot fine, deep focus

3. Support cutting segments in one, separate cutting, separate segments

4.X/Y axis motor adopts high-end linear motor, Germany 0.1um digital grating ruler

5. Motion control standard PSO function, uniform control of laser spot spacing

6. Device alignment CCD and telecentric vision lens, accurately identify circle , cross and other mark points

7. The electric components are made by Schneider of France, and the switching power supply is made by Taiwan Mingwei



Technical parameters
Work Size 610*700mm Accuracy ±0.01mm
Thickness 0.03-25mm Speed 0-500mm/s
Chipping ≤5μm power 50W(10W,20W,30W,60W,80W)
Chipping 1064nm power M2<1.2
Pulse width <10PS Pulse frequency 1Hz-1000kHz
Cooling mode water-cooling Voltage,power <8KW.AC220V



50W Small Glass Cutting Machine 0.03-25mm Thickness With 610*700mm Work Size 0





Scope of application

Instruments, thick, extra thick glass industry cutting, such as: ultra white glass, white glass, high borosilicate glass, quartz glass, etc.;

Reinforced and non-reinforced glass cutting, such as: mobile phone glass cover plate, car glass cover plate, camera glass cover plate, etc.;

Sapphire glass cutting, such as: mobile sapphire cover plate, camera sapphire glass cover plate, sapphire light strip (LED light strip), etc.

LCD glass cutting, such as: shaped LCD screen inverted R/U/C Angle, LCD screen cutting, etc.

Other optical glass cutting, such as :K9 glass, filter cutting, mirror cutting, etc.



FAQ


Q1.Does your factory have the design & development capacities, we need customized products?

A1.yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.

We can make customized products especially for you; Please kindly contact us for more details.

Q2.What is payment terms?

A2:.100% T/T advanced.

Q3.About shiping?

A3. 3-10 days after payment for standard products, please consult our sales for customized products.

Q5. How about your after service?

A5.Our engineers who has long time professional experience and sales will help you within 24h.

Q6.Do you have patents or core technology?

A6.Yes, for details, please contact our sales.

Q7.Where have you sold your products?

A7. Europe, Americas, Africa, and Asia.
