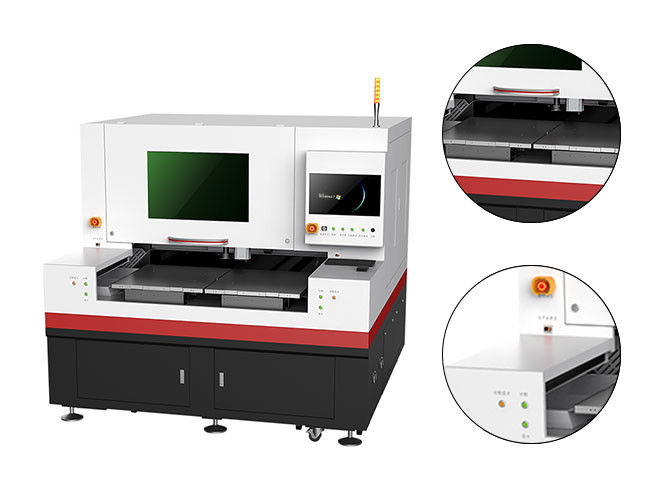

Unibody Laser Glass Cutting Machine 80W For Screen Protector Glass

Unibody Laser Glass Cutting Machine 80W For Screen Protector Glass

  • High Light

    Unibody Laser Glass Cutting Machine


    Laser Glass Cutting Machine 80W


    Glass Laser Cutting Machine 80W

  • Name
    Glass Laser Cutting Machine 80W
  • Work Size
    610*900mm X 2
  • Cutting Accuracy
  • Cutting Thickness
  • Cutting Speed
  • Materials
    Screen Protector Glass
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Sets Per Month

Unibody Laser Glass Cutting Machine 80W For Screen Protector Glass

Unibody Laser Glass Cutting Machine

80W for Screen Protector Glass


Laser glass cutting machine is a device that uses laser technology to cut glass materials . It uses a high energy laser beam to ablate or melt the glass , enabling a precise and efficient cutting process .


Product description

Self-developed glass cutting head, lens all imported, light spot fine, deep focus;

Support cutting segments in one, separate cutting, separate segments;

Motion control standard PSO function, uniform control of laser spot spacing;

The device aligns CCD and telecentric vision lens to accurately identify mark points such as circle and cross.

X/Y axis motor adopts high-end linear motor, Germany 0.1um digital grating ruler;

The electrical components are made by Schneider of France, and the switching power supply is made by Taiwan Mingwei.

Motor platform, optical platform base using natural marble, accuracy is more guaranteed;


Key attributes

Laser Type Fiber Laser
Cutting Speed 0-500mm/s
Work Size 600*700mm*2
Accuracy ±0.01mm
Cutting Thickness 0-25mm
Chipping ≤5μm
Laser Source Brand RAYCUS
Configuration 3-axis
Graphic Format Supported AI, DXF, Dst, DXP
Laser Head Brand Raytools
Laser power 20W/30W/40W/50W60W/70W
Cutting materials Glass/tempered glass/screen Protector
Guiderail Brand HIWIN


Unibody Laser Glass Cutting Machine 80W For Screen Protector Glass 0



Limitations and Precautions


1 . Transparency requirements

laser cutting machine has certain requirements for the transparency of glass materials, and the cutting effect of opaque glass materials may not be ideal.


2 . Thermal stress

The heat generated in the laser cutting process may cause a certain thermal stress to the glass material, and it is necessary to pay attention to the thermal deformation of the material.


3 . Safety

The laser cutting machine uses high energy laser beams, and certain safety measures need to be taken to avoid damage to personnel and equipment.



Scope of application

Picosecond laser glass cutting machine is suitable for cutting all kinds of glass materials, and can achieve high precision and high efficiency processing results. It has a wide application prospect in the glass processing industry


Instruments, thick, extra thick glass industry cutting, such as: ultra white glass, white glass, high borosilicate glass, quartz glass, etc.;

Reinforced and non-reinforced glass cutting, such as: mobile phone glass cover plate, car glass cover plate, camera glass cover plate, etc.;

Sapphire glass cutting, such as: mobile sapphire cover plate, camera sapphire glass cover plate, sapphire light strip (LED light strip), etc.

LCD glass cutting, such as: shaped LCD screen inverted R/U/C Angle, LCD screen cutting, etc.

Other optical glass cutting, such as :K9 glass, filter cutting, mirror cutting, etc.


Unibody Laser Glass Cutting Machine 80W For Screen Protector Glass 1




Q: What’s the package?
A: We have 3 layers package: The outside is plywood case, which is fumigation-free packaging. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.

Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
