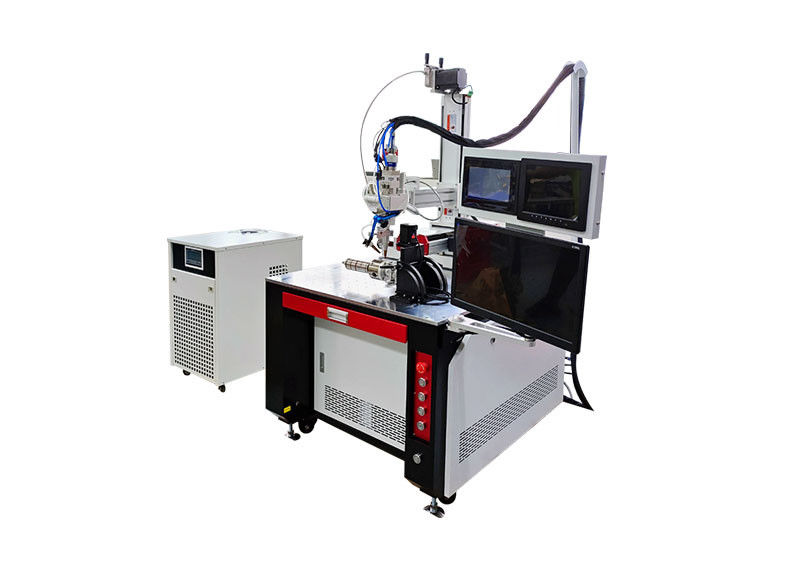

The Automatic Fiber Laser Welding Machine is the perfect solution for repairing molds. It is equipped with a powerful laser, water cooling system, and a dust-free working environment. With a power supply of 220V and a wavelength of 1064nm, it can be used to weld molds with a depth of 0.1-1.2mm. This machine is highly efficient, reliable, and cost-effective, making it an ideal tool for mold repair and restoration. Its features include precise temperature control, fast processing speed, and excellent welding quality. This machine is also easy to operate and maintain, making it a great choice for any mold repair job.
| Main parts of the machine | |
|
1.Raycus laser source The core part of the whole machine. Raycus is the best laser source brand in China With working life: 100000 hours. |
 |
 |
2. Control PC and CCD camera Professional programming system, you can setting all the welding track on software, and machine will act accordingly.
The image of the object is focused on the CCD chip through the lens, then the image will be displayed on a video display with clear picture quality, you can see the welding point clearly through CCD. |
|
3. Electric guide rail It can move up and down, left and right automatically. And it can weld irregular products.
X axis is 500mm, Y axis is 300mm, Z axis is 500mm The motor we use stepping motor. |
 |
 |
4. Laser head With wobble head. The spot size can be adjusted. Smooth welding appearance. High photoelectric conversion efficiency. |
|
5. Water chiller We use 3P water chiller. Cooling system is stable, support long term working. |
 |
| Name | Parameters |
|---|---|
| Product Name | Mould Repair Laser Welding Machine |
| Welding Type | Fiber Laser Welding |
| Welding Accuracy | High Accuracy |
| Wavelength | 1064nm |
| Pulse Width | 0.1-20ms |
| Welding Depth | 0.1-1.2mm |
| Work Size | 500*300*300mm |
| Working Environment | Dust-free |
| Cooling System | Water Cooling |
| Weight | 470KG |
Widely used in communications devices, IT, medical, electronics, batteries tab-lead, fiber-optic coupling devices, CRT electronic gun, metal parts, cell phone vibrating motors, clocks precision parts, automotive sheet steel optical communications industry copper parts, aluminium parts precision welding.
Product Features
Welding beam energy distribution, have the best spot for welding needs;
Applicable to all kinds of complex welding, welding of various devices and 5mm sheet;
UK imports ceramic condenser cavity, corrosion-resisant, high temperature, long life;
3M/5M optical fiber, welding flexibility and convenience;
Optional CCD camera, easy to abservation and precise positioning;
Customizable automation tools, can achive mass production;
With real-time energy-feedback, output power will be more stable.
We provide comprehensive technical support and services for Automatic Laser Welding Machine. Our technical support team is available 24/7 to answer any questions you may have regarding the usage and maintenance of the machine.
We provide installation and setup for the machine, and also provide troubleshooting and repair services. In addition, we provide regular maintenance services to ensure the machine is operating at peak performance. We also provide on-site technical support to ensure the machine is running optimally.
Our technical support team is highly experienced and knowledgeable and can answer any questions you may have. We also offer online technical support, so you can get the help you need quickly and easily.
Automatic Laser Welding Machine will be securely packaged to ensure it is safe during transport. The crate will be sealed with metal bands and labeled for ease of identification. The shipment will be sent by air freight or sea freight depending on the customer's preference.
Q1: Could I visit your factory?
A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from Bao'an International airport to our factory.
Q2: How many years do you do this business?
A2: From 2008.
Q3: Does your factory have the design & development capacities, we need customized products?
A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q4: What is payment terms?
A4: 100% T/T advanced.
Q5: About shiping?
A5: 3-10 days after payment for standard products, please consult our sales for customized products.
Q6: How about your after service?
A6: Our engineers who has long time professional experience and sales will help you within 24h.
Q7: Do you have patents or core technology?
A7: Yes, for details, please contact our sales.
Q8: Where have you sold your products?
A8: Europe, Americas, Africa, and Asia.
Our products are sold all over the world, you can rest assured.
