0-500mm/s All In One Laser Cutting Machine Glass Water Cooling

0-500mm/s All In One Laser Cutting Machine Glass Water Cooling

  • High Light

    0-500mm/S All In One Laser Cutting Machine


    All In One Laser Cutting Machine Glass

  • Name
    Glass Cutting Machine (All-in-One)
  • Cutting Speed
  • Laser Power
  • Working Environment
  • Working Voltage
  • Key Selling Points
    Ultra Fast Picesecond
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden box
  • Delivery Time
    15-30 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

0-500mm/s All In One Laser Cutting Machine Glass Water Cooling

Efficiently Cutting Laser Glass Cutting Machine

with 0-500mm/s Cutting Speed

Product Description:

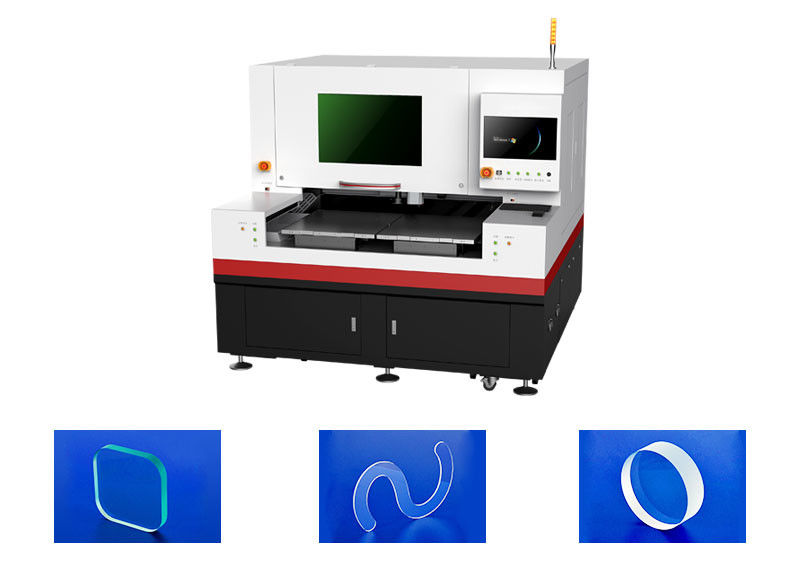

The Glass Cutting & Splitting Machine (All-in-One) is a polygonal glass cutting machine that uses optical glass laser cutting technology to realize high-precision cutting of glass. It is suitable for cutting flat glass of various colors, and the cutting accuracy is up to ±0.01mm. It can cut glass with a thickness of ≤25mm, and the transmission system adopts a rack and pinion structure, which is energy-efficient and has low power consumption. The working environment is maintained at 26℃, and the cutting machine can work reliably and stably in this environment.



  • Product Name: Laser Glass Cutting Machine
  • Working Frequency: 50HZ/60HZ
  • Cutting Area: 400mm*500mm/ 600*700mm/ 600*900mm
  • Key Selling Points: Ultra Fast Picesecond
  • Transmission System: Rack And Pinion
  • Cooling System: Water Cooling
  • Single Table Glass Cutting Machine
  • High Precision Laser Cutting Machine


0-500mm/s All In One Laser Cutting Machine Glass Water Cooling 0



significant attribute
X/Y movement speed max. 500mm/s
Laser type Infrared picosecond
Laser wavelength 1064nm
Laser power 30W / 50W / 75W / 80W / 90W optional
Pulse length ≤10PS
Pulse frequency 1Hz-1000kHz
Working mode Laser XY moving
Cooling method Water-cooled
Focusing mode Cutting head
Focusing spot ≤Ф3um
Cutting speed Adjustable 0-500mm / s
Cutting thickness 0.1-25mm
Minimum cutting edge chipping 6um
X / Y cutting stroke 400mm x500mm (600X700mm 600X900 optional or customize a larger platform)
X/Y positioning accuracy ≤±2μm
X/Y repeat positioning accuracy ≤±1um


0-500mm/s All In One Laser Cutting Machine Glass Water Cooling 1

Applied Range

This equipment is used for all kinds of glass cutting , smart home display cutting, camera lens laser cutting , coated lens cutting , heterosexual glass laser cutting , LCD screen laser cutting, automobile central control glass cutting , mobile phone glass cover cutting , photovoltaic glass cutting and Glass cutting and drilling , etc., can be widely used in high-precision marking and cutting of glass, drilling and cutting of sapphire , marking/drilling / cutting of ceramics , cutting of LCD / OLED display panels , LED wafer dicing and Cutting and other processing fields . The laser equipment automatically locates and cuts by vision , with high speed and high positioning accuracy . When moving, there is no contact between the stator and the mover , so there is no wear and tear for a long time , and basically no maintenance is required .


0-500mm/s All In One Laser Cutting Machine Glass Water Cooling 2


Support and Services

Laser Glass Cutting Machine provides technical support and service to help customers get the most out of their product. Our technical support team is available to answer any questions you may have about the product and help you troubleshoot any issues you may be experiencing. We offer a variety of services to help you make the most of your product, including:

  • Troubleshooting : Our experienced technicians can identify the root cause of any issue and help you find a solution .
  • Training : We offer comprehensive training services to ensure that you get the most out of your product .
  • Software Updates : We offer regular software updates to ensure that your product is up-to-date .
  • Maintenance : We offer regular maintenance services to keep your product running smoothly .

If you need any assistance, please don’t hesitate to contact our technical support team . We’re here to help you get the most out of your Laser Glass Cutting Machine .


0-500mm/s All In One Laser Cutting Machine Glass Water Cooling 3

Packing and Shipping

The Laser Glass Cutting Machine is packaged securely and shipped with care. It is wrapped in foam padding and placed in a box that is reinforced with extra cushioning. The box is sealed with packing tape and labeled with the product name and destination address. The package is shipped with a reliable carrier and insured for the full value of the product.
