Standard Size of 3D Crystal Laser Engraving Machine For Glass And Crystal
Product Parameter
| Laser type | YAG |
| Laser wavelength | 532nm |
| Average life | >20000 hours |
| Frequency | 5000HZ |
| Focal length | 120mm |
| Single max engraving format | 90mm x 90mm |
| Splicing mode max engraving format | 320mm x 400mm x 100mm |
| Accuracy | 40um-60um |
| Max engraving speed | 300000 point / min |
| Repeat positioning | 10-20um |
| Weight | 185KG |
| Cooling | Air cooling |
| Supported file formats | BMP / JPG / DXF / OBJ / WRL / 3DS / STL |
| Support sculpting material | crystal / glass and other transparent material |
| Machine size | 800mm x 1000mm x 1300mm |
| Weight(KG) | 150KG |
| Key Selling Points | Flexible Manufacturing |
| Servo Motor Brand | Panasonic |
PRODUCT DESCRIPTION
CKD Laser is a professional manufacturer of 3d inside crystal laser engraving machine. This 3d inside crystal laser engraving machine model SD-5K mainly handles the interior of crystals and glass materials.
By adding a 3D camera to take the 3D portraits on the human body, and through the laser inner carving technology make beam dots inside of the crystal, 3D crystal engraving machine can create many dots to form 3D human images.
3d inside crystal laser engraving machine uses the imported air cooling laser system, so 3d photo laser crystal machine not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristic, good stability and easy maintain, Suitable for large shopping malls, tourist resort and the place of the big population like that make the personalized portrait production.
Due to the 3D crystal engraving machine's various features and application, it also can be called 2d 3d crystal laser engraving machine.

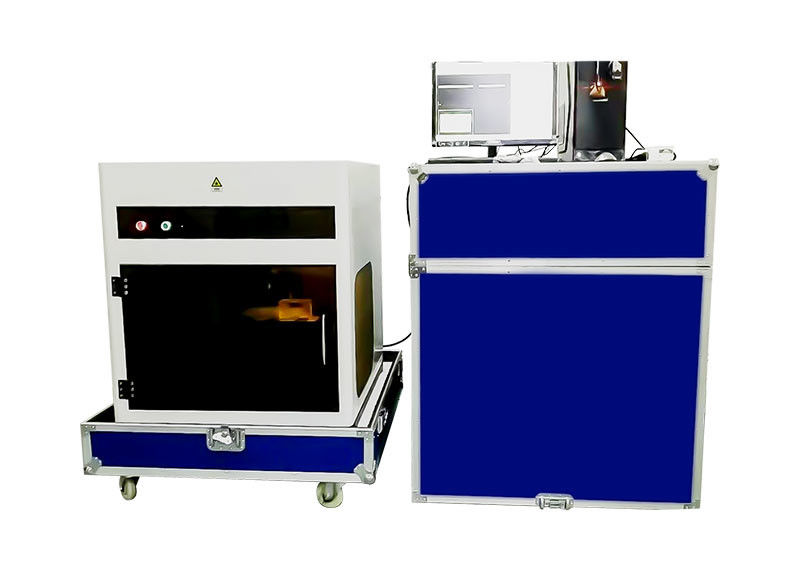

PRODUCT DETAILS

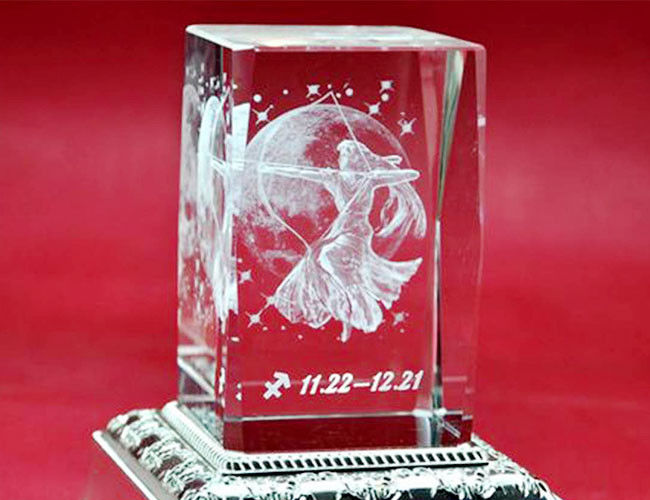

SAMPLES
HOW TO USE LASER ENGRAVER MACHINE
(1) BOOT
1: Turn on the water pump and air pump, and let the water in the laser tube circulate for 3 minutes
2: Power on the host
3: Power on the fan
4: Turn on the laser power supply and use the test light key to detect whether the light is out
5: Open the control software to detect whether the head moves up and down.
6: Put the workpiece, adjust the focal length, thicker material cutting with 63.5mm=2.5 "or 73.5=3" long focal length lens, fine engraving with 50mm=2 "short focal length lens.
7: Operate the computer to transfer files and start engraving.
(2) SHUT DOWN
Turn off the laser power supply, main engine, fan, water pump, and air pump in turn.
Crystal and glass engraving patterns are made using a computer-controlled laser engraving mechanism. In fact, most of the crafts usually seen are not real crystals, but artificial crystals. "Laser" is the most useful tool for "inner carving" of artificial crystal (also known as "crystal glass"). The use of laser engraving technology, the plane or three-dimensional pattern "engraving" in the crystal glass interior.
PACKAGE AND SHIPMENT
| Packaging Details | Sea-Worthy or Air-Worthy Packing for 3d inside crystal laser engraving machine |
| Port | Shenzhen |
| Package Type | wooden |
LEAD TIME
| Quantity(Units) | 1-1 | >1 |
| Lead time(days) | 15 | To be negotiated |
CUSTOMIZATION
| Customized logo | Customized packaging | Graphic Customization |
| Min order:1 | Min order:1 | Min order:1 |
FAQ
Q:What is the warranty of the machine ?
A: CKD Laser have a warranty for 1-2 years.
Q: Are you a factory or trading company?
A: CKD laser is a factory for 15 years. Got import and export license.
Q: How about the quality?
A: High quality best price.
Q: What is your after-sale service?
A: If need it, CKD laser offer door to door service ! We can send engineers to your factory for assembling, adjusting and training.
Q:How do I get technical support after purchasing?
A: CKD laser offer online service in English through Whatsapp, Wechat or Email etc. If need remote operation, we can use TeamViewer software.
Our products are sold all over the world, you can rest assured.
