Water Chiller Portable Jewelry Laser Welding Machine For Jewelry Factory

Water Chiller Portable Jewelry Laser Welding Machine For Jewelry Factory

  • High Light

    Water Chiller Jewelry Laser Welding Machine


    Portable Jewelry Laser Welding Machine


    Portable Laser Welding Jewelry Machine

  • Laser Wavelength
  • Dimension
    830*530*380 MM
  • Laser Pulse Frequency
  • Cooling System
    Water Chiller
  • Product Name
    Desktop Jewelry Laser Welding Machine
  • Control System
    Computer Control
  • Max Single Pulse Energy
  • Laser Source
  • Operating Temperature
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Wooden cases for export
  • Delivery Time
    5-15 days after receive the deposit.
  • Supply Ability
    100 set / Month

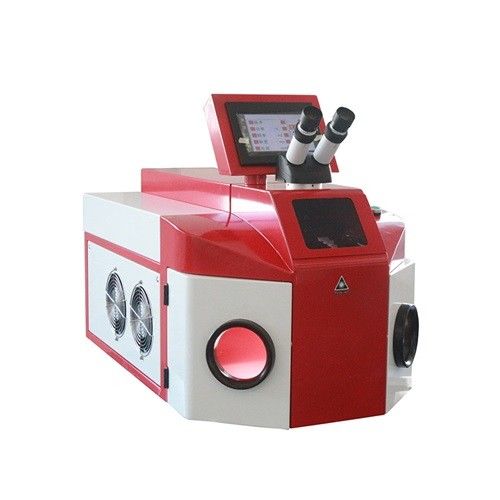

Water Chiller Portable Jewelry Laser Welding Machine For Jewelry Factory

  Water Chiller Type Portable Laser Jewelry Welding Machine for Jewelry factory

Product Description:

Our Shenzhen CKD Jewelry Laser Welding Machine is a powerful and precise tool for jewelry repair. It has a 220V/50Hz power supply and is controlled by a computer system, providing efficient and accurate welding. It is easy to transport and store.


Jewelry Laser Welding Machine is an efficient and reliable welding tool for jewelry processing. Its 220V/50Hz power supply provides the power needed for accurate welding. The computer control system makes it easy to operate, transport and store. Jewelry Laser Welding Machine is an ideal choice for jewelry production, providing accurate and efficient welding.


Water Chiller Portable Jewelry Laser Welding Machine For Jewelry Factory 0


  • Product Name: Jewelry Laser Welding Machine
  • Welding depth: 0.1-3mm
  • Laser Wavelength: 1064nm
  • Laser Power: 200W
  • Laser Type: YAG


26-1 3

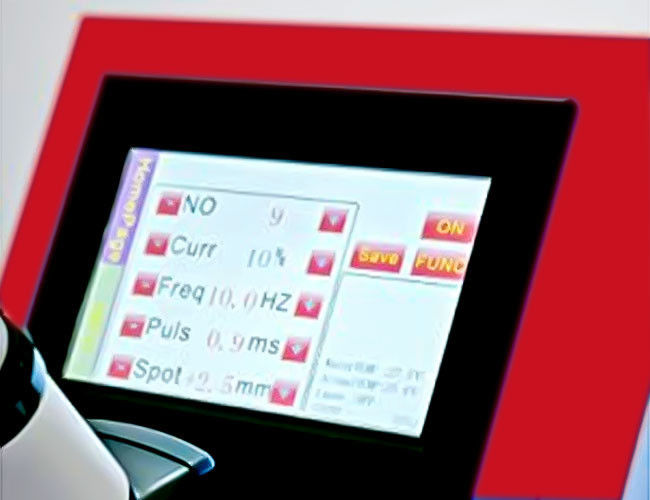

Spot size adjustment

User-friendly adjustment settings,
ranging from-3.0mm to 3mm.
Spot size at minus direction,it is more
suitable for leveling post treatment
welding and thin gold and silver sheet
laser repairing welding.
While at plus direction,more suitable
for deep spot laser welding


Customized Laser Source

The welding system built-in phase
formationit can use with CCD
togetherso the machine does not
connect with CCD separetly

4 2

Patent beam path

Patent beam path and whole machine

Perfect structural design

neither on performance or in size

Built-in water chiller

The machine is equiped with
professional water chiller so
that the machine can work more
time and more stable with big power


Technical Parameters:

Product Name Jewelry Laser Welding Machine
Max Output Power 60 W
Dimension 830*530*380 mm
Laser Wavelength 1064nm
Laser Type YAG
Cooling System Water Cooling
Power Supply 220V/50Hz
Welding depth 0.1-3mm
Max Single Pulse Energy 40J/100J
Weight 103kg

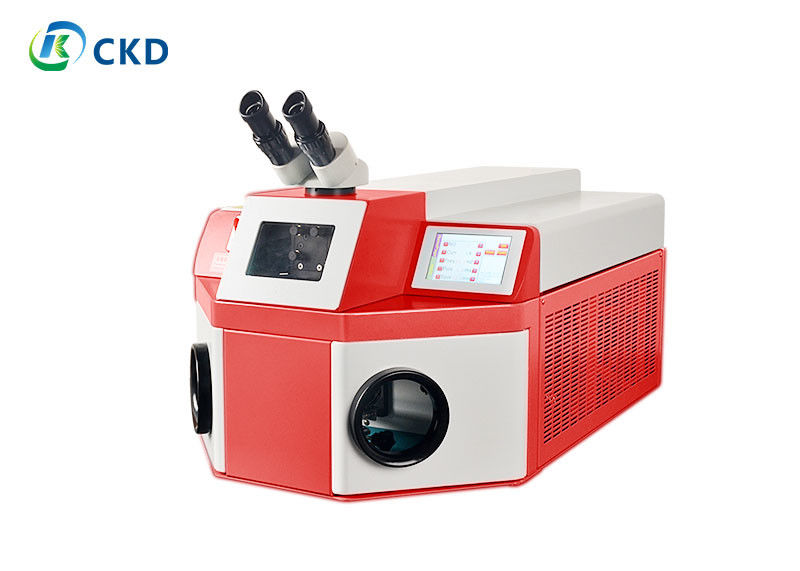

The Jewelry Laser Welding Machine from CKD (model CW-J2) is the perfect tool for those looking for precision and reliability in jewelry welding. The MOQ are 1 set . This model has a Max Output Power of 60 W and a Laser Pulse Width of 0.1-10ms. It also has a Max Single Pulse Energy of 40J/100J. This product is proudly made in China and is the perfect tool for any jewelry workshop.

Water Chiller Portable Jewelry Laser Welding Machine For Jewelry Factory 5


Packing and Shipping:

Packaging and Shipping

The Jewelry Laser welding Machine will be securely packaged for shipment and will include the following components:

  • Welding Machine
  • User Manual
  • Cleaning Cloth

The package will be shipped via an insured carrier and tracking information will be provided upon shipment. Delivery time will vary depending on the destination.


Water Chiller Portable Jewelry Laser Welding Machine For Jewelry Factory 6



Q1: Could I visit your factory?

A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from bao'an International airport to our factory.


Q2: How many years do you do this business?

A2: From 2008.


Q3: Does your factory have the design & development capacities, we need customized products?

A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.

We can make customized products especially for you; Please kindly contact us for more details.


Q4: What is payment terms?

A4: 100% T/T advanced.


Q5: About shiping?

A5: 3-10 days after payment for standard products, please consult our sales for customized products.


Q6: How about your after service?

A6: Our engineers who has long time professional experience and sales will help you within 24h.


Q7: Do you have patents or core technology?

A7: Yes, for details, please contact our sales.


Q8: Where have you sold your products?

A8: Europe, Americas, Africa, and Asia.
