Metal 3 Chuck Sheet And Tube Laser Cutting Machine 1500W 3000W With Small Diameter

Metal 3 Chuck Sheet And Tube Laser Cutting Machine 1500W 3000W With Small Diameter

  • High Light

    3 Chuck Sheet And Tube Laser Cutting Machine


    Sheet And Tube Laser Cutting Machine 1500W


    Sheet And Tube Laser Cutting Machine 3000W

  • Name
    Sheet And Tube Laser Cutting Machine
  • Laser Power
  • Laser Wavelength
  • Min. Line
  • Max. Range Speed
  • Max. Travel Of Y Axis
  • Place of Origin
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 Sets Per Month

Metal 3 Chuck Sheet And Tube Laser Cutting Machine 1500W 3000W With Small Diameter

Metal 3 Chuck Pipe Cutting Laser Tube Sheet Machine 1500w with Small Diameter


Product descriptions from the supplier

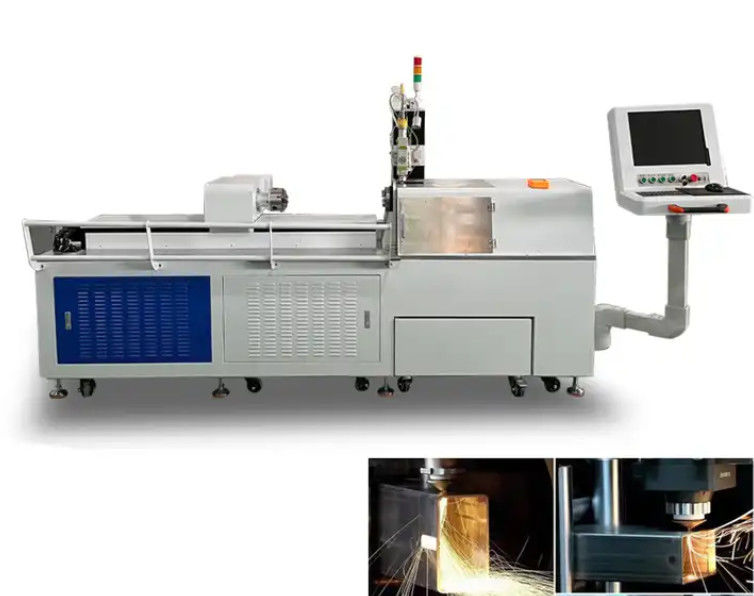

Real shots of the machine
high-speed laser pipe cutting machine
1000W 1500W 2000W 3000W
High-speed laser pipe cutting machine, also known as pipe laser cutting machine, is used to cut various special-shaped metal pipes such as round pipes, square pipes, and triangular pipes. The pipe processing range is 6000mm* φ6~115mm. The automatic high-speed laser pipe cutting machine is equipped with a fiber laser device, and the laser power is from 1000W to 3000W.Fast and precise cutting, short tail material, high precision, pneumatic chuck, fast clamping response, special-shaped tube cutting worry-free.


Type CC-GD9
Laser power 1500W/2000W/3000W
Laser medium MAX. RAYCUS ,IPG etc.
Laser wavelength 1070nm
Min. line ≤0.15mm
Max. Range speed 30~50m/min
Max. Travel of Y axis 500~1000mm
Max. Round tube cutting area diameter: 50~100mm
Axial positioning accuracy of the bench ≤±0.03mm/m
bench repeated positioning accuracy ≤±0.0mm/m
304 stainless steel thickness cutting range 0.5--4mm
Power supply requirements 380V/50HZ
Total power supply protection level IP54
Machine installed capacity 18KVA
Metal 3 Chuck Sheet And Tube Laser Cutting Machine 1500W 3000W With Small Diameter 0

Application field

Metal cutting, die cutting board processing, electrical switch manufacturing, aerospace, food machinery, textile machinery,construction machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobiles, household appliance manufacturing, tool processing, IT manufacturing, petroleum machinery manufacturing, Food machinery, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries.

Product Advantages

Easy to operate, intelligent and efficient

After importing the model, automatically adjust the width of the trough, the height of the center of the pipe, the height of the drag wheel, and the position of the stopper.

High precision Follow-up support

The follow-up material feeding is unobstructed to ensure the cutting accuracy of the pipe

Automatic recognition function

With displacement sensor detection, automatically measure the width after clamping, adjust the feeding direction


Auto adjust the width of the materialtrough, pipe center height, materialheight,material position


The material feeding is unobstructed to ensure the accuracy of the pipe


With displacement sensor detection auto width measurement after clamping adjust the feeding direction
Metal 3 Chuck Sheet And Tube Laser Cutting Machine 1500W 3000W With Small Diameter 1

Machine operation process:

① Put the pipes into the storage area, the feeding machine adopts an automatic arrangement method, and the pipes in the storage area are automatically sent to the discharge area by the transmission mechanism in turn.
② The limit device in the discharge area will ensure the orderly discharge of the pipes, and the handwheel device is required to adjust the limit height to change the pipe diameter. ③ The pipe is automatically fed into the cutting area through the feeding mechanism for automatic cutting.
④ The cut sample is automatically slid into the bottom trolley through the unloading table to complete the cutting .


Q1: Can you produce the machine faster ?
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.

Q2: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions andsuggestions.

Q3:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?

Q4: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you haveany questions, we can also arrange for a maintenance person to come to commission and install it.

Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life longafter-sales service. So any doubts, just let us know, we will give you solutions.

Q6:How can I get some samples?
We are honored to offer you samples.
