Linear Motor Fiber Laser Cutting Machine For 2mm Brass Cutting 1500w

Linear Motor Fiber Laser Cutting Machine For 2mm Brass Cutting 1500w

  • Name
    Linear Motor Laser Cutting Machine
  • Cutting Area
  • Configuration
  • Drive Type
    Linear Motor
  • Power Requirement
    220V 50-60khz1PH
  • Laser Wavelength
  • Place of Origin
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
  • Price
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 Sets Per Month

Linear Motor Fiber Laser Cutting Machine For 2mm Brass Cutting 1500w

Linear Motor Fiber Laser Cutting Machine

For 2mm Brass Cutting 1500w



CKD-1390 fiber laser cutting machine is mainly for high-speed and high-precision processing of thin metal plate. With mature technology, the whole machine runs stable and is of good cutting efficiency. Since the floor space is about 1850*1400mm, so it is very suitable for a small metal processing factory. Whats more, compared with the traditional machine bed, its high cutting efficiency increased 20%, and it is suitable for cutting all kinds of metal materials.



Machine Technical Parameters



Main Collocation
Articles Specification Brand
Linear Motor ULMAC3, ULMCC2 XL
Grating ruler reading head Resolution 0.5μm/1μm(option) Spain
Driver SCFD-4D52AEB2, SCFD-0062AEB2 Dynahead
Z axis screw red module XL-80h-s100 XL
Cutting head BT230 Raytools
Precision linear guide - Hiwin
Marble 1800*1350*200 Shangdong
Dust cover Standard Raytools
Main parameters
Working area 600*600mm
Maximum acceleration 2-5G
X-axis rapid movement speed 60m/min
X-axis effective stroke 600mm
X-axis positioning accuracy ±0.01mm
X repeat accuracy ±0.004mm
Y-axis fast moving speed 60m/min
Y-axis effective stroke 600mm
Y-axis positioning accuracy ±0.01mm
Y repeat accuracy ±0.004mm
Z axis travel 100mm
Working ambiance
Working temperature -10℃·45℃
Relative humidity <90% No condensation
Surroundings Ventilation, no major vibration
Voltage 3x380V±10% 220V±10%
Power frequency 50HZ



Machine Applications


The machine is used to cut various sheet metal, mainly for stainless steel, carbon steel, manganese steel, copper, aluminum, galvanized sheet, all kinds of alloy plates, rare metals, and other materials.

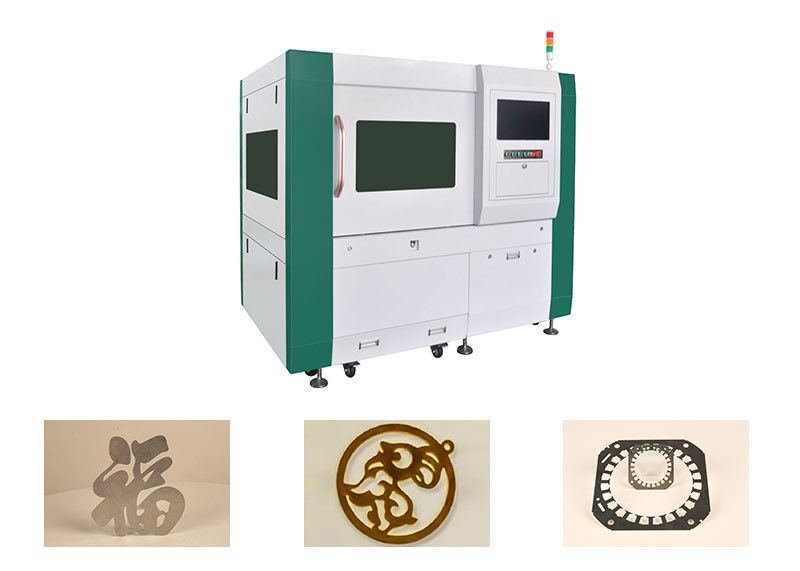

Linear Motor Fiber Laser Cutting Machine For 2mm Brass Cutting 1500w 0


Application industries: sheet metal, jewelry, glasses, machinery and equipment, lighting, kitchenware, mobile, digital products, electronic components, watches and clocks, computer components, instrumentation, precision instruments, metal molds, car parts, craft gifts, and other industries.


Machine Advantages

·The machine base adopts marble and the cross beam uses extruded aluminum, so the machine mainframe is of good rigidity, high strength, and good acceleration, thus effectively prevent the machine structural deformation.

·US AheadTech laser cutting CNC system;

·Full closed-loop feedback, grating ruler ensures processing precision;

·EtherCAT bus signal transmission greatly enhanced the machine flexibility and scalability, so it is easy to interconnect with other machines.



Cutting Control System
1 . Advanced technical industrial computer , with professional fiber cutting control system , can cut metal tube and pipe well .
High cutting speed and perfect cutting edge , smooth plane and exquisite texture .
2 . Our engineers would save the metal cutting parameters of various technologies in the computer before delivering .

Laser Device
We applied famous brand laser device MAX/Raycus/IPG (optional ) . The laser device is in high technical and good stability which make the laser cutting in high performance and the good good cutting effect .

Laser Cutting Head
We applied with the famous brand laser cutting head.WSX/Raycus (optional) in good cutting effect and the performance
1 . Optimized design structure : modularization , easy maintenance , and reduced downtime .
2 . Multiple protective lenses : efficient protection of collimating focusing lenses.
3 . Durable and durable : 2-way optical water cooling , effectively extending continuous working time .

Servo Motor Drive
Y axis : Double sets , famous brand servo motors and drivers .
X axis : Famous brand Servo motor and driver
Our X Y axis structure increases machine speed and precision and more stable for machine working .
Z axis : Famous brand Servo motor and driver

Rack and Pinion Rail
The rack and the pinion rail is in high quality , connect with the machine to attach the materials cutting .
Make the machine in high stability and the high cutting efficieney .

Water Chiller
Automatically adjust the temperature according to different working environment, no need to change settings parameters.
Reduce the temperature of the laser source and the laser head through water circulation, protecting these two main parts.
