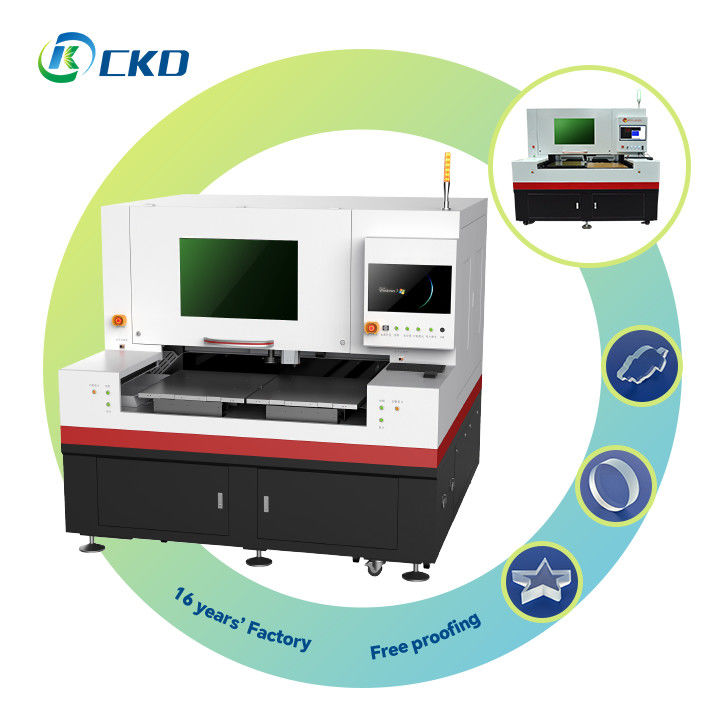

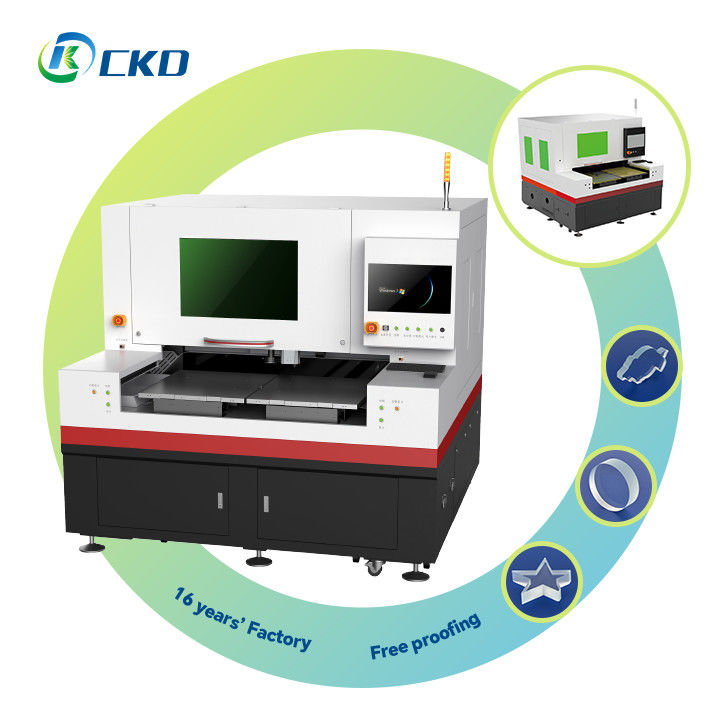

Precision Infrared Picosecond Laser Glass Cutter 1064nm Wavelength 0.03~25mm Cutting

Precision Infrared Picosecond Laser Glass Cutter 1064nm Wavelength 0.03~25mm Cutting

  • High Light

    1064nm Wavelength Laser Glass Cutter

    ,

    Precision Infrared Laser Glass Cutter

    ,

    25mm Laser Glass Cutter

  • Chipping
    ≤5μm
  • Laser Type
    Infrared Picosecond
  • Laser Wavelength
    1064nm
  • Cutting Thickness
    0.03~25mm
  • Cutting Accuracy
    ±0.01mm
  • Splitting Laser Source Wavelength
    10.6µm
  • Voltage , Powe
    <8KW , AC220V
  • Pulse Frequency
    1Hz - 1000kHz
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO CE
  • Model Number
    CKD-DP6070C
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden vacuum packaging
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

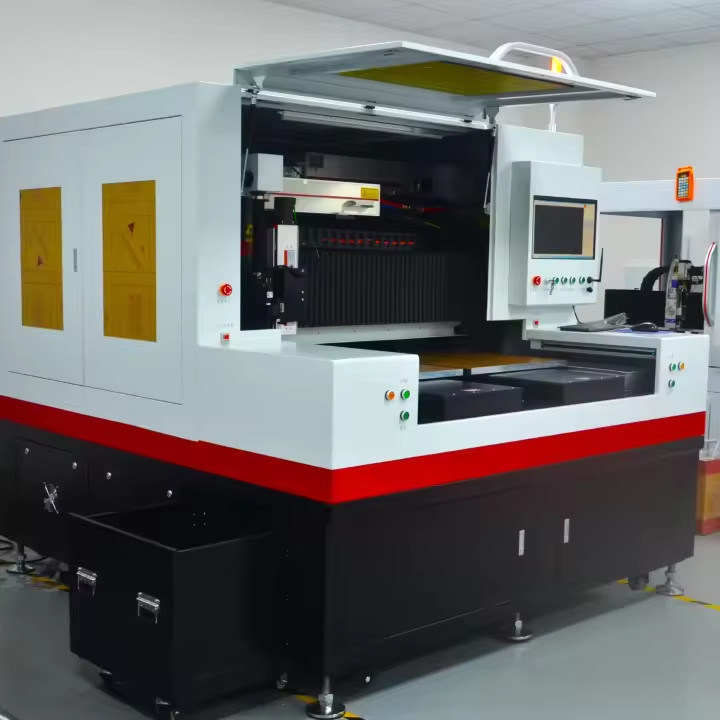

Precision Infrared Picosecond Laser Glass Cutter 1064nm Wavelength 0.03~25mm Cutting



Product Description:CKD E Catalog2310.pdf

  • This state-of-the-art picosecond laser cutting machine has been designed to provide high-precision and efficient glass cutting. It features a self-developed glass cutting head that has been equipped with fully imported lenses. These lenses ensure that the laser beam is of a fine quality and that the focal depth is long. This innovative design makes it possible for both integrated and separate cutting and breaking processes to be carried out, thus allowing for a versatile approach to meet different production demands.
  • The machine's high-end linear motors for the X and Y axes, combined with the precision of German-made 0.1um digital grating scales, ensures accurate and smooth motion control. The standard PSO (Position Synchronized Output) function guarantees uniform control of the laser spot spacing, which is crucial to obtain consistent and high-quality cuts.
  • In addition to precision, the machine features a precise CCD positioning system and telecentric optical lenses. These enable accurate recognition of circular and cross marks, which enhances the precision of cutting and reduces errors. The use of Schneider Electric components and a Mean Well power supply ensure a reliable and stable operation, highlighting the machine's quality construction and durability.
  • The laser cutting machine can cut single pieces of glass up to 19mm in thickness, making it an ideal choice for various industrial applications. Whether in the automotive or architectural glass industry, this high-power picosecond laser cutting machine delivers superior cutting performance, efficiency, and reliability. The motor platform and optical platform base are crafted from natural marble. This provides exceptional stability and enhanced precision during operation.
    Precision Infrared Picosecond Laser Glass Cutter 1064nm Wavelength 0.03~25mm Cutting 0



Features:

  • Our cutting-edge technology sets new standards in the glass cutting industry by offering exceptional performance and numerous benefits.
  • This state-of-the-art cutting system delivers a high cutting quality, ensuring smooth, precise edges without tapering.
  • One of the standout features is the absence of burrs, meaning the cut edges are clean and smooth, requiring no additional deburring operations.
  • The process also minimizes chipping, ensuring that the material's edges remain intact and flawless, which is particularly crucial for delicate applications.
  • Our technology is designed to be cost-effective, with low operational costs making it an economical choice for any business.
  • The high yield rates enable more material to be processed within a given timeframe, significantly boosting production efficiency.
  • Additionally, the system uses minimal consumables and is highly energy-efficient, contributing to lower overall production costs and a smaller environmental footprint.
  • The cutting system is capable of high-speed cutting of irregular shapes, maintaining precision and quality even with complex geometries.
  • This versatility makes it suitable for a wide range of applications across different industries.
  • Furthermore, the technology is environmentally friendly, producing no pollution, dust, or wastewater during the cutting process.
  • This ensures a clean and safe working environment and aligns with sustainable manufacturing practices.
  • In summary, our cutting technology offers unparalleled quality and efficiency.
  • It guarantees high-quality cuts without taper or burrs, minimal chipping, low operational costs, high yield rates, low consumables and energy consumption, and high-speed cutting of irregular shapes.
  • Additionally, it ensures an environmentally friendly process with no pollution, dust, or wastewater production.

Precision Infrared Picosecond Laser Glass Cutter 1064nm Wavelength 0.03~25mm Cutting 1



Technical Parameters:

Specification Description
Cooling Method Water cooling
Pulse Width <10ps
Pulse Frequency 1Hz - 1000kHz
Wavelength 1064nm
Beam Quality M^2 < 1.2
Power 50W (options: 10W, 20W, 30W, 60W, 80W, etc.)
Laser Type Infrared picosecond pulse laser
Drive Motor XY Linear Motor + Optical Grating Scale
Positioning Accuracy ±2um
Repeatability ±1.5um
Acceleration 1G
Linear Speed Up to 1000mm/s
Cutting Speed Adjustable from 0-500mm/s
Cutting Thickness Ultra-clear glass single cut ≤19mm, Blue glass double cut ≤19mm
Minimum Cutting Burr ≤5um
Cutting Precision ±0.01mm
X/Y Cutting Range 610×700mm
Laser Type RFC02 (Radio Frequency CO2)
Cooling Method Water cooling
Wavelength 10.6μm
Power 150W (options: 250W/350W)
Pulse Frequency 1-100kHz
Weight Approximately 3500KG / 40000KG
Machine Dimensions (Option 1) Length 2550mm x Width 2080mm x Height 1960mm
Machine Dimensions (Option 2) Length 2150mm x Width 2080mm x Height 1960mm
Voltage, Power <8KW, AC220V

Applications:

Application Industry

There are various industries where glass plays a crucial role as a material. Different types of glass are used according to their respective purposes. Some of these industries include the glass processing industry, biomedical industry, real estate industry, automobile industry, communication media industry, home appliance industry, and new energy industry.

Types of Glass Used

There are different types of glass used in various industries. For instance, optic, UTG, willow, and brittle biomedical glass are utilized in the biomedical industry. In the real estate industry, architectural decoration, and bathroom glass are among the common types of glass used. The automobile industry primarily utilizes car glass and instrumentation panel glass. The communication media industry uses mobile, watch sapphire cover, camera, and CCTV lens glass. Home appliance glass panel and lighting glass are common in the home appliance industry. Lastly, photovoltaic glass is a notable glass type utilized in the new energy industry.

Glass Processing Industry

The glass processing industry is concerned with the manufacture of various types of glass utilized in different domains. This industry is responsible for processing raw materials, designing, and manufacturing of finished products, such as laminated glass, tempered glass, and insulated glass.

Optic/UTG/Willow/Brittle Biomedical Glass

Optic, UTG, willow, and brittle biomedical glass have various applications in the biomedical industry. UTG glass is popularly utilized in the medical sector for its scratch-resistant and shatter-resistant features. Optic glass is used in areas where high precision is required in optical instruments. Willow glass is used in flexible and large displays. Lastly, brittle glass is utilized in applications such as drug delivery and needle assemblages.

New Energy Industry

The new energy industry utilizes photovoltaic glass, which is designed to be utilized in photovoltaic modules. These modules can capture and convert solar energy into electricity, which is then used for various applications. Photovoltaic glass is developed to be highly efficient in capturing solar power while also being durable and long-lasting.



Customization:

Our customizable laser glass cutting machines meet unique client needs. We offer tailored design and functionality for precision cutting. Whether for brand alignment or enhanced productivity, our experts modify specs and integrate tech to fit your business. We support with updates, keeping your machine innovative and adaptable. Choose our bespoke solution for cutting-edge performance.



Support and Services:

The Laser Glass Cutting Machine is a precision tool designed to cut glass with a high degree of accuracy and speed. Our technical support team is available to assist you with any questions or issues you may have with your machine. Our services include:

  • Installation and setup assistance
  • Training on machine operation and maintenance
  • Troubleshooting and repair services
  • Regular maintenance and calibration services to ensure optimal performance
  • Software updates and upgrades to ensure compatibility with the latest technology
  • Replacement parts and accessories

We are committed to providing excellent customer service and support to ensure your satisfaction with our Laser Glass Cutting Machine.



Packing and Shipping:

Product Packaging:

  • The Laser Glass Cutting Machine will be packaged securely in a wooden crate to ensure safe transport and delivery.
  • All necessary accessories and tools will also be included in the package.
  • A user manual and installation guide will be included to assist with setup and operation.

Shipping:

  • The Laser Glass Cutting Machine will be shipped via a reliable courier service to the customer's designated address.
  • The shipping cost will be calculated based on the customer's location and the weight and dimensions of the package.
  • Customers will receive a tracking number to monitor the delivery status of their order.
  • Delivery times may vary depending on the customer's location and any unforeseen delays during transit.


FAQ:

Q1: What is the brand name of this laser glass cutting machine?

A1: The brand name of this machine is CKD.

Q2: What is the model number of this laser glass cutting machine?

A2: The model number of this machine is CKD-DP6070C.

Q3: Where is this laser glass cutting machine made?

A3: This machine is made in China.

Q4: Does this laser glass cutting machine have any certifications?

A4: Yes, this machine is certified with ISO.

Q5: What is the minimum order quantity for this laser glass cutting machine?

A5: The minimum order quantity for this machine is 1. However, the price is negotiated based on the quantity ordered.

Q6: How is this laser glass cutting machine packaged for shipment?

A6: This machine is packaged with wooden vacuum packaging for safe transport.

Q7: What is the delivery time for this laser glass cutting machine?

A7: The delivery time for this machine is 15-45 days, depending on the quantity ordered and the destination.

Q8: What are the payment terms for this laser glass cutting machine?

A8: The payment terms for this machine are L/C and T/T.

Q9: What is the supply ability for this laser glass cutting machine?

A9: The supply ability for this machine is 50 sets per month.
