Speed 1064nm Laser Glass Cutting Machine Precision Splitting Power 150W Linear Guide TPI

Speed 1064nm Laser Glass Cutting Machine Precision Splitting Power 150W Linear Guide TPI

  • High Light

    Linear Guide Laser Glass Cutting Machine

    ,

    Precision Splitting Laser Glass Cutting Machine

    ,

    150W Laser Glass Cutting Machine

  • Splitting Laser Source Power
    150W (options: 250W/350W)
  • Dimension
    2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm
  • Pulse Width
    <10ps
  • Splitting Laser Source Wavelength
    10.6µm
  • Linear Speed
    Up To 1000mm/s
  • Pulse Frequency
    1Hz - 1000kHz
  • Linear Guide Brand
    TPI
  • Laser Wavelength
    1064nm
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO CE
  • Model Number
    CKD-DP6070C
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden vacuum packaging
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Speed 1064nm Laser Glass Cutting Machine Precision Splitting Power 150W Linear Guide TPI

Product Description:

This state-of-the-art picosecond laser cutting machine is designed to provide optimal precision and efficiency in glass cutting applications. Equipped with a self-developed glass cutting head with fully imported lenses, this machine ensures a fine laser beam and long focal depth. It facilitates both integrated and separate cutting and breaking processes for versatile production requirements.

The machine features high-end linear motors for precise motion control, accompanied by German-made 0.1um digital grating scales. With the PSO function, you can ensure uniform control of laser spot spacing, essential to achieve consistent and high-quality cuts for maximum productivity and quality.

With a precise CCD positioning system and telecentric optical lenses, this machine offers accurate recognition of circular and cross marks. The use of Schneider Electric components and a Mean Well power supply ensures reliable and stable operation, reflecting the machine's high-quality construction and durability.

Capable of cutting single glass pieces up to 19mm thick, this laser cutting machine satisfies the demands of various industrial applications, from automotive to architectural glass. The base of the motor platform and optical platform is made from natural marble, providing exceptional stability and enhanced precision during operation.

Overall, this powerful picosecond laser cutting machine delivers superior cutting performance, efficiency, and reliability, making it an ideal choice for high-precision glass cutting tasks in various industries.

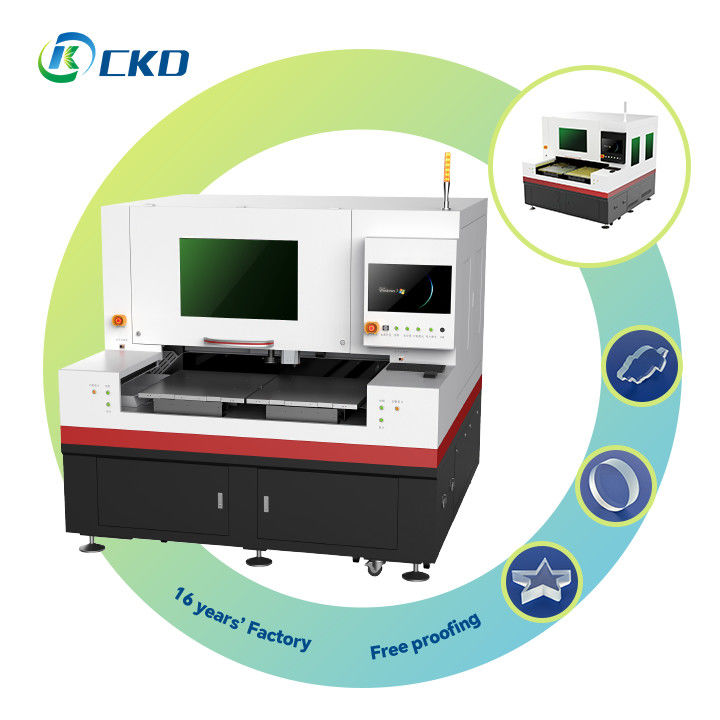

Speed 1064nm Laser Glass Cutting Machine Precision Splitting Power 150W Linear Guide TPI 0

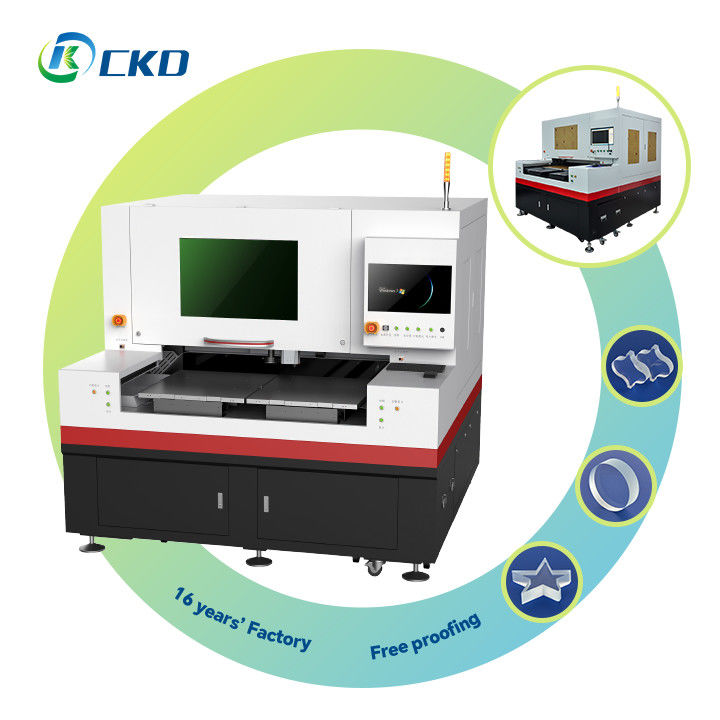

Speed 1064nm Laser Glass Cutting Machine Precision Splitting Power 150W Linear Guide TPI 1

Features:

Unmatched Quality and Efficiency in Glass Cutting Industry

Our cutting-edge technology has set new standards in the glass cutting industry, providing exceptional performance and numerous benefits. Our state-of-the-art cutting system delivers high-quality cuts, ensuring smooth and precise edges without any tapering. This means the cut surfaces stay perfectly parallel, eliminating any narrowing along the edges.

One of the most notable features of our technology is the absence of burrs, ensuring clean and smooth cut edges, eliminating the need for any additional deburring operations. This feature not only saves time but reduces labor costs as well. The process also guarantees minimal chipping, ensuring that the material's edges remain intact and flawless, which is particularly crucial for delicate applications.

Our cutting technology is designed to be cost-effective, with low operational costs, making it an economical choice for any business. The high yield rates enable more material to be processed in a given timeframe, significantly boosting production efficiency. Additionally, the system uses minimal consumables, is highly energy-efficient, contributing to lower overall production costs, and a smaller environmental footprint.

The cutting system can perform high-speed cutting of irregular shapes, maintaining quality and precision even with complex geometries. This versatility makes it suitable for a wide range of applications across different industries. Furthermore, the technology is eco-friendly, producing no pollution, dust, or wastewater during the cutting process. This ensures a clean and safe working environment, aligning with sustainable manufacturing practices.

In summary, our cutting technology offers unparalleled quality and efficiency. It guarantees high-quality cuts without taper or burrs, minimal chipping, low operational costs, high-yield rates, minimal consumables and energy consumption, and high-speed cutting of irregular shapes. Additionally, it ensures an eco-friendly process with no pollution, dust, or wastewater production.



Technical Parameters:

Specification Description
Cooling Method Water cooling
Pulse Width <10ps
Pulse Frequency 1Hz - 1000kHz
Wavelength 1064nm
Beam Quality M^2 < 1.2
Power 50W (options: 10W, 20W, 30W, 60W, 80W, etc.)
Laser Type Infrared picosecond pulse laser
Drive Motor XY Linear Motor + Optical Grating Scale
Positioning Accuracy ±2um
Repeatability ±1.5um
Acceleration 1G
Linear Speed Up to 1000mm/s
Cutting Speed Adjustable from 0-500mm/s
Cutting Thickness Ultra-clear glass single cut ≤19mm, Blue glass double cut ≤19mm
Minimum Cutting Burr ≤5um
Cutting Precision ±0.01mm
X/Y Cutting Range 610×700mm
Laser Type RFC02 (Radio Frequency CO2)
Cooling Method Water cooling
Wavelength 10.6μm
Power 150W (options: 250W/350W)
Pulse Frequency 1-100kHz
Weight Approximately 3500KG / 40000KG
Machine Dimensions (Option 1) Length 2550mm x Width 2080mm x Height 1960mm
Machine Dimensions (Option 2) Length 2150mm x Width 2080mm x Height 1960mm
Voltage, Power <8KW, AC220V


Applications:

Application Industry

There are many different industries that utilize glass in a variety of ways. Some of these industries include:

Types of Glass Used

Within these industries, there are different types of glass that are utilized. Some of the most common types of glass used include optic, ultra-thin glass, willow glass, and brittle biomedical glass.

Glass Processing Industry

There is also a glass processing industry that works to create and manufacture these different types of glass. This industry is responsible for shaping, cutting, and processing the glass so that it can be used in various applications.

Optic/UTG/Willow/Brittle Biomedical Glass

Optic glass, UTG (ultra-thin glass), willow glass, and brittle biomedical glass are all types of glass that are utilized in the manufacturing and processing industry. Optic glass is often used in the production of lenses and other optical devices. UTG is a thinner and more flexible type of glass that is used in applications like foldable smartphones and wearable devices. Willow glass is a flexible type of glass that can be bent and rolled, making it ideal for use in curved displays and other applications. Brittle biomedical glass is a specialized type of glass that is used in medical applications like implants and surgical instruments.

Real Estate Industry

In the real estate industry, glass is often used for architectural decoration and bathroom fixtures. Glass panels can be used to create a modern and sleek look in homes and other buildings.

Automobile Industry

In the automobile industry, glass is utilized for car windows and instrumentation panel glass. These types of glass are designed to be durable and resistant to damage.

Communication Media Industry

Within the communication media industry, glass is used for a variety of purposes. Mobile and watch sapphire covers are often made from glass, as are camera and CCTV lens glass. These types of glass are designed to protect the devices they cover while still allowing for clear visibility.

Home Appliance Industry

The home appliance industry also utilizes glass in various ways. Glass panels are often used for home appliance displays, and lighting glass can be used to create unique and modern light fixtures.

New Energy Industry

Finally, the new energy industry utilizes glass in the production of photovoltaic glass. This specialized type of glass is used in solar panels, helping to convert sunlight into energy.



Customization:

Looking for a reliable and efficient optical glass Laser Cutting Machine? Look no further than CKD’s CKD-DP6070C model. Made in China and certified with ISO, our High Precision Laser Cutting Machine is the perfect fit for your glass cutting needs.

Our Glass Cutting And Splitting Machine (All-in-One) is equipped with HTI Control System which ensures higher accuracy and faster response time. The Splitting laser source Wavelength is 10.6µm, making it ideal for cutting and splitting polygonal glass with a thickness of 0.03~25mm.

With CKD, you have the option to customize your order according to your specific needs. Our minimum order quantity is 1 and the price is negotiated based on your order quantity. The product will be delivered in wooden vacuum packaging which guarantees safety during transportation. Delivery time is estimated to be between 15-45 days, and we accept payment through L/C and T/T. We have a supply ability of 50 sets per month so you can be sure that your order will be processed in a timely manner.



Support and Services:

The Laser Glass Cutting Machine is a high-tech product that requires specialized technical support and services. Our team of experts is available to provide assistance with installation, operation, maintenance, and troubleshooting of the machine. Technical support services include:

  • Phone and email support for all technical issues
  • On-site installation and training services
  • Regular maintenance and calibration services to ensure optimal performance
  • Remote diagnostics and troubleshooting
  • Product upgrades and software updates

We understand the importance of keeping your machine running smoothly and efficiently, which is why we offer comprehensive technical support and services to ensure your satisfaction with our product. Contact us today to learn more about our technical support and services for the Laser Glass Cutting Machine.



Packing and Shipping:

Product Packaging:

  • The laser glass cutting machine will be securely packed in a wooden crate to ensure safe transportation.
  • All necessary accessories and user manual will be included in the package.
  • The package will be labeled with the product name, model number, and shipping information.

Shipping:

  • The laser glass cutting machine will be shipped via a reliable courier service.
  • Shipping costs will vary depending on the destination and shipping method chosen.
  • Customers will be provided with a tracking number to monitor the delivery status of their package.

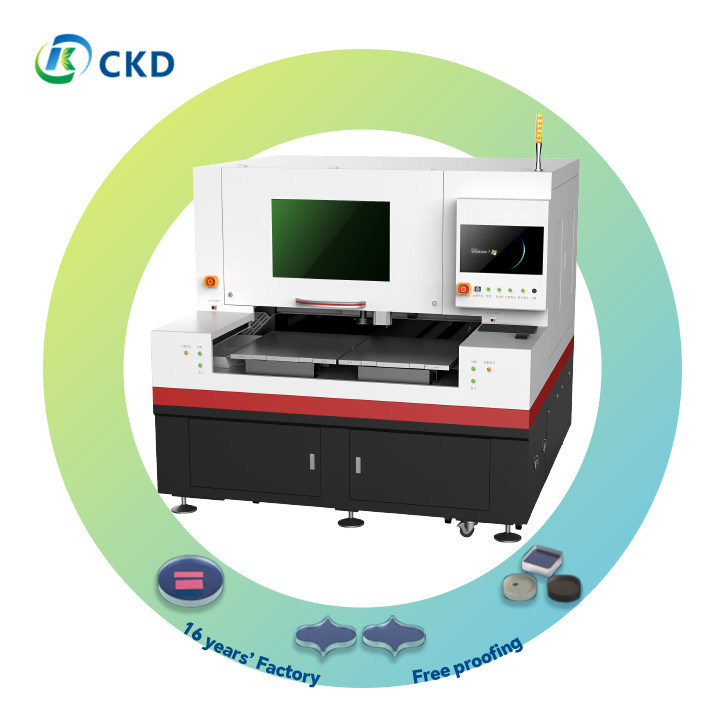

Speed 1064nm Laser Glass Cutting Machine Precision Splitting Power 150W Linear Guide TPI 2

FAQ:

Q: What is the brand name of this laser glass cutting machine?

A: The brand name of this laser glass cutting machine is CKD.

Q: What is the model number of this laser glass cutting machine?

A: The model number of this laser glass cutting machine is CKD-DP6070C.

Q: Where is this laser glass cutting machine manufactured?

A: This laser glass cutting machine is manufactured in China.

Q: Does this laser glass cutting machine come with any certification?

A: Yes, this laser glass cutting machine comes with ISO certification.

Q: What is the minimum order quantity for this laser glass cutting machine?

A: The minimum order quantity for this laser glass cutting machine is 1.

Q: What is the price of this laser glass cutting machine?

A: The price of this laser glass cutting machine is negotiated.

Q: How is this laser glass cutting machine packaged?

A: This laser glass cutting machine is packaged in wooden vacuum packaging.

Q: What is the delivery time for this laser glass cutting machine?

A: The delivery time for this laser glass cutting machine is between 15-45 days.

Q: What are the payment terms for this laser glass cutting machine?

A: The payment terms for this laser glass cutting machine are L/C and T/T.

Q: What is the supply ability of this laser glass cutting machine?

A: The supply ability of this laser glass cutting machine is 50 sets per month.
