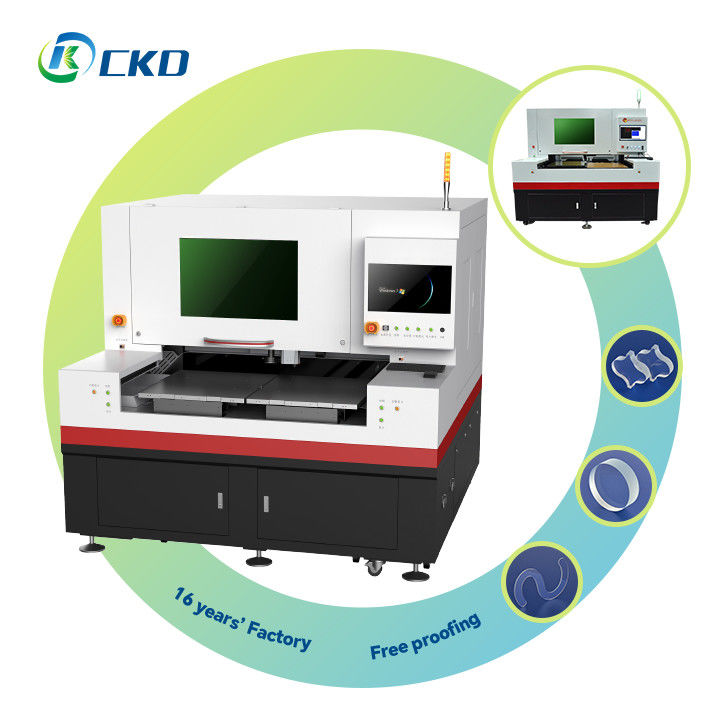

Precision HTI Controlled Glass Laser Cutting Machine With 150W Splitting Laser Source Power.

Precision HTI Controlled Glass Laser Cutting Machine With 150W Splitting Laser Source Power.

  • High Light

    Precision Laser Glass Cutting Machine

    ,

    HTI Controlled Laser Glass Cutting Machine

    ,

    150W Laser Glass Cutting Machine

  • Voltage , Powe
    <8KW , AC220V
  • Splitting Laser Source Power
    150W (options: 250W/350W)
  • Working Frequency
    50HZ/60HZ
  • Control System
    HTI Control
  • Working Voltage
    220V
  • Drive Motor
    XY Linear Motor + Grating Ruler
  • Laser Power
    30/50/60/75/80/90w
  • Linear Guide Brand
    TPI
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO
  • Model Number
    CKD-DP6070C
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden vacuum packaging
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Precision HTI Controlled Glass Laser Cutting Machine With 150W Splitting Laser Source Power.

Precision HTI Controlled Glass Laser Cutting Machine with 150W Splitting Laser Source Power.

Product Description:CKD E Catalog2310.pdf

  1. High-Power Picosecond Laser Cutting Machine for Precision Glass Cutting
  2. When it comes to precision and efficiency in glass cutting applications, the advanced high-power picosecond laser cutting machine is the perfect solution. This machine is equipped with a self-developed glass cutting head that features fully imported lenses, ensuring a fine laser beam and a long focal depth. With this design, both integrated and separate cutting and breaking processes can be achieved, making it highly versatile and suitable for various production requirements.
  3. The machine is equipped with high-end linear motors for the X and Y axes, along with German-made 0.1um digital grating scales. This ensures exceptionally precise and smooth motion control. The standard PSO (Position Synchronized Output) function enables uniform control of laser spot spacing, which is critical for consistent and high-quality cuts.
  4. Precision is further enhanced by the accurate recognition of circular and cross marks through the use of a precise CCD positioning system and telecentric optical lenses. The machine is constructed with high-quality Schneider Electric components and a Mean Well power supply, ensuring reliable and stable operation.
  5. With the ability to cut single glass pieces up to 19mm in thickness, this laser cutting machine can meet the demands of various industrial applications, from automotive to architectural glass. The marble base of its motor platform and optical platform provides exceptional stability and enhanced precision during operation, making it a reliable choice for high-precision glass cutting.
  6. In conclusion, the high-power picosecond laser cutting machine is designed to deliver superior cutting performance, efficiency, and reliability. It is an ideal choice for high-precision glass cutting tasks in various industries.


Features:

  1. Our advanced technology revolutionizes the glass cutting industry, providing superior performance and multiple advantages. With our state-of-the-art cutting system, you can achieve an exceptional cutting quality, ensuring smooth and precise edges without any tapering. This guarantees perfectly parallel cut surfaces, eliminating narrowing along the edges.
  2. One of the most notable features of our technology is its ability to produce clean and smooth cut edges without any burrs. This means there's no need for additional deburring operations, saving both time and labor costs. Moreover, our cutting process minimizes chipping, which is crucial, especially for fragile applications.
  3. Our cutting system is designed to be cost-effective, with low operational costs that make it a viable choice for any business. It boasts high yield rates, leading to increased material processing within a specified timeframe, significantly boosting production efficiency. Additionally, our technology uses minimal consumables and is highly energy-efficient, thereby reducing overall production costs and minimizing the environmental footprint.
  4. Our cutting system can handle high-speed cutting of irregular shapes while maintaining precision and quality, even with complex geometries. This adaptability makes it a highly sought-after option in various industries. Our technology is environmentally friendly, leaving no pollution, dust, or wastewater during the cutting process. This ensures a safe and clean working environment and aligns with sustainable manufacturing practices.
  5. To sum it up, our cutting technology guarantees unparalleled quality and efficiency. It delivers high-quality cuts, minimal chipping, and low operational costs, among other features. It can handle high-speed cutting of irregular shapes and ensures an environmentally friendly process. Choose our technology and experience an innovative glass cutting process that sets new standards in the industry.


Technical Parameters:

Specification Description
Cooling Method Water cooling
Pulse Width <10ps
Pulse Frequency 1Hz - 1000kHz
Wavelength 1064nm
Beam Quality M^2 < 1.2
Power 50W (options: 10W, 20W, 30W, 60W, 80W, etc.)
Laser Type Infrared picosecond pulse laser
Drive Motor XY Linear Motor + Optical Grating Scale
Positioning Accuracy ±2um
Repeatability ±1.5um
Acceleration 1G
Linear Speed Up to 1000mm/s
Cutting Speed Adjustable from 0-500mm/s
Cutting Thickness Ultra-clear glass single cut ≤19mm, Blue glass double cut ≤19mm
Minimum Cutting Burr ≤5um
Cutting Precision ±0.01mm
X/Y Cutting Range 610×700mm
Laser Type RFC02 (Radio Frequency CO2)
Cooling Method Water cooling
Wavelength 10.6μm
Power 150W (options: 250W/350W)
Pulse Frequency 1-100kHz
Weight Approximately 3500KG / 40000KG
Machine Dimensions (Option 1) Length 2550mm x Width 2080mm x Height 1960mm
Machine Dimensions (Option 2) Length 2150mm x Width 2080mm x Height 1960mm
Voltage, Power <8KW, AC220V


Applications:

Application Industries that Utilize Glass

Glass is a versatile material that is used in a variety of different industries for its aesthetic, functional, and practical properties. Some of the industries that make use of glass include:

Glass Processing Industry

The glass processing industry is one of the biggest users of glass. This industry is involved in the manufacturing of different types of glass products that can be used for applications in various other industries.

Biomedical Industry

Glass products are also utilized in the biomedical sector in the form of optic/UTG/willow/brittle biomedical glass. This glass is designed to be biocompatible and is used for applications in surgical, diagnostic, and research settings.

Real Estate Industry

The real estate industry makes use of glass for architectural decoration and bathroom glass applications. Glass is used in this industry for its aesthetic properties and to create a sense of openness and space in buildings.

Automobile Industry

The automobile industry utilizes glass for car glass and instrumentation panel glass. Automotive glass is designed to be shatter-resistant and to provide a clear view of the road while driving.

Communication Media Industry

The communication media industry is another sector that makes use of glass products for mobile/watch sapphire covers, camera/CCTV lens glass, and other electronic devices. These products require glass that is scratch-resistant and durable.

Home Appliance Industry

Glass is also used in the home appliance industry for glass panels on appliances such as stoves, ovens, and microwaves, as well as for lighting glass applications.

New Energy Industry

The new energy industry makes use of photovoltaic glass, which is designed to help generate solar power. This type of glass is used in solar panels and is designed to be highly transparent, durable, and weather-resistant.



Customization:

Our CKD Laser Glass Cutting Machine is manufactured in China and is certified with ISO. You can order as low as 1 unit with us and the pricing is negotiable. The packaging of the machine is done in wooden vacuum packaging, ensuring safe delivery to your doorstep. The delivery time ranges from 15-45 days and you can choose between L/C and T/T as payment terms.

The CKD Laser Glass Cutting Machine has a transmission system of Rack And Pinion and is capable of linear speeds up to 1000mm/s. It has a laser power range of 30/50/60/75/80/90w and can cut through thicknesses ranging from 0.03~25mm. The positioning accuracy of the machine is ±2um. Our supply ability is 50 sets per month, ensuring that we can cater to your bulk orders.



Support and Services:

The Laser Glass Cutting Machine is a precision cutting tool designed to cut various types of glass materials with high accuracy and speed. Our product technical support and services include:

  • Installation and setup of the machine at your facility
  • Training for your staff on how to operate and maintain the machine
  • Regular maintenance and repair services to ensure optimal performance of the machine
  • 24/7 technical support to assist with any issues or questions that may arise
  • Upgrades and customization services to meet your specific cutting needs

Our team of experienced technicians is dedicated to providing exceptional support and service to ensure that your Laser Glass Cutting Machine operates at its full potential and delivers the results you need.



Packing and Shipping:

Product Packaging:

The laser glass cutting machine will be carefully packed in a sturdy wooden crate to ensure safe transportation. The machine will be secured with foam and other protective materials to prevent any damage during shipping.

Shipping:

The laser glass cutting machine will be shipped via a reliable and reputable courier service. The shipping cost will depend on the destination and the weight of the package. Once the machine is shipped, we will provide the customer with a tracking number so they can track the delivery status of their order.

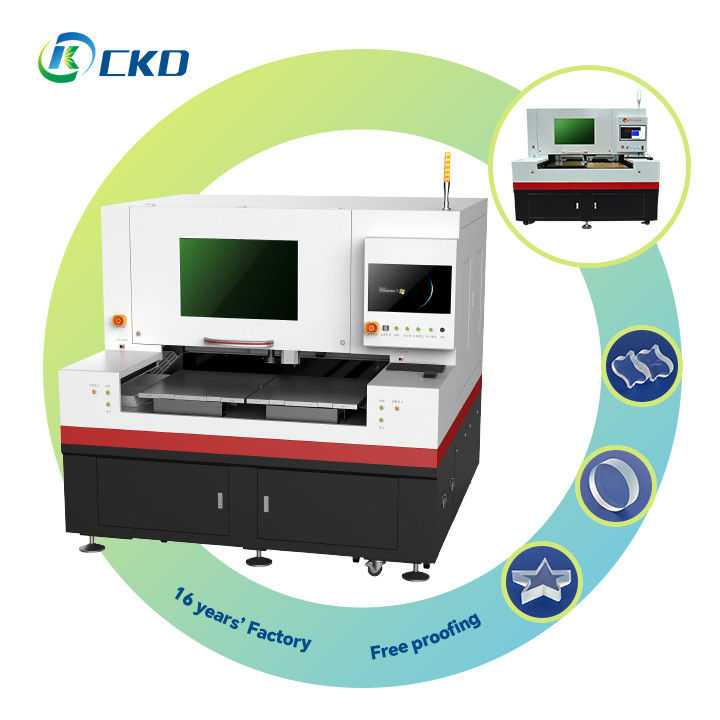

Precision HTI Controlled Glass Laser Cutting Machine With 150W Splitting Laser Source Power. 0

FAQ:

Q: What is the brand name of the Laser Glass Cutting Machine?

A: The brand name of the Laser Glass Cutting Machine is CKD.

Q: What is the model number of the Laser Glass Cutting Machine?

A: The model number of the Laser Glass Cutting Machine is CKD-DP6070C.

Q: Where is the Laser Glass Cutting Machine manufactured?

A: The Laser Glass Cutting Machine is manufactured in China.

Q: What is the certification of the Laser Glass Cutting Machine?

A: The Laser Glass Cutting Machine is certified by ISO.

Q: What is the minimum order quantity of the Laser Glass Cutting Machine?

A: The minimum order quantity of the Laser Glass Cutting Machine is 1.

Q: What is the price of the Laser Glass Cutting Machine?

A: The price of the Laser Glass Cutting Machine is negotiated.

Q: What are the packaging details of the Laser Glass Cutting Machine?

A: The Laser Glass Cutting Machine is packaged in wooden vacuum packaging.

Q: What is the delivery time of the Laser Glass Cutting Machine?

A: The delivery time of the Laser Glass Cutting Machine is between 15-45 days.

Q: What are the payment terms for the Laser Glass Cutting Machine?

A: The payment terms for the Laser Glass Cutting Machine are L/C and T/T.

Q: What is the supply ability of the Laser Glass Cutting Machine?

A: The supply ability of the Laser Glass Cutting Machine is 50 sets per month.
