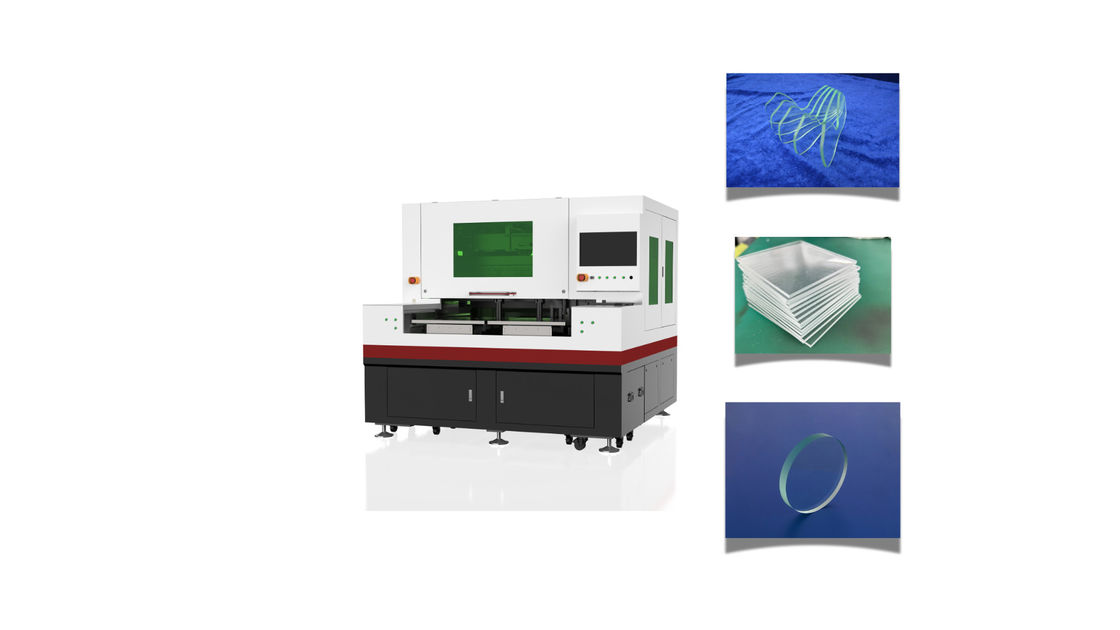

High Precision Glass Cutting Machine with RFC02 Laser Source

Product Description:

The laser wavelength of 1064nm ensures that the machine can cut through ultra-clear glass single cut up to 19mm thick, as well as blue glass double cut up to 19mm thick. This makes it a versatile option for those in need of a thick glass laser cutting machine.

The CKD Laser Glass Cutting Machine is perfect for glass processing companies, as its cutting accuracy and speed can significantly increase productivity. Its dimensions of 2150mm × 2080mm × 1960mm or 2550mm × 2080mm × 1960mm (depending on the model) make it a suitable option for companies with limited space.

This machine's advanced technology allows for irregular glass cutting, ensuring that even the most complex designs can be achieved with precision and accuracy. This feature is particularly useful for those in the architectural and interior design industries, where unique and intricate glass designs are in high demand.

In summary, the CKD Laser Glass Cutting Machine is a reliable, versatile, and high-precision machine that can handle a variety of glass types and thicknesses. Its ability to perform irregular glass cutting makes it a top choice for those in the architectural and interior design industries.

Features:

• Product Name: Laser Glass Cutting Machine
• Beam Quality: M^2 < 1.2
• Splitting laser source Laser Type: RFC02 (Radio Frequency CO2)
• Whether CNC: Yes
• Key Selling Points: Ultra Fast Picesecond
• Cutting Area:
  • 400mm*500mm
  • 600*700mm
  • 600*900mm

Keywords: Polygonal glass cutting machine, Irregular glass cutting, Single Table Glass Cutting Machine

Technical Parameters:

This is a High Precision Laser Cutting Machine suitable for cutting colored glass and optical glass. It operates at a wavelength of 1064nm and has a repeatability of ±1.5um. It can cut Ultra-clear Glass Single Cut up to 19mm and Blue Glass Double Cut up to 19mm with a cutting precision of ±0.01mm. The Laser Glass Cutting Machine has a range of laser power options from 30 to 90w and is equipped with a XY Linear Motor + Grating Ruler drive motor. The cooling system is water-based.

Applications:

The CKD Laser Glass Cutting Machine is ideal for use in a wide range of applications. The machine is perfect for cutting optical glass, as well as other materials such as ceramics, quartz, and sapphire. The machine is designed to provide accurate and precise cuts, making it ideal for use in the manufacture of precision components.

The CKD Laser Glass Cutting Machine is a single table glass cutting machine that is easy to use and operate. The machine is equipped with a HTI Control system and a rack and pinion transmission system, which ensures that the machine is easy to operate and provides accurate results. The machine is also equipped with XY Linear Motor and Grating Ruler drive motors, which provide smooth and precise movement.

The CKD Laser Glass Cutting Machine is built to the highest standards and is certified by ISO CE. The machine is available for purchase with a minimum order quantity of 1, and the price can be negotiated. The machine is packaged in wooden vacuum packaging to ensure that it arrives at its destination in perfect condition. The delivery time for the machine is 25-45 days, and payment can be made via L/C or T/T. The machine is also available for purchase on a supply basis, with a supply ability of 60 sets per month.

The CKD Laser Glass Cutting Machine is a versatile and reliable piece of equipment that is ideal for use in a wide range of applications. Whether you are working with optical glass or ceramics, this machine is sure to provide you with the accurate and precise cuts you need.
