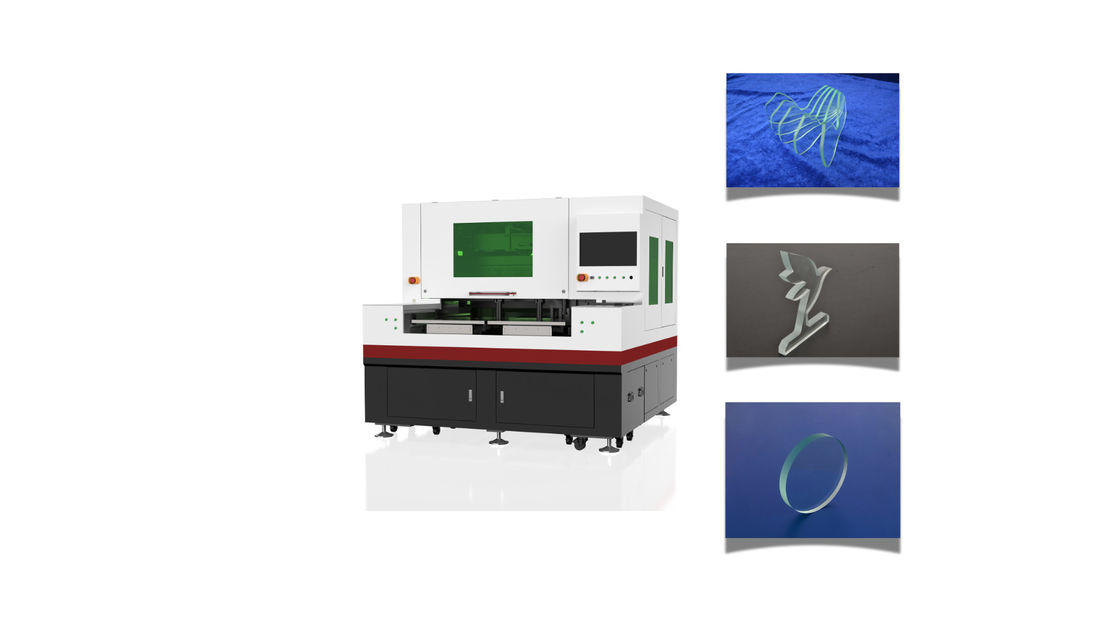

150W Thin Glass Laser Cutting Machine with 400*500mm - 900*600mm Cutting Area

Product Description:

One of the key features of this machine is its pulse width, which is less than 10ps. This means that it can produce extremely short laser pulses that are highly effective in cutting through various types of glass, including colored and stained glass. Additionally, this machine is equipped with a powerful drive motor that consists of XY linear motor and optical grating scale. This enables it to achieve high-speed and high-precision cutting, ensuring accurate and clean cuts every time.

The cutting speed of this machine is adjustable from 0-500mm/s, which means that users can easily adjust the speed according to their specific needs and requirements. This feature is particularly useful for cutting different types of glass, as each type may require a different cutting speed to achieve optimal results.

The splitting laser source power of this machine is 150W, although users can also choose from options such as 250W and 350W depending on their specific needs. This level of power ensures that the machine can easily cut through thick and tough glass materials with ease, while still maintaining its precision and accuracy.

Another key feature of this machine is its positioning accuracy, which is ±2um. This means that it can achieve highly precise cuts, even when working with complex and intricate designs. This feature is particularly important for cutting colored and stained glass, which can be very delicate and require extreme precision to avoid damaging the material.

In summary, the Laser Glass Cutting Machine is a high-performance and versatile machine that is ideal for cutting various types of glass, including colored and stained glass. With its advanced features, including a pulse width of less than 10ps, XY linear motor and optical grating scale drive motor, adjustable cutting speed, splitting laser source power of up to 350W, and positioning accuracy of ±2um, this machine offers exceptional precision, speed, and efficiency, making it an essential tool for glass manufacturers and processing companies.

Features:

• Product Name: Laser Glass Cutting Machine
• Cutting Accuracy: ±0.01mm
• Working Voltage: 220V
• Acceleration: 1G
• Splitting laser source Pulse Frequency: 1-100kHz
• Wavelength: 1064nm
• Small glass laser cutting machine
• Single Table Glass Cutting Machine
• Environmental protection glass laser cutting machine

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine is designed for cutting optical glass with precision and accuracy. It is ideal for use in the manufacturing of optical devices, such as lenses, prisms, and mirrors. The machine is equipped with a high-quality laser that has a wavelength of 1064nm and a beam quality of M^2 < 1.2, which ensures precise cutting of the glass.

The CKD Laser Glass Cutting Machine is also suitable for cutting other materials, such as ceramics, sapphire, and silicon. The machine is easy to operate, and it comes with a user-friendly interface that allows for easy programming and control of the cutting process. The machine is also equipped with advanced safety features, such as a protective cover and safety sensors, which ensure the safety of the operator during the cutting process.

The CKD Laser Glass Cutting Machine is certified by ISO and CE, which guarantees its quality and reliability. The machine is available for purchase with a minimum order quantity of one, and the price is negotiable. The machine is delivered in wooden vacuum packaging, and the delivery time is 25-45 days. The payment terms are L/C and T/T, and the supply ability is 60 sets per month.

The CKD Laser Glass Cutting Machine weighs 3500kg, and it requires a voltage of AC220V and a power of less than 8KW. The machine is a high-quality and reliable option for anyone looking for a precision cutting machine for optical glass and other materials.
