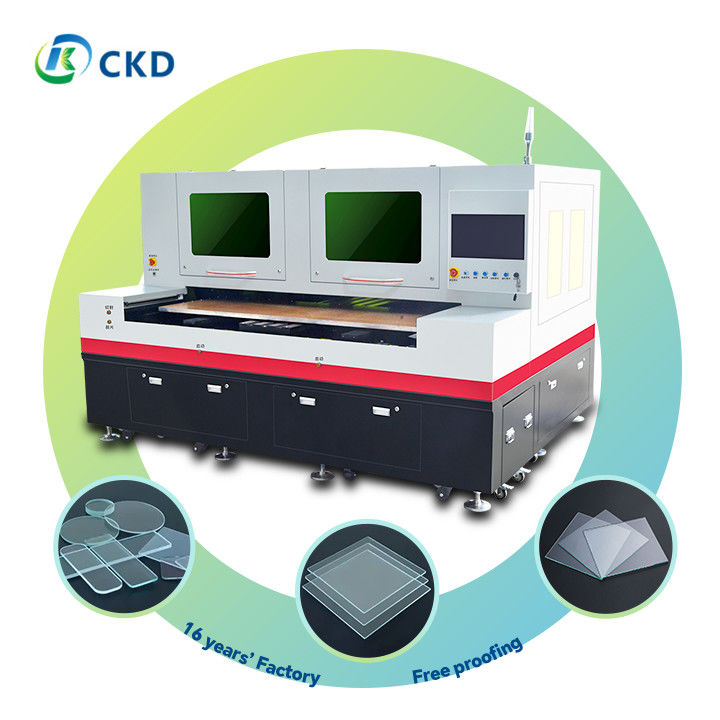

Ultra Fine Precision Laser Glass Cutting Machine 3500kg With Infrared Picosecond
-
Highlight
Ultra Fine Laser Glass Cutting Machine
,Infrared Picosecond Laser Glass Cutting Machine
,3500kg Laser Glass Cutting Machine
-
NameGlass Cutting And Splitting Machine (All-in-One)
-
Dimension2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm
-
Weight3500kg
-
Laser TypeInfrared Picosecond
-
Minimum Cutting Burr≤5um
-
Cutting SpeedAdjustable From 0-500mm/s
-
Linear Guide BrandTPI
-
BrandCKD
-
Place of OriginChina
-
Brand NameCKD
-
CertificationISO CE
-
Model NumberCKD-DP6070C-50E CKD-DP6070C-60E CKD-DP6070C-80TE CKD-DP6070C-50ECKD-DP6070S-50E CKD-DP6070S-60E CKD-DP6070S-80TE CKD-DP6070S-80ECKD-DP6070D-50E CKD-DP6070D-60E CKD-DP6070D-80TE CKD-DP6070D-80ECKD-SP6070S-50E CKD-SP6070S-60E CKD-SP6070S-80TE CKD-SP6070S-80E
-
Minimum Order Quantity1
-
PriceNegotiated
-
Packaging DetailsWooden vacuum packaging
-
Delivery Time25-45 days
-
Payment TermsL/C, T/T
-
Supply Ability60sets per month
Ultra Fine Precision Laser Glass Cutting Machine 3500kg With Infrared Picosecond
Product Description:
With a maximum linear speed of up to 1000mm/s, this Small glass laser cutting machine can easily handle even the most intricate cutting projects with ease. It operates on a working voltage of 220V, making it suitable for use in a variety of different working environments.
The High Precision Laser Cutting Machine boasts a high level of precision, ensuring that every cut is made with absolute accuracy. It also features an adjustable cutting speed, which can be set anywhere between 0-500mm/s, allowing you to tailor the machine's performance to the specific requirements of your project.
Whether you're working on a large-scale production project or a smaller, more intricate job, the High Precision Laser Cutting Machine is the perfect tool for the job. Its advanced technology and unparalleled precision make it a highly effective and efficient tool for cutting a wide variety of different materials.
Features:
- Product Name: Laser Glass Cutting Machine
- Linear guide brand: TPI
- Name: Glass Cutting And Splitting Machine (All-in-One)
- Cutting Accuracy: ±0.01mm
- Drive Motor: XY Linear Motor + Optical Grating Scale
- Cutting thickness: 0.03~25mm
- Can cut colored glass: Yes
- Can be used as a small glass laser cutting machine: Yes
- Can cut optical glass: Yes
Technical Parameters:
| Product Name: | Single Table Glass Cutting Machine |
| Control System: | HTI Control |
| Splitting laser source Wavelength: | 10.6µm |
| Wavelength: | 1064nm |
| Pulse Width: | <10ps |
| Splitting laser source Pulse Frequency: | 1-100kHz |
| Cutting Thickness: | Ultra-clear Glass Single Cut ≤19mm, Blue Glass Double Cut ≤19mm |
| Working Environment: | 26℃ |
| Repeatability: | ±1.5um |
| Linear guide brand: | TPI |
| CNC: | Yes |
Applications:
The CKD Laser Glass Cutting Machine is perfect for cutting polygonal glass, which makes it ideal for use in the automotive and construction industries. Additionally, its ability to cut a range of materials, including glass, metal, and plastic, makes it a versatile and useful tool for a variety of applications.
The CKD Laser Glass Cutting Machine is a single table glass cutting machine that can be CNC controlled, which makes it easy to use and operate. Its linear speed of up to 1000mm/s and working frequency of 50HZ/60HZ make it a fast and efficient cutting tool.
The CKD Laser Glass Cutting Machine is ISO CE certified, ensuring that it meets the highest quality and safety standards. It is available for purchase with a minimum order quantity of one, and its price is negotiable. The machine comes packaged in wooden vacuum packaging and has a delivery time of 25-45 days. Payment terms include L/C and T/T, and the machine has a supply ability of 60 sets per month.
