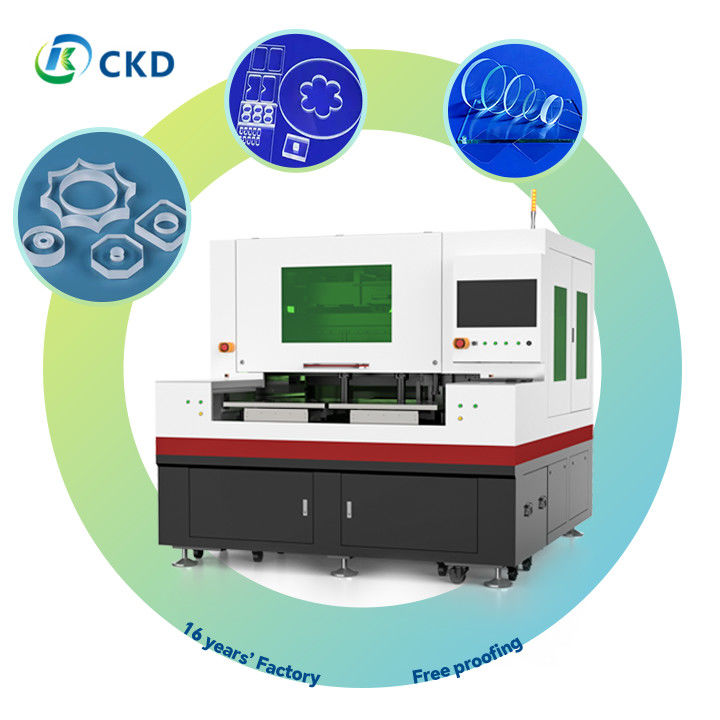

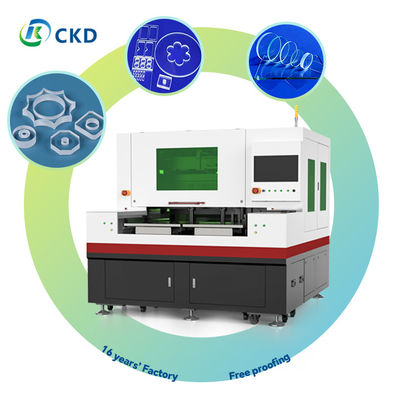

XY Linear Motor Grating Ruler Control System 150W Speed Laser Cutting Machine for Glass
-
Highlight
150W Laser Glass Cutting Machine
-
MaterialGlass
-
BrandCKD
-
Cutting ThicknessUltra-clear Glass Single Cut ≤19mm, Blue Glass Double Cut ≤19mm
-
Drive MotorXY Linear Motor + Grating Ruler
-
Cutting Area400mm*500mm/ 600*700mm/ 600*900mm
-
Splitting Laser Source Cooling MethodWater Cooling
-
Control SystemHTI Control
-
Support Image And Text FormatsAI PLT DXF BMP Dst DWg LAS DXP
-
Place of OriginChina
-
Brand NameCKD
-
CertificationISO CE
-
Model NumberCKD-DP6070C-50E CKD-DP6070C-60E CKD-DP6070C-80TE CKD-DP6070C-50ECKD-DP6070S-50E CKD-DP6070S-60E CKD-DP6070S-80TE CKD-DP6070S-80ECKD-DP6070D-50E CKD-DP6070D-60E CKD-DP6070D-80TE CKD-DP6070D-80ECKD-SP6070S-50E CKD-SP6070S-60E CKD-SP6070S-80TE CKD-SP6070S-80E
-
Minimum Order Quantity1
-
PriceNegotiated
-
Packaging DetailsWooden vacuum packaging
-
Delivery Time25-45 days
-
Payment TermsL/C, T/T
-
Supply Ability60sets per month
XY Linear Motor Grating Ruler Control System 150W Speed Laser Cutting Machine for Glass
Product Description:
The Glass Cutting And Splitting Machine (All-in-One) features TPI linear guides which ensure smooth and precise movement of the cutting head. This results in clean and accurate cuts every time. The CKD brand of this machine also ensures durability and reliability for long-term use.
One of the key features of this machine is its adjustable impulse frequency, which can range from 1khz to 100khz. This allows for greater control over the cutting process and ensures that even the most intricate designs can be executed with ease.
Whether you are a professional glass cutting business or just starting out, the Glass Cutting And Splitting Machine (All-in-One) is the perfect addition to your workshop. With its advanced features and user-friendly design, this machine will help you achieve precise and efficient cuts every time.
Features:
- Product Name: Laser Glass Cutting Machine
- Splitting laser source Wavelength: 10.6µm
- Cutting Precision: ±0.01mm
- Splitting laser source Power: 150W (options: 250W/350W)
- Linear Speed: Up To 1000mm/s
- Support image and text formats: AI PLT DXF BMP Dst DWg LAS DXP
- High Precision Laser Cutting Machine
- Colored Glass Cutting Machine
Technical Parameters:
| Product Attribute | Value |
| Product Name | High Precision Laser Cutting Machine |
| Dimension | 2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm |
| Laser Type | Infrared Picosecond |
| Support Formats | AI PLT DXF BMP Dst DWg LAS DXP |
| Linear Speed | Up To 1000mm/s |
| Control System | HTI Control |
| Wavelength | 1064nm |
| Splitting Laser Source Laser Type | RFC02 (Radio Frequency CO2) |
| Splitting Laser Source Pulse Frequency | 1-100kHz |
| Cutting Precision | ±0.01mm |
| Working Environment | 26℃ |
| Product Type | Polygonal glass cutting machine |
Applications:
The CKD Laser Glass Cutting Machine is suitable for many occasions and scenarios, including:
- Polygonal Glass Cutting: This machine is ideal for cutting polygonal glass with high precision and repeatability.
- Small Glass Laser Cutting: With its high precision and small cutting thickness, this machine is perfect for cutting small pieces of glass.
- High Precision Laser Cutting: The CKD Laser Glass Cutting Machine is perfect for high precision laser cutting applications that require a high degree of accuracy and repeatability.
The CKD Laser Glass Cutting Machine is manufactured in China and is certified by ISO CE. It has a minimum order quantity of 1 and the price is negotiable. The machine is packaged in wooden vacuum packaging and has a delivery time of 25-45 days. Payment terms include L/C and T/T, and the supply ability is 60 sets per month.
Our products are sold all over the world, you can rest assured.
