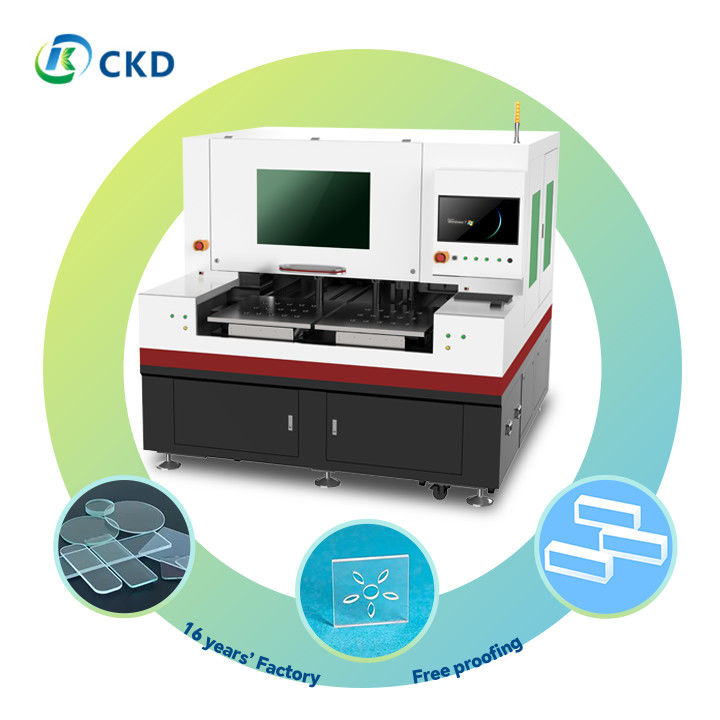

150W RFC02 Water Cooling Laser Glass Cutting Machine For Low Noise Environments
-
Highlight
Low noise Laser Glass Cutting Machine
,150W Laser Glass Cutting Machine
,RFC02 Laser Glass Cutting Machine
-
Customizable OptionsCustom Options Available For Table Size, Laser Power (up To 500W), And Special Cutting Heads (like For Curved Or Micro-level Cutting) To Meet Specific Needs.
-
Cutting Area400mm*500mm/ 600*700mm/ 600*900mm
-
Minimum Cutting Burr≤5um
-
Noise LevelOperating Noise Level Is 70dB, With A Built-in Silencing System, Suitable For Low-noise Environments.
-
Acceleration1G
-
Splitting Laser Source Wavelength10.6µm
-
Splitting Laser Source Laser TypeRFC02 (Radio Frequency CO2)
-
Drive MotorXY Linear Motor + Optical Grating Scale
-
Place of OriginChina
-
Brand NameCKD
-
CertificationISO CE
-
Model NumberCKD-DP6070C-50E CKD-DP6070C-60E CKD-DP6070C-80TE CKD-DP6070C-50ECKD-DP6070S-50E CKD-DP6070S-60E CKD-DP6070S-80TE CKD-DP6070S-80ECKD-DP6070D-50E CKD-DP6070D-60E CKD-DP6070D-80TE CKD-DP6070D-80ECKD-SP6070S-50E CKD-SP6070S-60E CKD-SP6070S-80TE CKD-SP6070S-80E
-
Minimum Order Quantity1
-
PriceNegotiated
-
Packaging DetailsWooden vacuum packaging
-
Delivery Time25-45 days
-
Payment TermsL/C, T/T
-
Supply Ability60sets per month
150W RFC02 Water Cooling Laser Glass Cutting Machine For Low Noise Environments
Product Description:
Features:
- Product Name: Laser Glass Cutting Machine
- Maintenance Requirements: Recommend Optical Alignment every 200 hours, and Coolant Replacement every 1000 hours. Regular Remote Diagnostics and Software Updates Available.
- Cutting Precision: ±0.01mm
- Cutting Accuracy: ±0.01mm
- Beam Quality: M² < 1.2
- Compatibility with Automation Systems: Supports Integration with Major Automation Systems, Including Robot Interfaces and Automatic Loading/unloading Systems. Standard Industrial Communication Protocols (like Modbus, OPC) Are Supported.
- Features:
- Can Cut Colored Glass
- Can Cut Polygonal Glass
- Environmental Protection Glass Laser Cutting Machine
Technical Parameters:
| Product Attribute | Technical Parameter |
| Product Name | Colored Glass Cutting Machine |
| Type | Single Table Glass Cutting Machine |
| Drive Motor | XY Linear Motor + Grating Ruler |
| Weight | 3500kg |
| Splitting Laser Source Power | 150W (options: 250W/350W) |
| Splitting Laser Source Cooling Method | Water Cooling |
| Environmental Conditions | Works Best In Temperatures Between 15°C And 30°C, With 20%-80% Relative Humidity, Suitable For Cleanrooms Or Industrial Environments |
| Positioning Accuracy | ±2μm |
| Cutting Width | 0.03-25mm |
| Cutting Precision | ±0.01mm |
| Splitting Laser Source Pulse Frequency | 1-100kHz |
| Laser Source | Fiber Laser Cutting Machine |
Applications:
The CKD Laser Glass Cutting Machine is ideal for use in a variety of industries, including interior decoration, architecture, electronics, and automotive. It is designed to cut irregular shapes and sizes of glass with precision and accuracy. The machine is also suitable for cutting colored glass, which is often used in decorative glasswork, and optical glass, which is used in scientific instruments and lenses.
The Laser Glass Cutting Machine uses a water cooling system and a splitting laser source Laser Type: RFC02 (Radio Frequency CO2). The machine is compatible with major automation systems, including robot interfaces and automatic loading/unloading systems. Standard industrial communication protocols like Modbus and OPC are supported.
The Laser Glass Cutting Machine is available in various laser power options, including 30/50/60/75/80/90w. It can achieve a linear speed of up to 1000mm/s, making it suitable for high-speed production environments. The machine is packed in wooden vacuum packaging and has a delivery time of 25-45 days. Payment can be made through L/C or T/T, and the machine's supply ability is 60 sets per month.
Our products are sold all over the world, you can rest assured.
