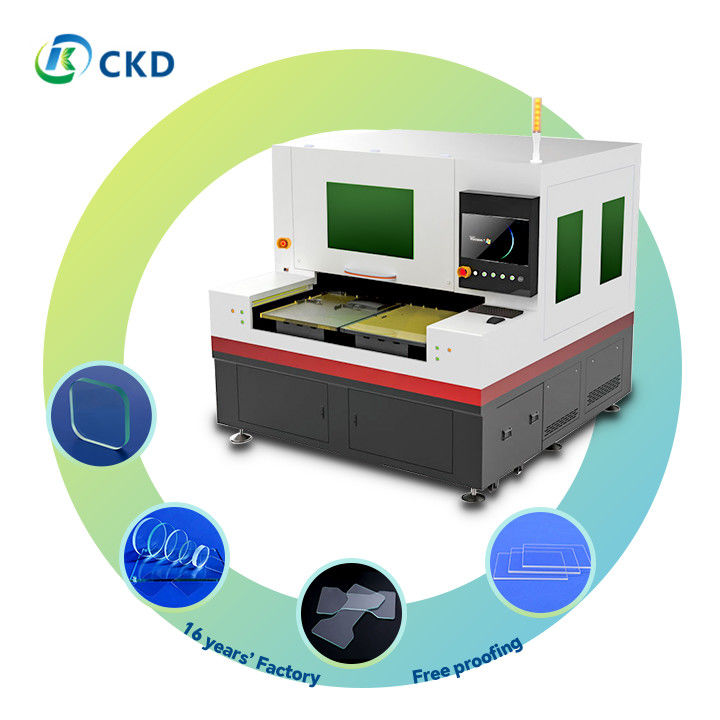

150W Splitting Laser Source Glass Cutting Machine 200-hour Maintenance Interval
-
Highlight
150W Laser Glass Cutting Machine
,Splitting Laser Source Glass Cutting Machine
-
Working Voltage220V
-
Splitting Laser Source Wavelength10.6µm
-
Maintenance RequirementsRecommend Optical Alignment Every 200 Hours, And Coolant Replacement Every 1000 Hours. Regular Remote Diagnostics And Software Updates Available.
-
MobilityEquipped With Heavy-duty Wheels For Easy Movement And Repositioning, With Locking Mechanisms For Stability
-
Drive MotorXY Linear Motor + Grating Ruler
-
Acceleration1G
-
Impulse Frequency1-100khz
-
Working Environment26℃
-
Place of OriginChina
-
Brand NameCKD
-
CertificationISO CE
-
Model NumberCKD-DP6070C-50E CKD-DP6070C-60E CKD-DP6070C-80TE CKD-DP6070C-50ECKD-DP6070S-50E CKD-DP6070S-60E CKD-DP6070S-80TE CKD-DP6070S-80ECKD-DP6070D-50E CKD-DP6070D-60E CKD-DP6070D-80TE CKD-DP6070D-80ECKD-SP6070S-50E CKD-SP6070S-60E CKD-SP6070S-80TE CKD-SP6070S-80E
-
Minimum Order Quantity1
-
PriceNegotiated
-
Packaging DetailsWooden vacuum packaging
-
Delivery Time25-45 days
-
Payment TermsL/C, T/T
-
Supply Ability60sets per month
150W Splitting Laser Source Glass Cutting Machine 200-hour Maintenance Interval
Product Description:
The advanced laser cutting machine is a top-performing machine that offers superior cutting performance. Equipped with a cutting-edge, high-frequency pulsed laser, this machine delivers remarkable results.
- High-Power Laser Source: Equipped with a cutting-edge, high-frequency pulsed laser for superior cutting performance.
- Versatile Material Handling: Capable of processing a wide range of materials including metals and non-metals.
- Multifunctional Cutting Capabilities:
- Supports continuous sheet cutting
- Precision single-point cutting
- Efficient strip cutting
- Advanced X/Y Axis Control: Utilizes high-precision DC servo motors and ultra-fine 0.1μm optical encoders for unparalleled accuracy.
- Intelligent Motion Control: Features automatic focus-following functionality and dynamic piercing control.
- High-Resolution Imaging: Incorporates a premium CCD camera system for real-time visual monitoring, pattern recognition, and mark point detection.
- Robust Power Supply: Equipped with a German-made, high-stability power source. Taiwanese brand power supply used for optical components.
- Impressive Cutting Range: Capable of processing materials up to 19mm in thickness, catering to a wide array of industrial applications.
- Precision-Engineered Components:
- Motor base and optical platform constructed with natural granite
- Designed for superior stability and vibration resistance
- Ensures maintained accuracy over time
- Ideal for high-precision industrial applications
- User-friendly interface for easy operation
- Reduced material waste due to precise cutting
- Suitable for both small-scale and large-volume production runs
- Low maintenance requirements, ensuring long-term reliability
Features:
- Precision Cutting
- Irregular shape high-speed cutting
- Contour cutting
- Small hole drilling
- Hand-held cutting capabilities
- Superior Processing
- High-quality edge finishing
- No taper effects
- Minimal material loss
- Burr-free cutting
- Eco-Friendly Operation
- No pollution
- No powder residue
- No wastewater production
- High-Speed Processing
- Rapid cutting of complex shapes and patterns
- Superior Cut Quality
- Clean edges with no tapering
- Minimal to no burrs
- Extremely small chipping, if any
- Cost-Effective
- High yield rate
- Low consumable usage
- Energy-efficient operation
- Environmentally Friendly
- Clean process with no harmful byproducts
- Specialized Glass
- Ultra-clear glass
- Plain white glass
- High borosilicate glass
- Quartz glass
- Electronic Components
- Phone glass covers
- Car glass
- Camera glass covers
- LCD screens
- Optical Materials
- K9 glass
- Various optical filters
- Mirror cutting
- Precious Materials
- Sapphire processing for watch faces and electronic components
- Glass Manufacturing
- Optical glass
- Tempered glass
- Ultra-thin glass
- Laboratory glassware
- Medical glass equipment
- Electronics
- Mobile phone screens and covers
- Tablet displays
- Laptop screens
- Optical/ITO/Yellow/Purple semiconductor glass
- Automotive
- Car windows and windshields
- Dashboard displays
- Instrumentation panels
- Real Estate and Construction
- Architectural glass
- Decorative glass panels
- Bathroom glass fixtures
- Home Appliances
- Glass panels for ovens and refrigerators
- Lighting glass components
- Communication Media
- Mobile device screens
- Watch sapphire covers
- Camera and CCTV lenses
- New Energy Sector
- Solar panel glass
- Specialized glass for energy-efficient windows
- Aerospace and Defense
- High-precision optical components
- Specialized glass for cockpit displays
- Medical and Scientific Research
- Laboratory equipment glass
- Optical lenses for medical devices
- Microfluidic chips
This advanced laser cutting system offers a versatile solution for a wide range of industries, providing high-precision, efficient, and eco-friendly processing of various glass and optical materials. Its ability to handle complex shapes and delicate materials makes it an ideal choice for both large-scale manufacturing and specialized, high-value applications.
Technical Parameters:
The laser type used in our system is an ultrashort pulse fiber laser. The specific type may vary depending on the model chosen. We offer options for average power ranging from 10W up to 80W. The laser's wavelength is 1064nm, with a second harmonic at 532nm. The pulse width is less than 10 picoseconds, and the repetition rate is adjustable between 1Hz to 1000kHz. Our beam quality is M² < 1.2, providing near-diffraction-limited beams.
Our laser system offers high precision and accuracy. The positioning accuracy is ±2μm over the entire work area, and the repeatability is ±1.5μm with ±16 arc-seconds angular accuracy. The machine's maximum cutting speed can reach up to 1000mm/s. The cutting thickness of ultra-thin glass material is ≤1mm, while standard glass materials are ≤19mm, which can vary based on the material properties and cutting requirements. The minimum line width is ≤30μm, and the minimum hole diameter is ≤20μm.
Our laser system is available in both dual-platform and single-platform models. For dual-platform models, the work area dimensions per platform are 600x700mm, 600x900mm, or 400x500mm. For single-platform models, the work area dimensions are 400x500mm, 600x700mm, or 600x900mm.
The machine's power consumption is 150W, with 250W/350W standby power consumption. The input voltage is AC220V ± 10%, and the frequency is between 50-60Hz.
The dimensions of our laser system vary based on the model chosen. The length ranges from 1600mm to 2550mm, and the width ranges from 1700mm to 2080mm. The height is fixed at 1960mm, and the weight varies from 3500kg up to 5000kg, depending on the model chosen.
Our laser system comes with several useful features such as a built-in water cooling system that provides thermal stability. The control system is advanced CNC with high-speed processing capabilities, and we include proprietary cutting optimization software. Safety features include a Class 1 laser safety enclosure and emergency stop buttons.
Our laser system operates in an environment with a temperature range between 18-28°C (64-82°F) and humidity between 40-70% non-condensing. Power stability should not fluctuate beyond ±5% maximum.
We offer several optional upgrades, including an enhanced vision system for automatic alignment, an automated material loading/unloading system, custom fixture designs for specific applications, and extended warranty and service packages.
Note: Specifications for our system may vary slightly based on specific configurations and continuous product improvements. Please consult with our technical team for the most up-to-date information and customization options.
Applications:
Our advanced laser cutting machine is designed to meet a wide range of industrial needs, offering precision and efficiency across various materials and applications:
- Ideal for creating high-precision instrument panels, dashboards, and control interfaces
- Capable of handling thin to medium-thickness materials with exceptional accuracy
- Ultra-thin Glass: Precise cutting of delicate glass sheets for electronic devices
- White Glass: Clean and accurate processing for decorative and architectural applications
- High-Borosilicate Glass: Specialized cutting for laboratory equipment and heat-resistant products
- Quartz Glass: Precision cutting for optical components and semiconductor industry needs
- Tailored for cutting PCB boards, flexible circuits, and other electronic substrates
- Ensures clean edges and minimal thermal impact on sensitive electronic materials
- Sapphire Cutting: For watch faces, smartphone camera lenses, and high-end displays
- Precision Gemstone Shaping: Creating intricate designs in precious and semi-precious stones
- LED Component Manufacturing: Cutting sapphire wafers for LED production
- Capable of processing various LCD components, including:
- ITO (Indium Tin Oxide) conductive films
- RGB color filters
- Polarizing films
- Ensures precise cutting without damaging delicate display materials
- Accurate cutting of K9 optical glass for high-quality lenses and prisms
- Precision shaping of optical films for various industrial and scientific applications
- Micro-cutting of small, intricate parts for the medical and aerospace industries
- Custom shape cutting for unique product designs and prototypes
- Multi-layer material processing for composite products
Our laser cutting system's versatility makes it an invaluable tool across multiple industries, from consumer electronics to advanced scientific research, ensuring high-quality results and efficient production processes.
