Laser Glass Cutting Machine With TPI Linear Guides For Ultra Precision Cutting
-
Highlight
Ultra Precision Glass Cutting Machine
,Ultra Precision Laser Glass Cutting Machine
,TPI Linear Guides
-
Linear Guide BrandTPI
-
Voltage , Powe<8KW , AC220V
-
Positioning Accuracy±2μm
-
Chipping≤5μm
-
Cutting Area400mm*500mm/ 600*700mm/ 600*900mm
-
AdvantagesIrregular-shape High-speed Cutting High Cutting Quality, No Taper, No Burr, Small Chipping High Yield Rate, Low Consumables And Energy-saving No Pollution, No Powder, And No Wastewater
-
Environmental ConditionsWorks Best In Temperatures Between 15°C And 30°C, With 20%-80% Relative Humidity, Suitable For Cleanrooms Or Industrial Environments
-
Key Selling PointsUltra Fast Picesecond
-
Place of OriginChina
-
Brand NameCKD
-
CertificationISO CE
-
Model NumberCKD-DP6070C-50E CKD-DP6070C-60E CKD-DP6070C-80TE CKD-DP6070C-50ECKD-DP6070S-50E CKD-DP6070S-60E CKD-DP6070S-80TE CKD-DP6070S-80ECKD-DP6070D-50E CKD-DP6070D-60E CKD-DP6070D-80TE CKD-DP6070D-80ECKD-SP6070S-50E CKD-SP6070S-60E CKD-SP6070S-80TE CKD-SP6070S-80E
-
Minimum Order Quantity1
-
PriceNegotiated
-
Packaging DetailsWooden vacuum packaging
-
Delivery Time25-45 days
-
Payment TermsL/C, T/T
-
Supply Ability60sets per month

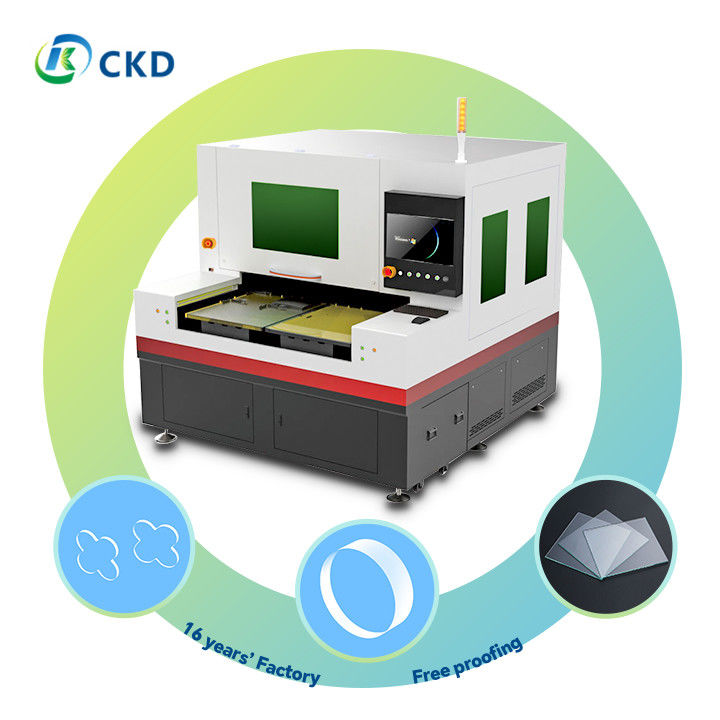

Laser Glass Cutting Machine With TPI Linear Guides For Ultra Precision Cutting
Product Description:
The CKD Laser Glass Cutting Machine features a work size of 610*700mm X 2, which is customizable to fit the specific needs of each user. The machine is also equipped with a splitting laser source, the RFC02 (Radio Frequency CO2), which operates at a wavelength of 10.6μm. The standard power output is 150W, with options for 250W or 350W. The machine is also designed with water cooling to ensure that it can operate continuously without overheating.
The CKD Laser Glass Cutting Machine is a product of the highest quality. It is manufactured by CKD, a leading manufacturer of laser cutting machines. The machine weighs 3500kg, making it sturdy and reliable. Its precision cutting capabilities make it ideal for small glass laser cutting projects, as well as larger, thicker pieces.
Features:
- Product Name: Laser Glass Cutting Machine
- Splitting Laser Source: RFC02 (Radio Frequency CO2)
- Wavelength: 10.6µm
- Power Options: 150W (options: 250W/350W)
- Voltage: <8KW, AC220V
- Cooling System: Water Cooling
- Working Environment: 26℃
- Energy Consumption: Standby Power is about 500W, and Average Power Consumption during Cutting is 2.5kW
- Modes: Energy-efficient with Eco-friendly Modes
This Laser Glass Cutting Machine is suitable for: Fiber Laser Cutting Machine, Stained glass cutting machine, and Single Table Glass Cutting Machine
Technical Parameters:
| Product Name | Small Glass Laser Cutting Machine |
| Supported Image and Text Formats | AI, PLT, DXF, BMP, Dst, DWg, LAS, DXP |
| Voltage, Power | <8KW, AC220V |
| Maintenance Requirements | Optical alignment every 200 hours and coolant replacement every 1000 hours. Regular remote diagnostics and software updates available. |
| Laser Type | Infrared Picosecond |
| Linear Guide Brand | TPI |
| Splitting Laser Source Laser Type | RFC02 (Radio Frequency CO2) |
| Acceleration | 1G |
| Splitting Laser Source Power | 150W (options: 250W/350W) |
| Minimum Cutting Burr | ≤5μm |
| Working Environment | 26℃ |
| Product Type | Single Table Glass Cutting Machine |
Applications:
The Thick Glass Laser Cutting Machine is designed to work with a variety of glass materials, including thick glass and polygonal glass. It is ideal for use in a variety of application occasions and scenarios, such as:
- Glass manufacturing facilities
- Architectural glass installation companies
- Glassware companies
- Glass furniture companies
- Automotive glass manufacturing companies
The Thick Glass Laser Cutting Machine is also perfect for use in a variety of different scenarios, such as:
- Custom glass cutting projects
- Mass production of glass products
- Creating intricate glass designs
- Manufacturing glass parts for machinery and equipment
The Thick Glass Laser Cutting Machine is equipped with a water cooling system, cutting speed adjustable from 0-500mm/s, acceleration of 1G, drive motor of XY Linear Motor + Grating Ruler, and dimensions of 2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm. It is also certified with ISO and CE, and it comes with wooden vacuum packaging for delivery.
If you are interested in purchasing a Thick Glass Laser Cutting Machine for your business, CKD offers a minimum order quantity of 1 and negotiable pricing. The delivery time is between 25-45 days, and the accepted payment terms are L/C and T/T. CKD has a supply ability of 60 sets per month, ensuring that you will receive your machine in a timely manner.
Our products are sold all over the world, you can rest assured.
