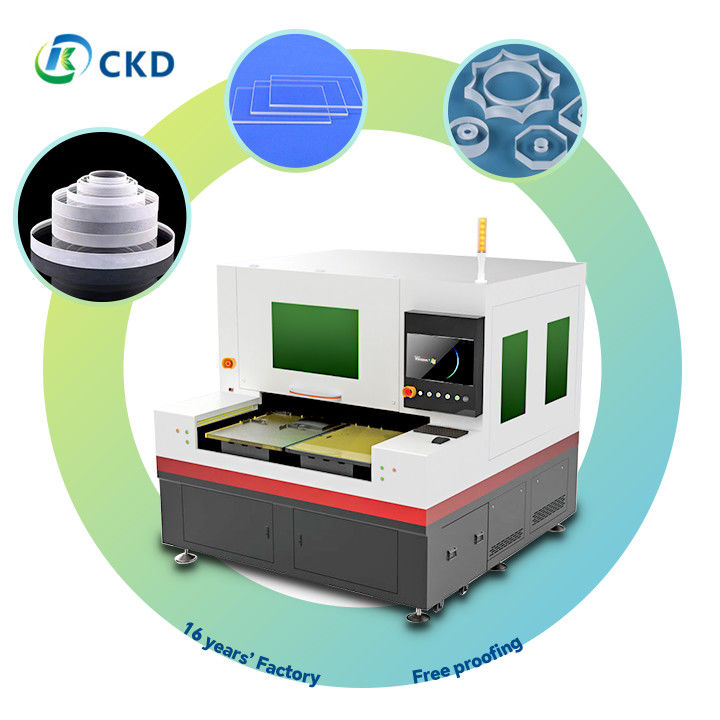

High Precision Dual Laser Glass Cutting and Splitting Machine with ≤5μm Cutting Burr

Product Description:

The CKD Laser Glass Cutting Machine is equipped with a variety of safety features to ensure safe operation, including an emergency stop button, protective cover, laser safety windows, and automatic power-off when the cover is open. These features make it possible for operators to work with ease and confidence, knowing that safety is always a top priority.

The CKD Laser Glass Cutting Machine is powered by a 220V working voltage, making it efficient and effective for all your glass cutting needs. Whether you're working with optical glass or environmental protection glass, this machine will deliver the precision and accuracy you need to get the job done right.

When it comes to precision cutting of glass, the CKD Laser Glass Cutting Machine is the ideal choice. With its customizable work size, advanced safety features, and high precision laser cutting capabilities, this machine is perfect for a wide range of applications in various industries. Invest in the CKD Laser Glass Cutting Machine today and experience the ultimate in precision cutting technology.

Features:

• Product Name: Laser Glass Cutting Machine
• Environmental Conditions: Works Best In Temperatures Between 15°C And 30°C, With 20%-80% Relative Humidity, Suitable For Cleanrooms Or Industrial Environments
• Noise Level: Operating Noise Level Is 70dB, With A Built-in Silencing System, Suitable For Low-noise Environments.
• Cutting Precision: ±0.01mm
• Working Environment: 26℃
• Positioning Accuracy: ±2μm
• Features: Stained glass cutting machine, Thick glass laser cutting machine, colored glass cutting machine

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine is the perfect tool for cutting glass in various occasions and scenarios. This product is available in different models including CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50E, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80E, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80E, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80E, CKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80E, CKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. The product is made in China with ISO CE certification.

The CKD Laser Glass Cutting Machine is perfect for cutting ultra-clear glass with a single cut of up to 19mm thickness or blue glass with a double cut of up to 19mm thickness. This product is ideal for use in colored glass cutting machine applications. It has an adjustable cutting speed of 0-500mm/s, which makes it easy to adjust the speed according to the specific needs of the user. The product has several advantages including irregular-shape high-speed cutting, high cutting quality, no taper, no burr, small chipping, high yield rate, low consumables and energy-saving, no pollution, no powder, and no wastewater.

The CKD Laser Glass Cutting Machine comes with a water cooling system, which keeps the machine cool and prevents it from overheating during use. The product is customizable, with options available for table size, laser power (up to 500W), and special cutting heads (like for curved or micro-level cutting) to meet specific needs.

The CKD Laser Glass Cutting Machine is a single table glass cutting machine that is designed to provide high precision cutting with a high yield rate. It is suitable for use in various occasions and scenarios, and it is available at a negotiated price. The product is packed in wooden vacuum packaging to ensure that it is delivered safely to the customer. The delivery time for this product is 25-45 days, and it is available for purchase with a minimum order quantity of 1. The payment terms for this product include L/C and T/T, and it has a supply ability of 60 sets per month.
