Precision Metal Cutting Machine with Singapore Lens and Taiwan Hiwin Guide Rails

Precision Metal Cutting Machine with Singapore Lens and Taiwan Hiwin Guide Rails

  • Highlight

    Precision Metal Cutting Machine

    ,

    Singapore Lens Metal Cutting Machine

  • Software
    RD Metal Cutting
  • Mirror
    Singapore Lens
  • Guide Way
    Taiwan Hiwin Square Guide Rails
  • Condition
    New
  • Cutting Thickness
    Up To 20mm
  • Positioning Accuracy
    ±0.005mm
  • Moving Speed
    25m/min
  • Cooling Mode
    Water Cooling
  • Place of Origin
    CHINA
  • Brand Name
    CKD
  • Certification
    ISO CE FDA IEC RoHS FCC UL
  • Model Number
    CC-M3
  • Minimum Order Quantity
    1
  • Price
    $20000
  • Packaging Details
    Standard export wooden box or customized packaging
  • Delivery Time
    4-6 weeks after payment confirmation
  • Payment Terms
    T/T (Telegraphic Transfer), 50% deposit and 50% before shipment
  • Supply Ability
    50 units per month

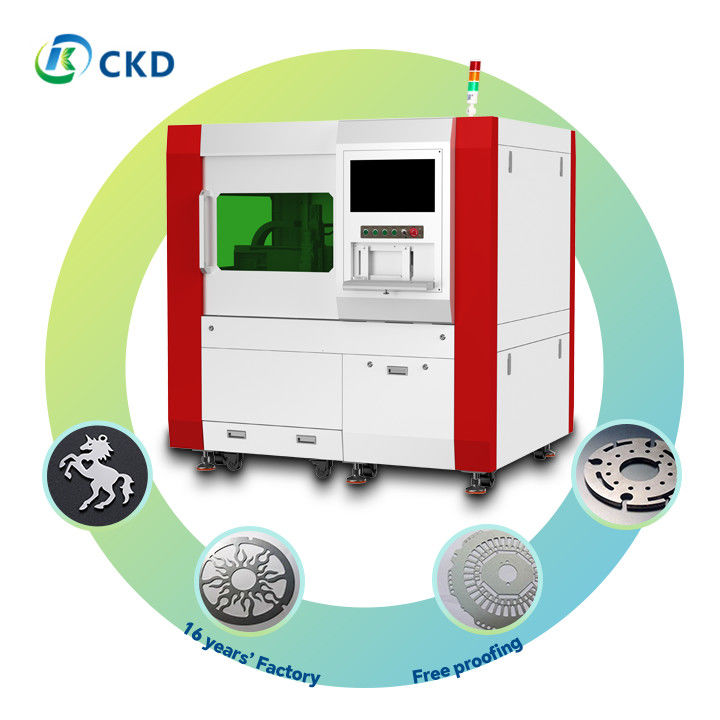

Precision Metal Cutting Machine with Singapore Lens and Taiwan Hiwin Guide Rails

Product Description:
Precision Metal Cutting Machine with Singapore Lens and Taiwan Hiwin Guide Rails 0

The machine is built with high-quality components that ensure precision and accuracy. The Taiwan Hiwin Square Guide Rails provide a stable and smooth movement for the laser head, allowing for precise cutting and reducing the risk of errors. The moving speed of the machine is up to 25m/min, making it ideal for high-volume production runs.

The Laser Metal Cutting Machine supports a range of file formats, including DXF, AI, and PLT, among others, making it easy to create designs and patterns for your cutting projects. The machine is also new, ensuring that it is in top condition and ready to deliver reliable performance right out of the box.

Overall, the Laser Metal Cutting Machine is a precision laser cutting machine that is perfect for cutting a wide range of materials, including metal and non-metal. With its high-quality components and support for various file formats, this machine is an excellent choice for anyone looking for a reliable and efficient cutting solution.



Features:

  • Product Name: Laser Metal Cutting Machine
  • Supported File Formats: DXF, AI, PLT, Etc.
  • Software: RD Metal Cutting
  • Cutting Thickness: Up To 20mm
  • Operating Humidity: 5-95%
  • Positioning Accuracy: ±0.005mm

This fiber laser metal cutting machine, also known as the Laser Metal Cutter, is a precision laser cutting machine that supports various file formats including DXF, AI, and PLT. With RD Metal Cutting software, this machine can cut through metal up to 20mm thick with a high level of accuracy, positioning within ±0.005mm. It can operate in humidity levels ranging from 5-95%, making it a reliable choice for industrial use.



Technical Parameters:

Cutting Thickness: Up To 20mm
Maximum Speed: 1000mm/min
Engraving Speed: 0-1500mm/s
Guide Way: Taiwan Hiwin Square Guide Rails
Operating Humidity: 5-95%
Belts: Taiwan Dongfeng Belts
Cooling Mode: Water Cooling
Software: RD Metal Cutting
Positioning Accuracy: ±0.005mm
Supported File Formats: DXF, AI, PLT, Etc.


Applications:

The CC-M3 Laser Metal Cutting Machine is ISO CE FDA IEC RoHS FCC UL certified, ensuring that it meets the highest standards of quality and safety. It has a minimum order quantity of 1 unit and is priced at $20000, making it a cost-effective solution for businesses of all sizes. The machine is supplied in standard export wooden boxes, or customized packaging, and has a delivery time of 4-6 weeks after payment confirmation. Payment terms are through T/T (Telegraphic Transfer) with a 50% deposit and 50% before shipment. The machine has a supply ability of 50 units per month.

The CC-M3 Laser Metal Cutting Machine is equipped with Taiwan Dongfeng belts that guarantee smooth and reliable operation. It has an engraving speed of 0-1500mm/s, allowing you to quickly and efficiently cut metal materials. The machine's water cooling system ensures that it operates at a consistent temperature and prevents overheating. The operating temperature range of this machine is 0 - 45°, which makes it suitable for a wide range of environments.

The CC-M3 Laser Metal Cutting Machine comes with RD Metal Cutting software, which is easy to use and allows you to create even the most complex cutting patterns. This software is compatible with most operating systems and requires minimal training to operate.

The CKD CC-M3 Laser Metal Cutting Machine is suitable for a wide range of applications, including metal fabrication, automotive parts manufacturing, and aerospace engineering. Its precision cutting capabilities make it ideal for creating intricate designs and patterns, while its quick cutting speed ensures that you can complete projects on time and within budget.

If you are looking for a high-quality metal laser cutting machine at an affordable price, the CKD CC-M3 Laser Metal Cutting Machine is an excellent choice. Its advanced features, reliable performance, and ease of use make it an essential tool for any business that requires precision metal cutting capabilities.
