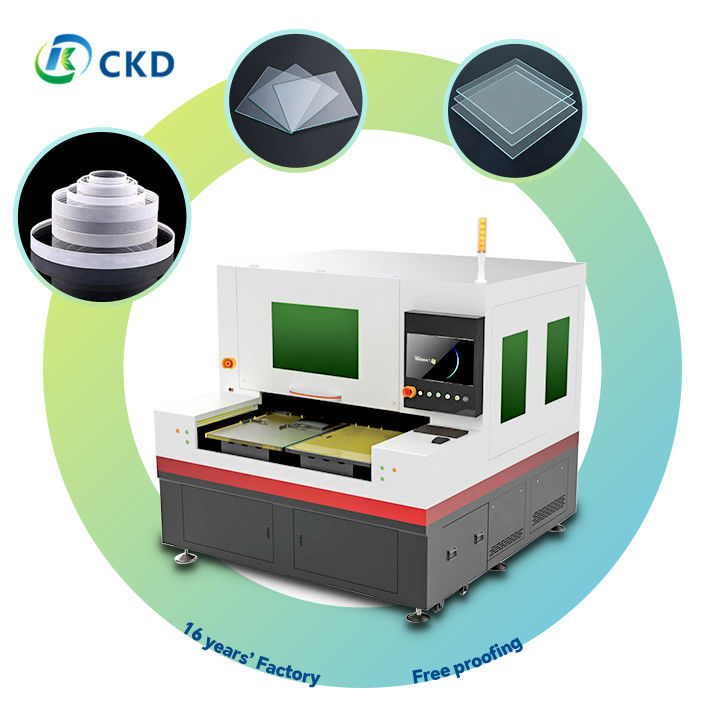

Custom Tempered Glass Laser Cutting Machine Precision Stained Glass Laser Cutting Machine

Product Description:

Operating best in temperatures between 15°C and 30°C, with 20%-80% relative humidity, this machine is designed to work in a wide range of environmental conditions. Whether you are working in a cleanroom or an industrial environment, this stained glass cutting machine is perfect for your needs.

The work size of this laser glass cutting machine is 610*700mm X 2, and is customizable to suit your specific needs. This means you can work on larger glass materials with ease and precision, making it perfect for stained glass cutting and other glass-related projects.

Equipped with heavy-duty wheels, this machine is easy to move and reposition, and comes with locking mechanisms for added stability during operation. This makes it easy to set up and use in a variety of different locations, without the need for additional equipment or tools.

With a wavelength of 1064nm, this thick glass laser cutting machine delivers high precision cutting that is both accurate and reliable. Whether you are working on delicate or thick glass materials, this machine ensures that your cuts are clean and precise, every time.

Features:

• Product Name: Laser Glass Cutting Machine
• Whether CNC: Yes
• Splitting Laser Source: RFC02 (Radio Frequency CO2) - RFC02 10.6μm 150W (options: 250W/350W) - 150W(250W/350W) 1-100kHz Water Cooling
• Cutting Area: 400mm*500mm/ 600*700mm/ 600*900mm
• Cutting Speed: Adjustable From 0-500mm/s
• Laser Type: Infrared Picosecond
• Thick glass laser cutting machine
• Fiber Laser Cutting Machine
• Optical glass Laser Cutting Machine

Technical Parameters:

Applications:

• Colored glass cutting machine: The CKD Glass Cutting and Splitting Machine (All-in-One) is perfect for cutting and splitting colored glass. The machine is equipped with a high-quality laser source that can cut through colored glass with ease, providing clean and precise cuts every time.
• Small glass laser cutting machine: The CKD Glass Cutting and Splitting Machine (All-in-One) is also an excellent option for cutting small glass pieces. The machine is designed to provide accurate and precise cuts, making it ideal for producing small glass parts for various applications.

The CKD Glass Cutting and Splitting Machine (All-in-One) is available in various models, including CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E.

The CKD Glass Cutting and Splitting Machine (All-in-One) is made in China and is certified with ISO and CE. The minimum order quantity is one, and the price is negotiable. The product is packaged in wooden vacuum packaging and can be delivered within 25-45 days. The payment terms are L/C and T/T, and the supply ability is 60 sets per month.

The CKD Glass Cutting and Splitting Machine (All-in-One) is equipped with a splitting laser source pulse frequency of 1-100kHz and weighs 3500kg. The machine is compatible with various automation systems and supports integration with major automation systems, including robot interfaces and automatic loading/unloading systems. Standard industrial communication protocols like Modbus and OPC are supported. The machine's wavelength is 1064nm, providing the perfect laser source for cutting and splitting glass materials.
