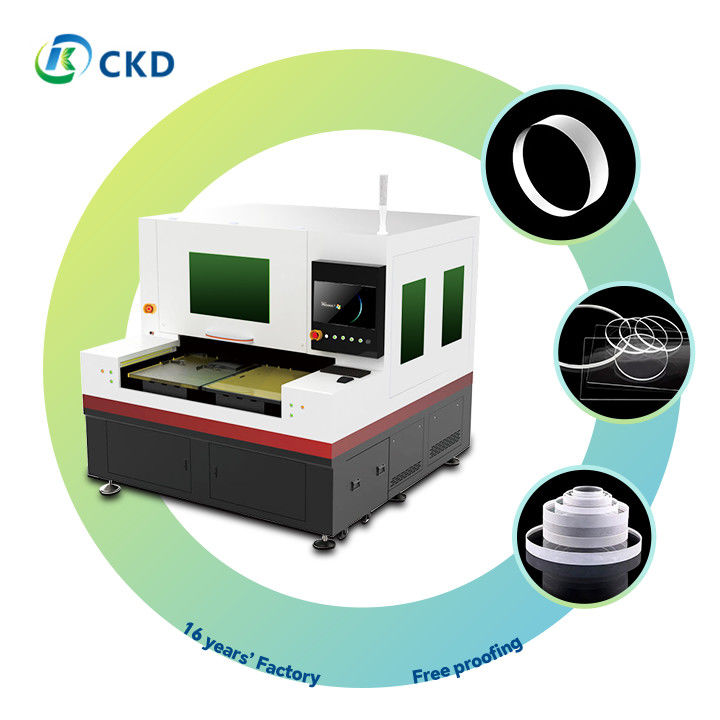

High-Performance Laser Glass Cutting Machine for Fast and Glass Cutting Solutions To Chipping ≤5μm
-
Drive MotorXY Linear Motor + Optical Grating Scale
-
MaterialGlass
-
Laser Wavelength1064nm
-
Work Size610*700mm X 2 Customizable
-
Key Selling PointsUltra Fast Picesecond
-
Working Frequency50HZ/60HZ
-
Weight3500kg
-
Pulse Frequency1Hz - 1000kHz
-
Machinery Efficiency0-500mm/s
-
Wavelength Coverage1064nm
-
Repeatability±1.5μm
-
Power SupplyAC 220V/380V, 50/60Hz
-
Cutting Width0.03-25mm
-
Pulse Width<10ps
-
Cutting Precision±0.01mm
-
MaterialsScreen Protector Glass
-
Optional AccessoriesRotary Attachment, Red Dot Pointer
-
Transmission SystemRack And Pinion
-
Minimum Cutting Burr≤5μm
-
Chipping≤5μm
-
Cutting Accuracy±0.01mm
-
Beam QualityM² < 1.2
-
Place of OriginChina
-
Brand NameCKD
-
CertificationISO CE
-
Model NumberCKD-DP6070C-50E CKD-DP6070C-60E CKD-DP6070C-80TE CKD-DP6070C-50ECKD-DP6070S-50E CKD-DP6070S-60E CKD-DP6070S-80TE CKD-DP6070S-80ECKD-DP6070D-50E CKD-DP6070D-60E CKD-DP6070D-80TE CKD-DP6070D-80ECKD-SP6070S-50E CKD-SP6070S-60E CKD-SP6070S-80TE CKD-SP6070S-80E
-
Minimum Order Quantity1
-
PriceNegotiated
-
Packaging DetailsWooden vacuum packaging
-
Delivery Time25-45 days
-
Payment TermsL/C, T/T
-
Supply Ability60sets per month
High-Performance Laser Glass Cutting Machine for Fast and Glass Cutting Solutions To Chipping ≤5μm
Product Description:
The Glass Cutting And Splitting Machine (All-in-One) is a versatile and efficient solution for cutting and splitting glass materials. Whether you are looking for an environmental protection glass laser cutting machine, a thick glass laser cutting machine, or a single table glass cutting machine, this product offers cutting-edge technology and precision.
With a cutting area of 400mm*500mm, 600*700mm, or 600*900mm, this machine provides ample space for various cutting projects. The splitting laser source cooling method uses water cooling, ensuring stable performance and durability over time.
The machine's chipping is minimized to ≤5μm, guaranteeing smooth and clean cuts for your glass materials. You can select the appropriate laser power from options ranging from 30w to 90w, depending on your cutting requirements.
Whether you are working on intricate designs or large-scale projects, the Glass Cutting And Splitting Machine (All-in-One) offers the flexibility and precision you need. Invest in this reliable machine to enhance your glass cutting capabilities and streamline your workflow.
Features:
- Product Name: Laser Glass Cutting Machine
- Control System: HTI Control
- Chipping: ≤5μm
- Advantages:
- Irregular-shape High-speed Cutting
- High Cutting Quality
- No Taper
- No Burr
- Small Chipping
- High Yield Rate
- Low Consumables And Energy-saving
- No Pollution
- No Powder
- No Wastewater
- Noise Level: Operating Noise Level Is 70dB, With A Built-in Silencing System, Suitable For Low-noise Environments.
- Material: Glass
Technical Parameters:
| Name | Glass Cutting And Splitting Machine (All-in-One) |
| Cutting Area | 400mm*500mm/ 600*700mm/ 600*900mm |
| Cutting Thickness | Ultra-clear Glass Single Cut ≤19mm, Blue Glass Double Cut ≤19mm |
| Whether CNC | Yes |
| Acceleration | 1G |
| Applicable Industries | Glassware Industry: Optical Glass, K9 Glass, And Ultra-thin Glass Houseware Industry: High-borosilicate Glass, Quartz Glass, Sanitary Ware Glass Vehicle Industry: Automotive Glass, Car Windshield, Etc. New Energy: Photovoltaic Glass Home Appliance: Home Appliance Glass, Panel Lighting Glass Real Estate: Architectural Decoration, Bathroom Glass, Etc |
| Applicable Materials | Ultra Clear Class, Plain White Glass High Borosilicate Glass, Quartz Glass Optical Glass, Cover Glass, Camera Glass Cover, Etc. Phone Glass Cover, Car Glass, Camera Glass Cover, Etc. LCD Screen, K9 Glass, Filter Cutting, Mirror Cutting, Etc |
| Beam Quality | M² < 1.2 |
| Pulse Width | <10ps |
| Working Frequency | 50HZ/60HZ |
Applications:
Product Application Occasions and Scenarios for CKD Glass Cutting And Splitting Machine (All-in-One):
The CKD Glass Cutting And Splitting Machine (All-in-One) is a versatile and high-quality product that can be used in a variety of application occasions and scenarios:
- Stained Glass Cutting: The laser glass cutting machine is ideal for cutting stained glass with precision and accuracy. Its advanced laser technology ensures clean and smooth cuts, making it perfect for creating intricate designs.
- Polygonal Glass Cutting: The CKD glass cutting machine is also suitable for cutting polygonal glass shapes. Whether you need to cut triangles, hexagons, or any other geometric shape, this machine can handle the job with ease.
- Environmental Protection Glass Laser Cutting: This laser glass cutting machine is environmentally friendly, thanks to its infrared picosecond laser type. It provides efficient and precise cutting while minimizing waste and energy consumption, making it a sustainable choice for glass cutting applications.
Key Product Attributes:
- Brand Name: CKD
- Model Number: CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, and more
- Place of Origin: China
- Certification: ISO CE
- Minimum Order Quantity: 1
- Price: Negotiated
- Packaging Details: Wooden vacuum packaging
- Delivery Time: 25-45 days
- Payment Terms: L/C, T/T
- Supply Ability: 60 sets per month
- Laser Type: Infrared Picosecond
- Wavelength: 1064nm
- Splitting Laser Source Cooling Method: Water Cooling
- Splitting Laser Source Laser Type: RFC02 (Radio Frequency CO2)
Our products are sold all over the world, you can rest assured.
