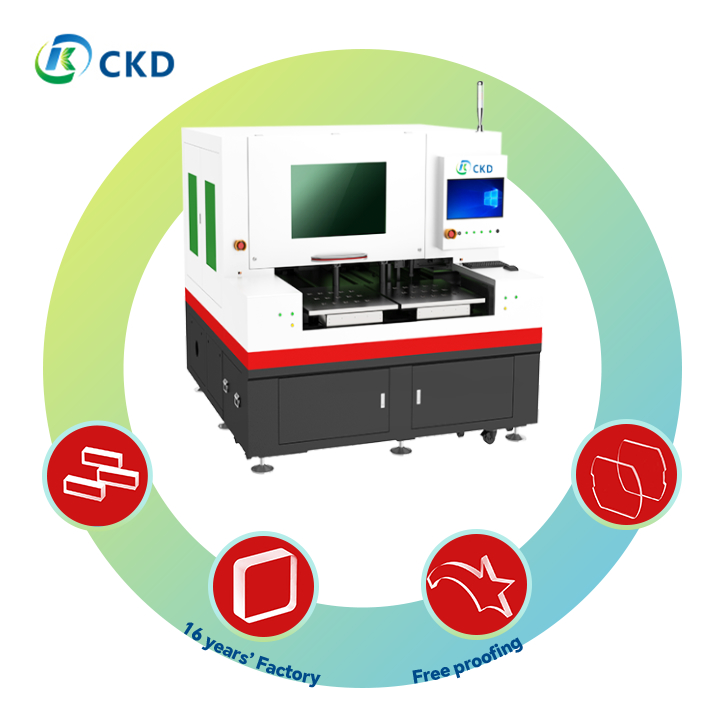

Versatile Laser Glass Cutting Machine for Various Glass Types and Applications To Speed 0-500mm/s

Product Description:

The Laser Glass Cutting Machine boasts a cutting width ranging from 0.03mm to 25mm, allowing you to tackle various glass thicknesses with ease. Whether you are working on intricate designs or large-scale projects, this machine offers the flexibility you need to bring your vision to life.

Operating in a comfortable working environment with a temperature of 26℃, this machine ensures optimal performance and reliability. Its low noise level of 70dB, coupled with a built-in silencing system, makes it suitable for use in low-noise environments, providing a quiet and efficient cutting experience.

Equipped with an Infrared Picosecond laser type, the Laser Glass Cutting Machine delivers high precision and speed, ensuring clean and accurate cuts every time. This advanced laser technology provides the precision and control required for intricate glass cutting tasks, making it ideal for a wide range of applications.

With a voltage requirement of less than 8KW and operating on AC220V, this machine is energy-efficient and cost-effective, allowing you to maximize productivity while minimizing energy consumption. Its powerful performance and efficiency make it a valuable addition to any workshop or production facility.

Whether you are a professional glass artist, a stained glass enthusiast, or a manufacturer in need of a reliable cutting solution, the Laser Glass Cutting Machine is the perfect choice. Its versatility, precision, and efficiency make it a top-of-the-line tool for all your glass cutting needs.

Experience the future of glass cutting technology with our Single Table Glass Cutting Machine. Elevate your craft and enhance your productivity with this cutting-edge machine that combines precision, speed, and reliability in one compact and user-friendly package.

Features:

• Product Name: Laser Glass Cutting Machine
• Features:
  • Impulse Frequency: 1-100kHz
  • Splitting Laser Source Power: 150W (options: 250W/350W)
  • Cutting Area: 400mm x 500mm / 600mm x 700mm / 600mm x 900mm
  • Dimension: 2150mm x 2080mm x 1960mm / 2550mm x 2080mm x 1960mm
  • Cutting Speed: Adjustable From 0-500mm/s
• Keywords: High Precision Laser Cutting Machine, Single Table Glass Cutting Machine, Environmental Protection Glass Laser Cutting Machine

Technical Parameters:

Applications:

CKD's optical glass Laser Cutting Machine is a versatile and efficient tool designed for precise cutting of glass materials. With models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, and many more, this product offers a wide range of options to suit different cutting needs.

Manufactured in China, this Laser Cutting Machine is certified with ISO and CE, ensuring high quality and reliability. The minimum order quantity is 1, and the price is negotiable, making it accessible for businesses of all sizes.

Thanks to its advanced technology, the CKD Laser Glass Cutting Machine delivers exceptional cutting precision with chipping of less than 5μm. The machine operates at a working voltage of 220V and a splitting laser source wavelength of 10.6µm, making it ideal for cutting optical glass with utmost accuracy.

Whether you need a Single Table Glass Cutting Machine or a multi-functional model like CKD-SP6070D-80E, this product is designed to meet various cutting requirements in industries such as electronics, construction, and automotive.

The Laser Cutting Machine comes packaged in wooden vacuum packaging for safe transportation and has a delivery time of 25-45 days. Payment terms include L/C and T/T, providing flexibility for customers. With a supply ability of 60 sets per month, CKD ensures timely delivery to meet high demands.

For businesses looking for a reliable and high-performance solution for glass cutting, CKD's optical glass Laser Cutting Machine is the perfect choice. Invest in this advanced technology to enhance your cutting processes and achieve outstanding results.

Customization:

Product Customization Services for the Stained glass cutting machine

Model Number: CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, CKD-SP6070C-80E

Place of Origin: China

Certification: ISO CE

Minimum Order Quantity: 1

Price: Negotiated

Packaging Details: Wooden vacuum packaging

Delivery Time: 25-45 days

Payment Terms: L/C, T/T

Supply Ability: 60sets per month

Drive motor: XY Linear Motor + Grating Ruler

Cutting Width: 0.03-25mm

Working Frequency: 50HZ/60HZ

Positioning Accuracy: ±2μm

Support image and text formats: AI PLT DXF BMP Dst DWg LAS DXP

Product customization services available for Irregular glass cutting and High Precision Laser Cutting Machine.

Support and Services:

The Product Technical Support and Services for the Laser Glass Cutting Machine include:

- Installation guidance and support to ensure proper setup of the machine.

- Training sessions for operators to learn how to operate the machine effectively.

- Troubleshooting assistance in case of any technical issues or malfunctions.

- Regular maintenance services to keep the machine in optimal working condition.

- Software updates and upgrades to improve machine performance and capabilities.
