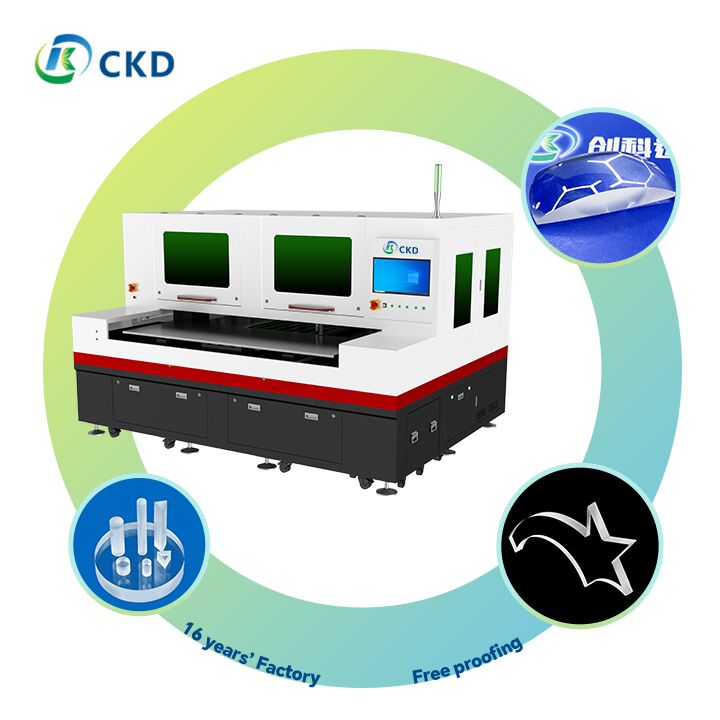

Revolutionize Your Glass Cutting Process with Advanced Laser Glass Cutting Machine To Accuracy±0.01mm

Product Description:

The Laser Glass Cutting Machine is a state-of-the-art solution designed to meet the demanding needs of modern glass processing industries. Engineered with precision and advanced technology, this machine excels in cutting various types of glass, including stained glass, polygonal glass, and optical glass, making it an indispensable tool for manufacturers and artisans alike. Its robust construction and innovative features ensure high efficiency, accuracy, and versatility in glass cutting applications.

With overall dimensions of 2150mm × 2080mm × 1960mm or alternatively 2550mm × 2080mm × 1960mm, the machine occupies a compact footprint while providing ample workspace for handling large glass sheets. This flexibility in size options allows it to fit seamlessly into different production environments, catering to both small-scale workshops and larger industrial facilities. The sturdy frame supports stable operation, minimizing vibrations and enhancing cutting precision.

One of the key performance highlights of this Laser Glass Cutting Machine is its impressive acceleration capability of 1G. This rapid acceleration enables swift and smooth movements during cutting processes, significantly reducing cycle times and boosting overall productivity. The high-speed operation does not compromise accuracy, thanks to the integration of premium components such as the TPI linear guide system. Renowned for its durability and smooth motion, the TPI linear guide ensures consistent, precise positioning along the cutting path.

The drive system incorporates advanced XY linear motors paired with a grating ruler feedback mechanism. This combination delivers exceptional control over the cutting head's movement, allowing for intricate and complex cutting patterns to be executed with micron-level accuracy. The linear motors provide direct drive power without the backlash and mechanical wear issues commonly found in traditional belt or gear-driven systems, resulting in longer service life and reduced maintenance requirements.

At the heart of the cutting process is the high-quality splitting laser source, the RFC02 Radio Frequency CO2 laser. Operating at a wavelength of 10.6μm, this laser source is available in multiple power configurations—150W standard, with optional upgrades to 250W or 350W—allowing customization based on specific cutting needs. The adjustable frequency range of 1-100kHz provides versatile control over laser pulse characteristics, enabling the machine to handle a wide variety of glass thicknesses and types with precision and minimal thermal damage.

The RFC02 laser source is water-cooled, ensuring stable operation and prolonging the lifespan of the laser components even during intensive cutting sessions. This cooling system maintains optimal temperature levels, preventing overheating and ensuring consistent laser output quality. As a result, the machine delivers clean, smooth cuts with minimal edge chipping or cracking, which is critical when working with delicate stained glass and optical glass materials.

Designed for versatility, this Laser Glass Cutting Machine is highly suitable for stained glass cutting applications, where intricate designs and delicate handling are paramount. It also excels as a polygonal glass cutting machine, capable of producing precise multi-sided glass components for architectural and decorative uses. Furthermore, its capabilities extend to optical glass laser cutting, providing manufacturers of lenses, prisms, and other optical components with a reliable and accurate cutting solution.

In summary, this Laser Glass Cutting Machine combines compact design, advanced acceleration, premium linear guides, and a powerful RFC02 CO2 laser source to deliver unparalleled performance in glass cutting. Its ability to efficiently and accurately process stained glass, polygonal glass, and optical glass makes it a versatile and valuable asset for any glass fabrication operation. Whether crafting artistic stained glass pieces or precision optical components, this machine offers the cutting-edge technology and reliability necessary to elevate production quality and efficiency.

Features:

• Product Name: Laser Glass Cutting Machine
• Small glass laser cutting machine designed for precision and efficiency
• Environmental protection glass laser cutting machine ensuring eco-friendly operation
• Safety Features:
  • Includes Emergency Stop Button for immediate shutdown
  • Protective Cover to prevent accidents during operation
  • Laser Safety Windows to shield operators from harmful laser exposure
  • Automatic Power-off when the cover is open for safe operation
• Beam Quality: M² < 1.2 for high precision cutting
• Impulse Frequency: 1-100kHz adjustable for various cutting requirements
• Control System: HTI Control for user-friendly and accurate machine operation
• Laser Type: RFC02 (Radio Frequency CO2) splitting laser source for reliable performance

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070S-60E, CKD-DP6070D-80TE, and CKD-SP6070C-80E, is a state-of-the-art solution designed to meet the diverse needs of modern glass processing industries. Originating from China and certified by ISO and CE, these machines are renowned for their exceptional performance and reliability. With a supply ability of 60 sets per month and a delivery time of 25-45 days, CKD ensures timely availability to support your production schedules.

These high precision laser cutting machines utilize a laser wavelength of 1064nm and employ water cooling methods to maintain optimal operating temperatures, ensuring consistent cutting quality and machine longevity. The advanced splitting laser source technology enables precise control over the cutting process, resulting in minimal chipping (≤5μm) and an ultra-low minimum cutting burr of ≤5μm. This level of precision is critical for industries requiring flawless glass edges and intricate designs.

The CKD Laser Glass Cutting Machines are particularly effective for irregular glass cutting, a task that demands high accuracy and flexibility. Whether you are working with curved, angled, or uniquely shaped glass pieces, these machines deliver clean, smooth cuts that meet stringent quality standards. This capability makes them ideal for applications in architectural glass fabrication, automotive glass manufacturing, decorative glass products, and specialty glass components.

Given their versatility, these cutting machines are widely used in scenarios such as custom glass furniture production, smart device screens, glass art installations, and precision optical components. The machines’ ability to handle complex shapes and delicate materials without compromising integrity makes them indispensable in both large-scale industrial settings and specialized workshops.

CKD offers flexible pricing through negotiation and requires a minimum order quantity of just one unit, making it accessible for businesses of all sizes. The packaging involves secure wooden vacuum packaging to ensure safe delivery. Payment terms include L/C and T/T, catering to various international trade requirements.

In summary, the CKD Laser Glass Cutting Machine series stands out as a reliable and efficient choice for anyone seeking a high precision laser cutting machine capable of performing irregular glass cutting with unmatched accuracy and quality. It is engineered to enhance productivity and elevate the quality of glass products across multiple industries.

Customization:

CKD offers customizable Laser Glass Cutting Machines designed to meet your precise needs. Our product line includes multiple models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070D-50E, and CKD-SP6070C-50E, among others, all originating from China. Each Single Table Glass Cutting Machine is certified under ISO and CE standards to ensure quality and reliability.

We specialize in Small Glass Laser Cutting Machines with exceptional cutting precision of ±0.01mm and chipping less than or equal to 5μm. Our machines operate with a splitting laser source pulse frequency ranging from 1 to 100kHz, powered by less than 8KW at AC220V working voltage.

Orders start from a minimum quantity of 1 unit, with pricing available through negotiation to best suit your requirements. All machines are carefully packed using wooden vacuum packaging to ensure safe delivery within 25 to 45 days. Payment terms include L/C and T/T options for your convenience.

With a supply ability of 60 sets per month, CKD guarantees timely fulfillment of your Single Table Glass Cutting Machine orders. Customize your laser cutting machine with us to experience superior performance in glass processing tailored to your business needs.

Support and Services:

Our Laser Glass Cutting Machine is designed to provide precise and efficient cutting solutions for various types of glass. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Technical Support:

Our team of experts is available to assist you with installation, setup, and troubleshooting. We provide detailed user manuals and operational guides to help you understand the functionalities and maintenance requirements of the machine. Should you encounter any issues, our support staff can guide you through diagnostic procedures and solutions.

Maintenance Services:

Regular maintenance is crucial for the smooth operation of the laser glass cutting machine. We offer scheduled maintenance services including cleaning, laser calibration, software updates, and component inspections to prevent downtime and extend the service life of your equipment.

Training Programs:

To maximize the benefits of your laser glass cutting machine, we provide training sessions for operators and technicians. These programs cover machine operation, safety protocols, routine maintenance tasks, and troubleshooting techniques.

Spare Parts and Upgrades:

We supply genuine spare parts and accessories to ensure compatibility and reliability. Additionally, we offer upgrade options to enhance the capabilities and efficiency of your existing machine.

Warranty and Repair:

Our products come with a standard warranty covering manufacturing defects. In case of any malfunction, our authorized service centers are equipped to perform repairs promptly using certified parts.

For detailed information on support services and to schedule maintenance or training, please refer to the documentation provided with your machine or visit our official website.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packaged to ensure safe delivery and prevent any damage during transit. It is securely wrapped with protective foam and bubble wrap around all delicate components. The machine is then placed inside a sturdy, custom-designed wooden crate or reinforced cardboard box, depending on the shipping requirements. All accessories, manuals, and cables are packed separately in labeled compartments within the package. Additionally, the packaging includes clear handling instructions and warning labels to ensure proper care.

Shipping:

We offer reliable shipping options worldwide to deliver the Laser Glass Cutting Machine safely to your doorstep. The product can be shipped via air freight, sea freight, or express courier services depending on the destination, urgency, and customer preference. All shipments are fully insured and tracked to provide real-time updates. Our logistics team coordinates with trusted carriers to ensure timely and secure delivery. Upon arrival, customers are advised to inspect the package for any visible damage before signing the delivery receipt.
