Laser Glass Cutting Machine featuring robust construction to withstand demanding industrial environments and continuous To Speed 0-500mm/s

Product Description:

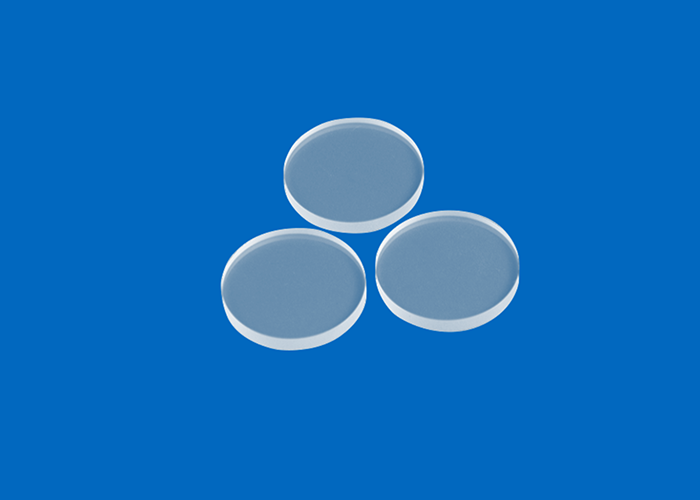

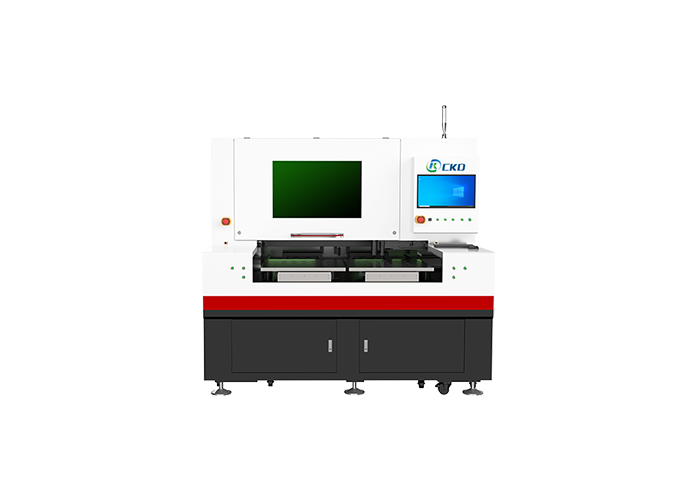

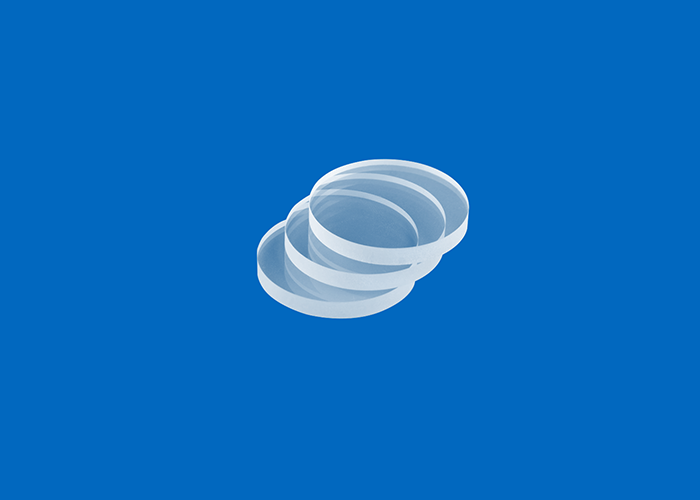

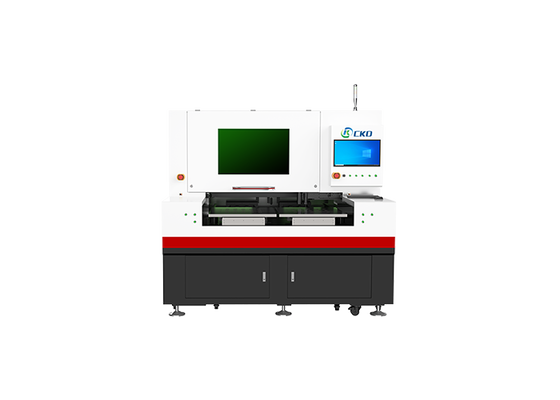

The Laser Glass Cutting Machine is an advanced and highly efficient tool designed specifically for precision cutting of optical glass. Engineered with cutting-edge technology, this optical glass Laser Cutting Machine ensures unparalleled accuracy and quality, making it an essential piece of equipment for industries requiring meticulous glass processing. Whether you are working on delicate optical components or high-precision glass products, this machine offers superior performance and reliability.

This Single Table Glass Cutting Machine features an infrared picosecond laser type which delivers ultra-short pulse widths of less than 10 picoseconds. This extremely short pulse duration allows for minimal heat impact on the glass, reducing the risk of thermal damage and ensuring clean, precise cuts. The infrared laser technology is ideal for processing various types of optical glass, enhancing the machine’s versatility and effectiveness in different applications.

One of the key attributes of this optical glass Laser Cutting Machine is its sophisticated water cooling system. The water cooling mechanism is designed to maintain the optimal operating temperature of 26℃, ensuring stable performance and extending the lifespan of the laser components. Effective cooling prevents overheating during prolonged use, which is critical for maintaining the consistency and accuracy of the cutting process.

Safety is a paramount concern in the design of this Single Table Glass Cutting Machine. It includes multiple safety features to protect operators and ensure safe operation. The machine is equipped with an emergency stop button, allowing users to immediately halt operations in case of any unexpected situation. Additionally, it has a protective cover and laser safety windows that shield operators from direct laser exposure, minimizing the risk of injury. An automatic power-off function activates as soon as the protective cover is opened, providing an extra layer of safety by preventing accidental laser emission.

The working environment for this optical glass Laser Cutting Machine is carefully controlled to maintain optimal conditions at 26℃. This stable environment helps in achieving consistent cutting quality, reducing the chances of errors caused by temperature fluctuations. The machine’s design incorporates features that support a clean and controlled workspace, further enhancing its suitability for precision tasks in optical glass manufacturing.

With its combination of advanced laser technology, precise control, and robust safety mechanisms, this Laser Glass Cutting Machine stands out as a top choice for industries involved in optical glass processing. Its single table design offers convenience and ease of use, allowing operators to handle glass pieces with stability and accuracy. Whether for research, manufacturing, or specialized glass cutting applications, this machine provides the reliability and precision required to meet stringent industry standards.

In summary, this optical glass Laser Cutting Machine offers a perfect blend of high performance, safety, and operational efficiency. The integration of an infrared picosecond laser with ultrafast pulse width, a reliable water cooling system, and comprehensive safety features makes it an indispensable tool for precision glass cutting. Its ability to maintain a controlled working environment at 26℃ further enhances the quality and consistency of the cutting process. For professionals seeking a dependable and precise Single Table Glass Cutting Machine, this product delivers exceptional value and performance.

Features:

• Product Name: Laser Glass Cutting Machine
• Wavelength: 1064nm
• Laser Type: RFC02 (Radio Frequency CO2) splitting laser source
• Cutting Thickness:
  • Ultra-clear Glass Single Cut ≤19mm
  • Blue Glass Double Cut ≤19mm
• Splitting Laser Source Specifications:
  • RFC02 10.6μm 150W (optional 250W/350W)
  • Power Range: 150W (options for 250W/350W)
  • Frequency: 1-100kHz
  • Cooling System: Water Cooling
• Positioning Accuracy: ±2μm
• Features:
  • High precision suitable for fiber laser cutting machine applications
  • Capable of handling thick glass laser cutting machine requirements
  • Designed as an environmental protection glass laser cutting machine

Technical Parameters:

Applications:

The CKD brand proudly presents the Glass Cutting And Splitting Machine (All-in-One), available in multiple models including CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070S-60E, and more. Originating from China and certified with both ISO and CE standards, these machines are designed to meet diverse glass cutting needs with exceptional precision and efficiency.

These high precision laser cutting machines excel in applications requiring meticulous cutting and splitting of various types of glass. Thanks to their adjustable cutting speed of 0-500mm/s and positioning accuracy of ±2μm, they are ideally suited for industries where accuracy and quality are paramount. The water cooling system ensures stable operation and prolonged machine life, while the rack and pinion transmission system guarantees smooth and reliable motion control.

One of the primary application occasions for the CKD polygonal glass cutting machine is in the production of architectural glass components. Whether crafting polygonal shapes for modern building facades or intricate glass panels for interior design, these machines provide clean, precise cuts without compromising the structural integrity of the glass. They are also widely used in the automotive industry, where environmental protection glass laser cutting machines are essential for producing safety glass and specialized automotive windows with complex geometries.

In addition, these machines are perfect for the electronics sector, where glass substrates for screens and displays require exact dimensions and flawless edges. The environmental protection features of the CKD laser cutting machines minimize waste and reduce emissions during the cutting process, making them an excellent choice for companies committed to sustainable manufacturing practices.

The versatility of CKD’s glass cutting and splitting machines extends to the production of decorative glass items, solar panels, and glass packaging. The all-in-one functionality allows manufacturers to streamline their production lines, reducing setup times and increasing throughput. With a supply ability of 60 sets per month and a delivery time of 25-45 days, businesses can rely on CKD for timely fulfillment of their orders, with minimum order quantities as low as one unit.

Overall, the CKD polygonal glass cutting machine and environmental protection glass laser cutting machine offer robust solutions for any glass cutting scenario requiring high precision, speed, and reliability. They represent the cutting edge of glass processing technology and are supported by flexible payment terms such as L/C and T/T, wooden vacuum packaging for safe transport, and competitive negotiated pricing tailored to customer needs.

Customization:

CKD offers comprehensive product customization services for our Laser Glass Cutting Machine series, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. Manufactured in China and certified with ISO and CE, these high precision laser cutting machines are designed to meet diverse customer requirements.

We provide customizable options including table size, laser power of up to 500W, and special cutting heads tailored for applications such as curved or micro-level cutting. These options allow our stained glass cutting machines and environmental protection glass laser cutting machines to be adapted perfectly to your specific production needs.

The machines feature a linear guide brand TPI for smooth and accurate operation, and operate at a noise level of 70dB with a built-in silencing system, making them suitable for low-noise working environments. Our supply ability is 60 sets per month with a minimum order quantity of 1 unit, ensuring flexibility and timely delivery within 25-45 days.

Packaging is done with wooden vacuum packaging to ensure safe transportation. Payment terms include L/C and T/T, with pricing negotiated to best fit your project scope. Trust CKD for reliable, customizable, and high precision laser cutting machines that enhance your glass cutting operations.

Support and Services:

Our Laser Glass Cutting Machine is designed to provide precise and efficient cutting solutions for various types of glass materials. To ensure optimal performance and longevity of your machine, please adhere to the following technical support and service guidelines.

Installation and Setup: Proper installation is crucial for machine accuracy. Ensure the machine is placed on a stable, level surface in a clean environment. Follow the user manual for electrical connections and initial calibration procedures.

Operation Training: We recommend that all operators receive comprehensive training on machine operation, safety protocols, and maintenance routines to maximize productivity and minimize risks.

Routine Maintenance: Regular cleaning of the laser lens and mirrors is essential to maintain cutting precision. Lubricate moving parts as specified in the manual and inspect mechanical components for wear periodically.

Software Updates: Keep the machine’s control software up to date to benefit from the latest features and improvements. Updates can be downloaded from our official website or provided through authorized service channels.

Troubleshooting: Common issues such as misalignment, inconsistent cutting quality, or laser power fluctuations can often be resolved by checking optical components and recalibrating the system. Refer to the troubleshooting section of the user manual for detailed guidance.

Spare Parts and Repairs: Use only genuine spare parts recommended by the manufacturer to ensure compatibility and safety. For repairs beyond routine maintenance, consult authorized service centers to avoid voiding the warranty.

Warranty and Support: The machine comes with a standard warranty covering manufacturing defects. For additional support, technical inquiries, or service requests, please refer to the support documentation provided with your purchase.

By following these guidelines, you can ensure that your Laser Glass Cutting Machine operates efficiently, safely, and with high precision throughout its service life.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packaged to ensure safe delivery. It is first wrapped in protective foam to prevent any damage during transit. The machine is then placed inside a sturdy wooden crate that is reinforced with metal brackets for added durability. All accessories, including the power cable, user manual, and installation tools, are securely packed in separate compartments within the crate. Additionally, the packaging is labeled with handling instructions such as "Fragile" and "Handle with Care" to alert shipping personnel.

Shipping:

We offer reliable shipping options worldwide with full tracking and insurance coverage. The Laser Glass Cutting Machine is shipped via trusted freight carriers using air or sea freight depending on the destination and customer preference. Prior to dispatch, the machine undergoes thorough inspection and testing to ensure it meets quality standards. Estimated delivery times vary based on location but typically range from 7 to 21 business days. Customers receive all necessary shipping documents and support throughout the delivery process to ensure a smooth and timely arrival.
