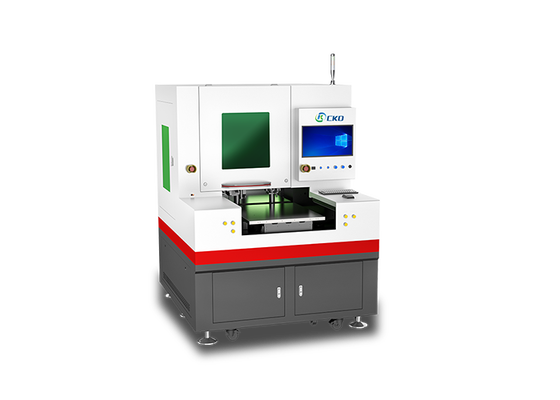

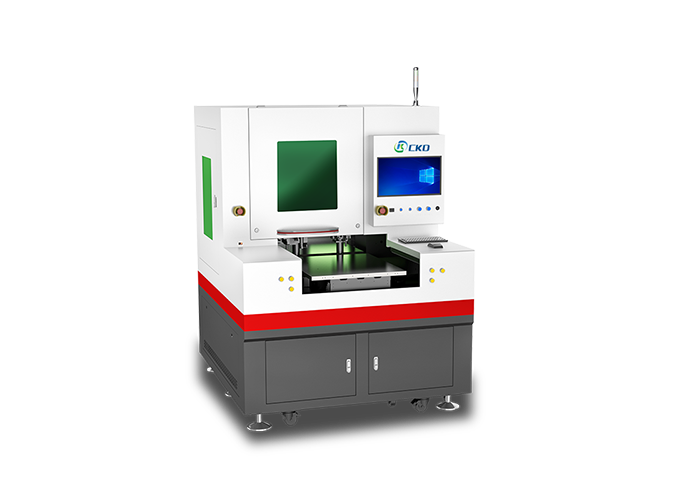

Laser Glass Cutting Machine featuring automated loading and unloading systems to streamline glass processing workflows To Chipping ≤5μm

Product Description:

The Laser Glass Cutting Machine is a state-of-the-art Fiber Laser Cutting Machine specifically designed for cutting glass materials with exceptional precision and efficiency. Built to handle the unique challenges associated with glass cutting, this High Precision Laser Cutting Machine offers unparalleled accuracy and smoothness, making it an ideal solution for industries requiring intricate and reliable glass cutting processes.

One of the standout features of this Laser Glass Cutting Machine is its advanced drive system, which incorporates XY Linear Motors combined with a Grating Ruler. This combination ensures extremely precise positioning and movement control, enabling the machine to execute complex cutting patterns with remarkable accuracy. Whether dealing with standard shapes or irregular glass cutting tasks, the machine maintains consistent performance, minimizing material waste and reducing the need for post-processing.

The machine utilizes ultra-short pulse laser technology with a pulse width of less than 10 picoseconds. This ultra-short pulse duration is critical in minimizing thermal effects on the glass, thereby reducing the risk of cracks, chips, or other damages commonly encountered with traditional cutting methods. The result is clean, smooth edges that require minimal finishing, which significantly improves overall production efficiency and product quality.

With an acceleration capacity of 1G, the Laser Glass Cutting Machine delivers rapid and responsive movements, allowing for faster cutting speeds without compromising on precision. This high acceleration capability contributes to higher throughput, making the machine well-suited for both small-scale custom jobs and high-volume manufacturing environments. The combination of speed and precision ensures that even the most intricate glass designs can be executed flawlessly.

Maintenance is a crucial aspect of ensuring consistent performance and longevity of the machine. The Laser Glass Cutting Machine requires recommended optical alignment every 200 hours of operation to maintain optimal laser focus and cutting quality. Additionally, coolant replacement every 1000 hours is advised to ensure the laser system remains effectively cooled, preventing overheating and potential damage. The machine also features regular remote diagnostics and software updates, allowing for proactive maintenance and quick troubleshooting, minimizing downtime and maximizing productivity.

Designed with user convenience in mind, the machine’s control system is intuitive and supports seamless integration with various CAD software, enabling operators to easily program irregular glass cutting paths and complex designs. This flexibility makes it an indispensable tool for industries such as architectural glass fabrication, automotive glass production, electronic device manufacturing, and decorative glasswork.

In summary, the Laser Glass Cutting Machine is an advanced Fiber Laser Cutting Machine tailored for glass materials that delivers high precision, efficiency, and reliability. Its cutting-edge XY Linear Motor and Grating Ruler drive system, ultra-short pulse laser technology with pulse widths under 10ps, and high acceleration of 1G combine to provide superior cutting quality, especially for irregular glass cutting applications. Coupled with practical maintenance recommendations and remote support features, this machine represents a significant advancement in laser glass cutting technology, ensuring that businesses can meet demanding production requirements with confidence and ease.

Features:

• Product Name: Laser Glass Cutting Machine
• Laser Source: RFC02 (Radio Frequency CO2)
• Cutting Speed: Adjustable from 0 to 500mm/s
• Beam Quality: M² < 1.2
• Voltage and Power: <8KW, AC220V
• Acceleration: 1G
• Specially designed as an optical glass Laser Cutting Machine
• Suitable for thick glass laser cutting machine applications
• Features a single table glass cutting machine design for efficient operation

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, and many others, is designed to meet a wide range of industrial glass cutting needs. Originating from China and certified with ISO and CE standards, this advanced equipment offers precision and efficiency for various glass processing applications. Whether you require a thick glass laser cutting machine for heavy-duty projects or a small glass laser cutting machine for delicate and intricate designs, CKD provides versatile solutions tailored to your requirements.

These machines utilize the cutting-edge RFC02 Radio Frequency CO2 laser source, delivering pulse widths of less than 10 picoseconds and pulse frequencies ranging from 1Hz to 1000kHz. This enables ultra-fine cutting with minimal chipping, reaching tolerances as low as ≤5μm, ensuring smooth and clean edges on both thick and thin glass materials. The CKD Laser Glass Cutting Machines support multiple image and text formats including AI, PLT, DXF, BMP, Dst, DWg, LAS, and DXP, making them compatible with various design software and workflows.

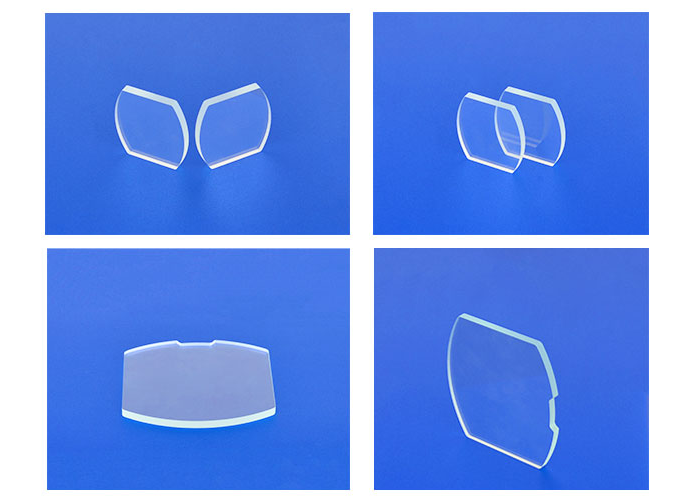

Ideal for industries such as automotive, electronics, architecture, and decorative glass manufacturing, the CKD series excels in precision glass cutting and engraving. The fiber laser cutting machine variants provide additional options for users who require high-speed cutting with exceptional accuracy on specialty glass types and composite materials. These machines are perfect for applications like glass panels, smartphone screens, mirrors, glass art, and more.

With a minimum order quantity of just one unit and competitive pricing available upon negotiation, CKD ensures accessibility for both small businesses and large manufacturing plants. The wooden vacuum packaging protects the equipment during shipping, and delivery is typically completed within 25-45 days. Payment terms are flexible, accepting L/C and T/T methods, while CKD maintains a robust supply capacity of 60 sets per month to meet market demands efficiently.

In summary, the CKD Laser Glass Cutting Machine lineup offers unparalleled precision, reliability, and versatility. Whether you need a thick glass laser cutting machine for robust industrial use, a small glass laser cutting machine for fine craftsmanship, or a fiber laser cutting machine for advanced applications, CKD’s models such as CKD-SP6070S-50E and CKD-DP6070S-80E deliver outstanding performance tailored to your glass cutting and processing needs.

Customization:

CKD offers a range of High Precision Laser Cutting Machines, including the Fiber Laser Cutting Machine and Polygonal Glass Cutting Machine models, designed to meet diverse cutting needs with exceptional accuracy and efficiency.

Our Laser Glass Cutting Machine series includes multiple models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070D-50E, and CKD-SP6070C-50E among others, all manufactured in China with ISO CE certification.

These models feature cutting areas ranging from 400mm*500mm up to 600mm*900mm, powered by less than 8KW with AC220V voltage, ensuring energy-saving operation without compromising performance.

The machines deliver cutting accuracy of ±0.01mm and acceleration up to 1G, making them ideal for irregular-shape, high-speed cutting tasks with high cutting quality. Benefits include no taper, no burr, small chipping, high yield rate, low consumable usage, and environmentally friendly operation with no pollution, powder, or wastewater.

We offer flexible customization options with a minimum order quantity of just 1 unit. Pricing is negotiable to suit your specific requirements. Packaging is done using wooden vacuum packaging to ensure safe delivery within 25-45 days.

Payment terms include L/C and T/T, and our supply ability is 60 sets per month, ensuring reliable and timely fulfillment of orders.

Choose CKD’s Laser Glass Cutting Machines for cutting-edge technology, superior precision, and customizable solutions tailored to your production needs.

Support and Services:

Our Laser Glass Cutting Machine is designed to provide precise and efficient cutting solutions for various types of glass. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Technical Support includes assistance with installation, setup, and calibration to help you get started quickly. Our team is available to guide you through troubleshooting, maintenance tips, and software updates to keep your machine running smoothly.

We provide detailed user manuals and video tutorials that cover all aspects of operating the Laser Glass Cutting Machine safely and effectively. Regular maintenance services are recommended to maintain cutting accuracy and extend the lifespan of the equipment.

In addition to remote support, we offer on-site service visits by certified technicians for repairs, part replacements, and performance optimization. Spare parts and consumables are readily available to minimize downtime.

Our goal is to ensure that your Laser Glass Cutting Machine operates at peak efficiency, delivering high-quality cuts with minimal waste. For any technical inquiries or service requests, please refer to your product documentation or support portal.

FAQ:

Q1: What are the available models of the CKD Laser Glass Cutting Machine?

A1: The CKD Laser Glass Cutting Machine is available in multiple models including CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070C-50E, and more to suit various cutting needs.

Q2: Where is the CKD Laser Glass Cutting Machine manufactured?

A2: The CKD Laser Glass Cutting Machine is manufactured in China.

Q3: What certifications does the CKD Laser Glass Cutting Machine have?

A3: The CKD Laser Glass Cutting Machine is certified with ISO and CE, ensuring high quality and safety standards.

Q4: What is the minimum order quantity and price for the CKD Laser Glass Cutting Machine?

A4: The minimum order quantity is 1 unit, and the price is negotiable depending on the model and order specifications.

Q5: What are the packaging and delivery details for the CKD Laser Glass Cutting Machine?

A5: The machines are securely packed using wooden vacuum packaging to ensure safe transportation. The typical delivery time ranges from 25 to 45 days after order confirmation.

Q6: What payment terms are accepted for purchasing the CKD Laser Glass Cutting Machine?

A6: We accept payment via L/C (Letter of Credit) and T/T (Telegraphic Transfer) for your convenience.

Q7: How many CKD Laser Glass Cutting Machines can you supply monthly?

A7: Our supply ability is up to 60 sets per month, ensuring steady availability for our customers.
