Laser Glass Cutting Machine with automated cutting path programming to increase efficiency and reduce manual intervention To Speed 0-500mm/s

Product Description:

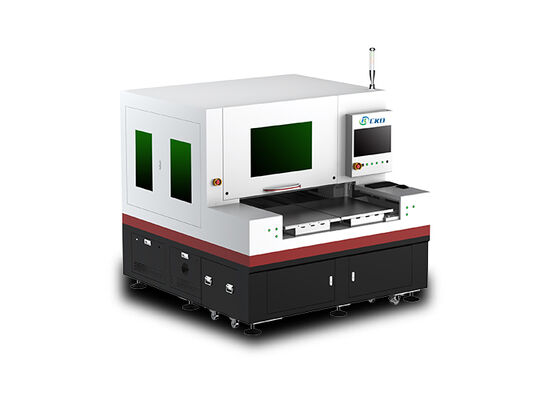

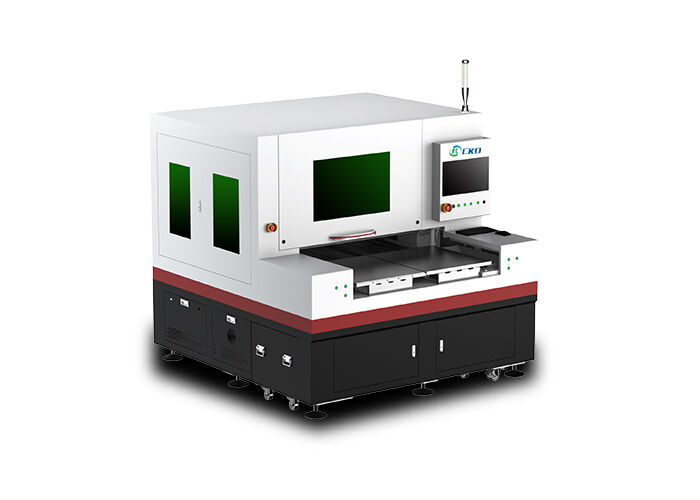

The CKD Laser Glass Cutting Machine is an advanced cutting-edge solution designed to meet the diverse needs of modern glass processing industries. Featuring an Infrared Picosecond laser type, this machine offers unparalleled precision and efficiency, making it ideal for a wide range of applications including irregular glass cutting, thick glass laser cutting, and small glass laser cutting tasks. Whether you are working with complex shapes or robust glass materials, the CKD Laser Glass Cutting Machine delivers consistent, high-quality results.

One of the standout features of this laser glass cutting machine is its highly adjustable cutting speed, which ranges from 0 to 500mm/s. This flexibility allows operators to optimize the cutting process depending on the thickness and type of glass being processed. The ability to finely tune the speed ensures minimal thermal damage and superior edge quality, which is essential when dealing with delicate or intricate glass designs. This adaptability makes the machine suitable for both high-speed production environments and precision-oriented custom cutting jobs.

The CKD Laser Glass Cutting Machine is equipped with a splitting laser source that operates at a pulse frequency between 1 and 100kHz. This wide frequency range enables the machine to handle a variety of cutting intensities and depths, offering enhanced control over the laser’s interaction with the glass surface. The precise pulse control reduces the risk of cracks and chips, making it especially effective for irregular glass cutting where precision and smooth edges are critical. The high-frequency laser pulses also contribute to faster processing times without compromising accuracy.

Despite its powerful capabilities, the machine maintains a robust yet manageable weight of 3500kg, ensuring stability during operation while remaining within a practical range for industrial installations. Its solid construction supports consistent performance and long-term durability, making it a reliable asset for any glass manufacturing or processing facility. The substantial weight also minimizes vibrations, which is crucial for maintaining cutting precision, especially when working with thick or small glass pieces.

Branding under CKD, a name synonymous with innovation and quality in industrial laser technology, this glass cutting machine benefits from extensive research and development. CKD’s commitment to excellence is reflected in the machine’s user-friendly interface, reliable performance, and comprehensive support services. Customers can expect not only a high-performance product but also dedicated assistance and maintenance options to ensure optimal operation throughout the machine’s lifecycle.

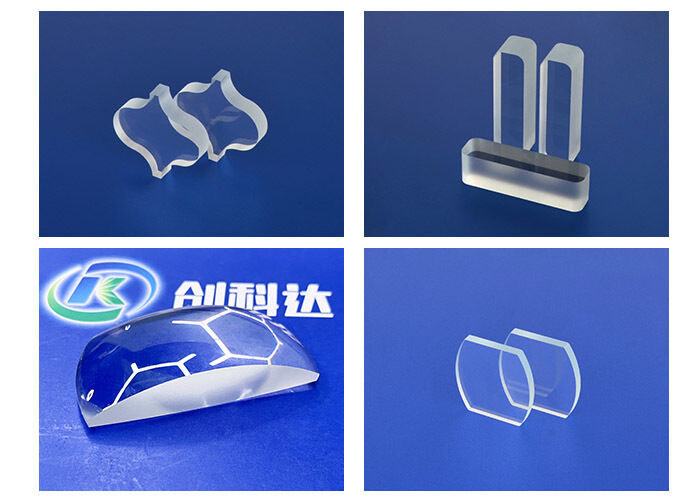

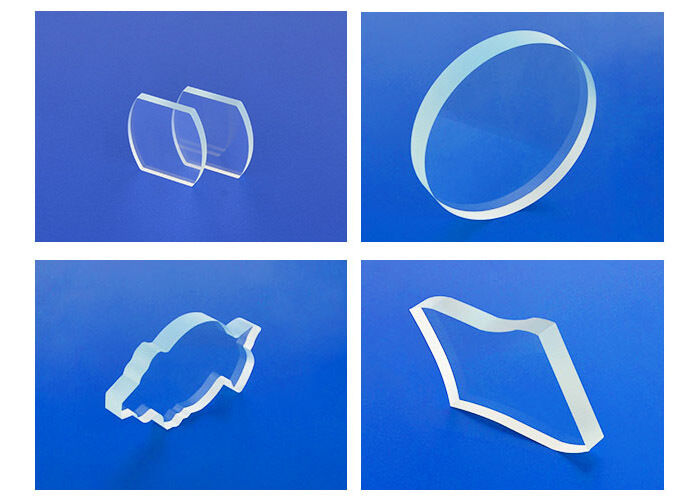

Designed for versatility, the CKD Laser Glass Cutting Machine excels in cutting irregular glass shapes that are often challenging for traditional cutting methods. Its laser precision enables clean, accurate cuts without the need for secondary finishing, which saves time and reduces waste. Additionally, the machine’s capability to handle thick glass materials expands its application range to sectors such as automotive, architecture, and specialty glass fabrication.

For businesses focused on small glass laser cutting, this machine offers exceptional control and finesse. Its fine laser beam and adjustable parameters make it possible to produce intricate designs and detailed patterns with minimal material loss. This makes it a preferred choice for manufacturers of decorative glass products, electronics, and precision instruments where small-scale glass components are essential.

In summary, the CKD Infrared Picosecond Laser Glass Cutting Machine is a versatile, high-performance tool engineered to meet the demanding requirements of modern glass cutting operations. With adjustable cutting speeds up to 500mm/s, a pulse frequency range of 1-100kHz, and a solid build weighing 3500kg, it is perfectly suited for irregular glass cutting, thick glass laser cutting, and small glass laser cutting applications. Backed by CKD’s reputable brand and cutting-edge technology, this machine provides a reliable, efficient, and precise solution for all your glass processing needs.

Features:

• Product Name: Laser Glass Cutting Machine
• Brand: CKD
• Material: Glass
• Type: Single Table Glass Cutting Machine
• Specialized Use: Stained Glass Cutting Machine
• Drive Motor: XY Linear Motor with Optical Grating Scale for precise positioning
• Cutting Speed: Adjustable from 0 to 500mm/s to suit different cutting requirements
• Compatibility: Supports integration with major automation systems, including robot interfaces and automatic loading/unloading systems
• Communication Protocols: Compatible with standard industrial communication protocols such as Modbus and OPC

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070S-60E, CKD-DP6070D-80TE, and CKD-SP6070C-80E, is designed to meet diverse industrial and commercial glass cutting needs. Originating from China and certified by ISO CE, these machines combine advanced technology with robust safety features, making them ideal for various application occasions and scenarios.

One of the primary application occasions for the CKD laser glass cutting machine is in the manufacturing of environmental protection glass. This machine excels in precision cutting of environmentally friendly glass materials, ensuring clean edges and minimal waste. The HTI control system enables seamless operation with a linear speed of up to 1000mm/s, which is essential for high-volume production environments that require both speed and accuracy.

In industries where thick glass cutting is required, models like the CKD-DP6070D-80TE and CKD-SP6070D-80E stand out. These thick glass laser cutting machines are designed to handle substantial glass thicknesses without compromising cutting quality. The TPI linear guide brand incorporated in these models ensures smooth and stable movements, which is critical for maintaining precision during the cutting process. The robust safety features, including an emergency stop button, protective cover, laser safety windows, and automatic power-off when the cover is opened, provide a secure working environment even during intensive operations.

For applications requiring smaller glass pieces, the small glass laser cutting machine variants such as CKD-DP6070S-50E and CKD-SP6070S-60E offer compact yet powerful solutions. These machines are perfect for industries producing small glass components for electronics, decorative items, or specialized glass products. Their compact design and vacuum wooden packaging ensure ease of installation and safe transportation, with delivery times ranging from 25 to 45 days.

The CKD laser glass cutting machines are also ideal for custom glass processing businesses, laboratories, and research institutions that demand precise cuts on various glass types and thicknesses. The machines support remote diagnostics and regular software updates, reducing downtime and ensuring continuous optimal performance. Maintenance is straightforward, with recommended optical alignment every 200 hours and coolant replacement every 1000 hours, enhancing the machine's longevity and reliability.

With a minimum order quantity of just one unit and flexible payment terms including L/C and T/T, the CKD laser glass cutting machines provide a cost-effective solution tailored to specific business needs. The supply ability of 60 sets per month ensures timely fulfillment for both small-scale and large-scale projects. Whether it's environmental protection glass laser cutting machine tasks, thick glass laser cutting machine requirements, or small glass laser cutting machine operations, CKD’s comprehensive range covers all scenarios with precision, safety, and efficiency.

Customization:

CKD offers a range of Laser Glass Cutting Machines, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50E, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80E, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80E, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80E, CKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80E, CKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E, all manufactured in China and certified with ISO CE standards.

This stained glass cutting machine is designed for precision and efficiency, featuring a cutting width range of 0.03-25mm and a high linear speed of up to 1000mm/s. Equipped with advanced XY linear motors and optical grating scales, it ensures accurate positioning and smooth operation.

As an environmental protection glass laser cutting machine, it includes a built-in silencing system that maintains an operating noise level of only 70dB, making it suitable for low-noise environments. The packaging is secured with wooden vacuum packaging to ensure safe delivery.

CKD's small glass laser cutting machine supports flexible order quantities with a minimum order of just 1 set and a supply ability of 60 sets per month. Delivery time ranges from 25 to 45 days, and pricing is negotiable to meet customer requirements.

Payment terms include L/C and T/T options, providing convenience and security. The product comes with a comprehensive 2-year warranty covering major components such as the laser source and control system, along with 24/7 technical support offering both remote and on-site service options.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packed using high-quality, durable materials to ensure maximum protection during transit. The machine is first covered with anti-static foam and bubble wrap to prevent any damage from shocks or vibrations. It is then securely placed inside a sturdy wooden crate that is reinforced with metal brackets for added stability. All loose parts and accessories are packed separately in labeled boxes within the crate. The packaging is designed to be moisture-resistant and includes clear handling instructions and warning labels to ensure safe transport.

Shipping:

We offer reliable shipping options to deliver the Laser Glass Cutting Machine safely to your doorstep. The machine is shipped via trusted freight carriers with tracking available for all shipments. Depending on the destination, we provide air freight, sea freight, or land transportation to ensure timely delivery. Our logistics team coordinates the shipping process, including customs clearance and documentation, to minimize delays. Upon arrival, customers are advised to inspect the packaging and machine carefully and report any damages immediately.
