CNC Laser Glass Cutting Machine Featuring Water Cooling Splitting Laser Source Compatible With Popular CAD CAM Software Like AutoCAD

Product Description:

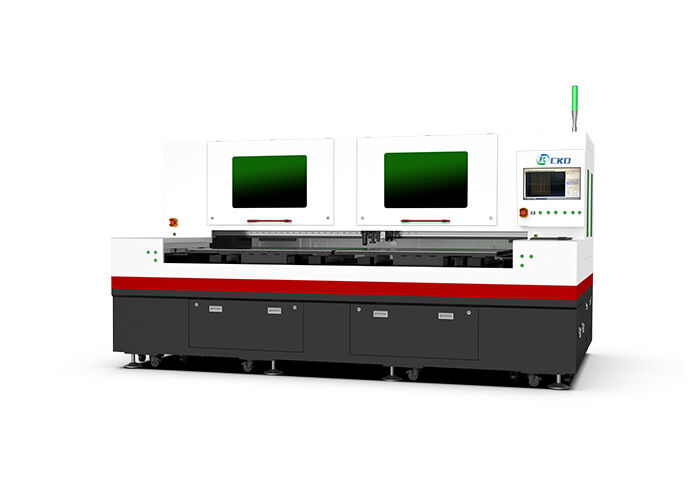

The Laser Glass Cutting Machine is an advanced piece of equipment designed to meet the demanding needs of modern industrial applications. This environmental protection glass laser cutting machine combines cutting-edge technology with precision engineering to deliver exceptional performance and reliability. It is specifically engineered to provide high-quality cuts on various glass materials, making it an indispensable tool for manufacturers and fabricators who prioritize accuracy and efficiency.

One of the standout features of this high precision laser cutting machine is its superior beam quality, characterized by a beam parameter M² of less than 1.2. This excellent beam quality ensures a highly focused laser spot, resulting in clean, precise cuts with minimal thermal damage to the surrounding material. Such precision is crucial when working with delicate glass substrates, where even the slightest imperfections can compromise the overall product quality.

The machine boasts a remarkable linear speed of up to 1000mm/s, enabling rapid processing without sacrificing accuracy. This high-speed capability significantly enhances productivity, allowing users to complete large-scale cutting tasks efficiently. Whether producing intricate shapes or straight-line cuts, the environmental protection glass laser cutting machine maintains consistent performance, ensuring every cut meets stringent quality standards.

Flexibility is another key advantage of this laser glass cutting machine. It offers multiple cutting area options, including 400mm by 500mm, 600mm by 700mm, and 600mm by 900mm. These variations accommodate different project sizes and requirements, providing users with the versatility needed to handle diverse applications. From small, detailed components to larger glass panels, the machine adapts seamlessly to varying workloads.

Maintaining a minimum cutting burr of ≤5 micrometers, this cutting machine produces exceptionally smooth edges. Minimal burr formation reduces the need for secondary finishing processes, saving time and resources. The precision of the cuts also enhances the aesthetic appeal of the finished products, which is especially important in industries where visual quality is paramount.

At the heart of the machine’s precise movements is the innovative drive system, consisting of an XY linear motor coupled with an optical grating scale. This combination ensures high accuracy and repeatability in positioning, enabling the laser to follow complex cutting paths with ease. The linear motors provide smooth, vibration-free motion, while the optical grating scale offers real-time feedback for precise control. Together, they contribute to the overall reliability and stability of the high precision laser cutting machine.

Beyond its technical specifications, the environmental protection glass laser cutting machine is designed with sustainability in mind. It operates with minimal waste generation and energy consumption compared to traditional cutting methods. This focus on environmental responsibility makes it an excellent choice for companies committed to reducing their ecological footprint without compromising on performance.

In summary, the Laser Glass Cutting Machine is a powerful, versatile, and environmentally friendly solution for glass processing. Its combination of superior beam quality, high linear speed, versatile cutting area options, minimal burr production, and advanced drive motor technology makes it an ideal choice for industries requiring precise and efficient glass cutting. By investing in this environmental protection glass laser cutting machine, businesses can enhance their production capabilities while promoting sustainable manufacturing practices.

Features:

• Product Name: Laser Glass Cutting Machine
• Cutting Area Options: 400mm x 500mm, 600mm x 700mm, 600mm x 900mm
• CNC Controlled: Yes, ensuring precise and automated operation
• High Positioning Accuracy: ±2μm for detailed and exact cuts
• Excellent Cutting Accuracy: ±0.01mm, suitable for delicate glass materials
• Safety Features: Equipped with an Emergency Stop Button, Protective Cover, Laser Safety Windows, and Automatic Power-off when the cover is opened for safe operation
• Ideal for Small Glass Laser Cutting Machine applications
• Specialized for Optical Glass Laser Cutting Machine tasks
• Capable of handling Colored Glass Cutting Machine requirements

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070S-60E, and many others, is a state-of-the-art solution designed for a wide range of glass cutting applications. Originating from China and certified with ISO and CE standards, these machines offer unparalleled precision and efficiency for industries requiring high-quality glass processing.

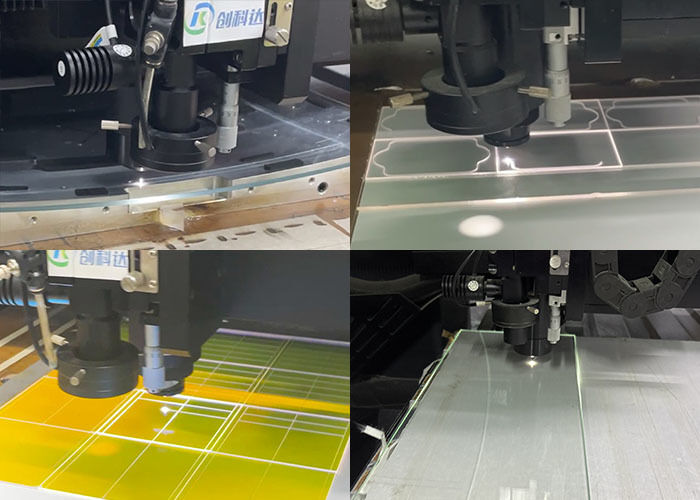

One of the primary application occasions for the CKD Laser Glass Cutting Machine is in the production of stained glass artworks. The stained glass cutting machine capabilities allow artisans and manufacturers to achieve intricate designs with minimal cutting burrs (≤5μm), ensuring smooth edges and precise shapes. This is especially important for decorative glass panels, architectural embellishments, and custom artistic creations where accuracy and aesthetic quality are paramount.

The polygonal glass cutting machine functionality of the CKD models is ideal for cutting complex polygonal shapes commonly used in modern architectural glass installations, automotive glass, and specialized industrial glass components. With a cutting thickness range of 0.03 to 25mm and a pulse width of less than 10ps, the machines enable clean, high-speed cuts without compromising the integrity of the glass. The acceleration of 1G further supports rapid and precise movements during cutting operations, increasing productivity and reducing turnaround times.

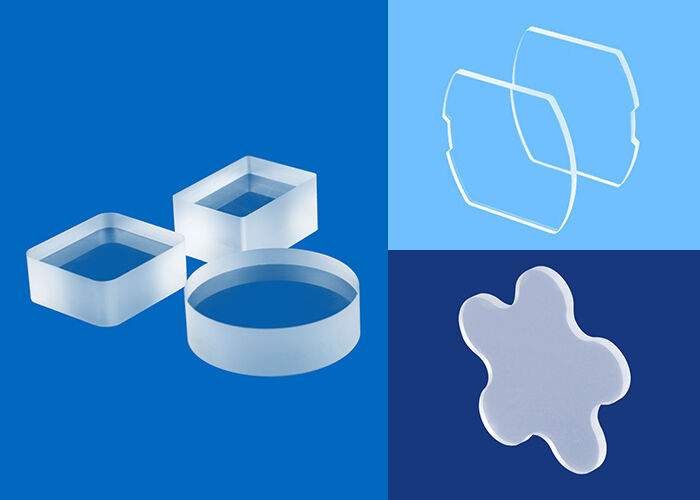

High precision laser cutting machines like those in the CKD series are indispensable in scenarios where exact measurements and flawless edges are critical. Applications include the manufacture of glass lenses, electronic displays, solar panels, and other high-tech glass products. The 1064nm wavelength laser technology ensures optimal absorption by the glass material, resulting in minimal thermal damage and superior cut quality.

CKD Laser Glass Cutting Machines are also highly suitable for both small batch and large-scale production environments. With a supply ability of 60 sets per month and flexible payment terms such as L/C and T/T, CKD can cater to diverse customer needs. Additionally, the machines come with wooden vacuum packaging to ensure safe delivery within 25-45 days, making them reliable choices for international markets.

Whether you need a stained glass cutting machine for artistic projects, a polygonal glass cutting machine for architectural glass, or a high precision laser cutting machine for industrial glass fabrication, the CKD series offers versatile and advanced solutions. With a minimum order quantity of just one unit and prices available upon negotiation, CKD provides accessible, high-quality laser glass cutting technology tailored to your specific application scenarios.

Customization:

CKD offers a range of Laser Glass Cutting Machines including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50E, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80E, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80E, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80E, CKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80E, CKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E, all manufactured in China with ISO and CE certification.

Our small glass laser cutting machine and thick glass laser cutting machine are designed to provide cutting precision of ±0.01mm, suitable for ultra-clear glass single cuts up to 19mm and blue glass double cuts up to 19mm. Additionally, our colored glass cutting machine models feature customizable options including table size, laser power up to 500W, and special cutting heads for curved or micro-level cutting to meet specific customer needs.

All machines come with wooden vacuum packaging and have a delivery time of 25-45 days. We accept payment terms including L/C and T/T, with a minimum order quantity of 1 set and pricing available upon negotiation. Our supply ability reaches 60 sets per month, ensuring timely fulfillment of orders.

Maintenance requirements for these laser glass cutting machines include optical alignment every 200 hours and coolant replacement every 1000 hours. We also offer regular remote diagnostics and software updates to maintain optimal machine performance.

These laser glass cutting machines support seamless integration with major automation systems, including robot interfaces and automatic loading/unloading systems. They are compatible with standard industrial communication protocols such as Modbus and OPC, enhancing compatibility and efficiency in automated production environments.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packaged to ensure it arrives in perfect condition. Each unit is securely placed in a sturdy wooden crate with foam padding to protect against shocks and vibrations during transit. All fragile components are individually wrapped with protective materials. The packaging is designed to be moisture-resistant and suitable for long-distance shipping, providing maximum safety and security.

Shipping:

We offer multiple shipping options to meet your needs, including air freight, sea freight, and express courier services. The Laser Glass Cutting Machine is shipped with clear handling instructions and is insured to guarantee safe delivery. Tracking information will be provided once the product is dispatched, and our logistics team ensures timely and efficient delivery to your specified location.
