Laser Glass Cutting Machine providing precise control over cutting speed and power to accommodate delicate glass materials To Accuracy±0.01mm

Product Description:

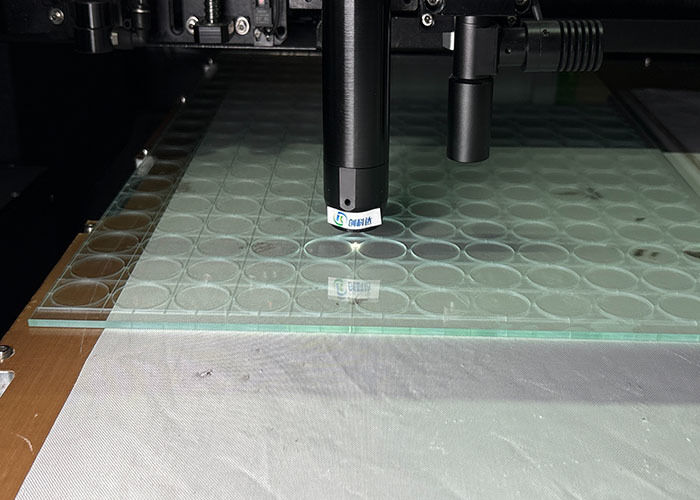

This device is an efficient cutting device that uses high-energy lasers to cut glass. The cutting is aimed at shape processing and CO2 laser assisted splitting is used to achieve glass cutting and splitting. Laser instant focusing, precise energy release, CCD visual positioning, one-time shaping of circular, square, complex patterns, etc. Cutting accuracy ± 0.01mm, edge breakage ≤ 5 μ m.

Technical Parameters:

Applications:

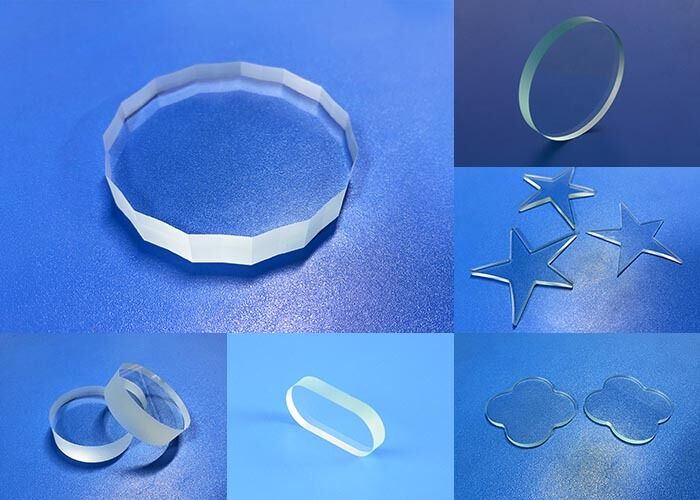

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.

Introduction to the company:

CKD offers a range of High Precision Laser Cutting Machines, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. These Small glass laser cutting machines are designed and manufactured in China with ISO and CE certification to ensure quality and reliability.

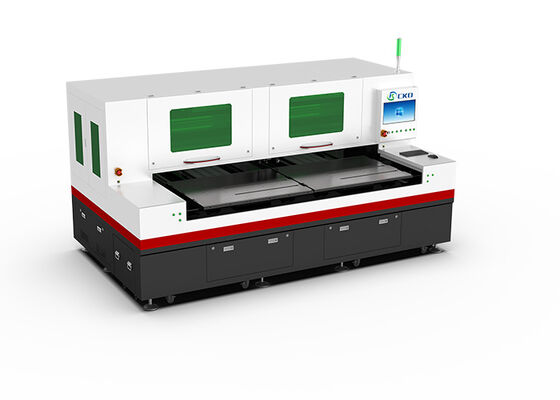

Each optical glass Laser Cutting Machine is equipped with an XY Linear Motor and Grating Ruler drive motor, providing ultra-fast picosecond cutting performance. The machines operate on a 220V working voltage and feature heavy-duty wheels with locking mechanisms for easy mobility and stable positioning.

With a minimum order quantity of just 1 set, CKD offers flexible pricing that is negotiable to meet your project needs. Packaging is done with wooden vacuum packaging to ensure safe delivery, and the delivery time ranges from 25 to 45 days. Payment terms include L/C and T/T, supporting convenience and security in transactions.

The Laser Glass Cutting Machines boast several advantages, including the ability to cut irregular shapes at high speed with exceptional cutting quality, leaving no taper, burr, or significant chipping. These machines deliver a high yield rate with low consumables, are energy-saving, and produce no pollution, powder, or wastewater, making them environmentally friendly and cost-effective.

CKD’s supply ability is 60 sets per month, ensuring timely availability for your production demands. Whether you require a High Precision Laser Cutting Machine for industrial use or a Small glass laser cutting machine for specialized optical glass applications, CKD provides a reliable and advanced solution tailored to your needs.

Packing and Shipping:

Product Packaging: The Laser Glass Cutting Machine is carefully packaged using sturdy, high-quality wooden crates to ensure maximum protection during transit. Inside the crate, the machine is securely fastened with foam padding and shock absorbers to prevent any movement or damage. All delicate components are wrapped with protective materials, and the exterior of the packaging is clearly labeled with handling instructions and fragile warnings.

Shipping: We offer reliable shipping options worldwide, including air freight, sea freight, and land transportation, tailored to meet your delivery requirements. The Laser Glass Cutting Machine is dispatched promptly after order confirmation and quality checks. Tracking information is provided to keep you updated on the shipment status. Our logistics partners ensure timely and safe delivery to your specified location, with customs documentation and support provided for international shipments.
