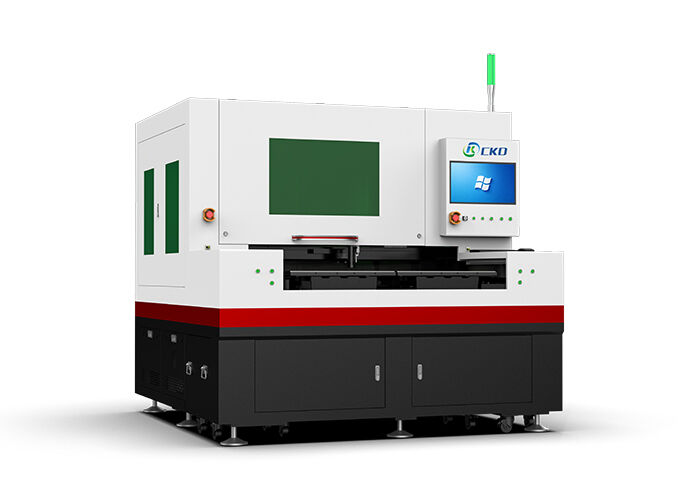

Working Environment 26 Degrees Single Table Glass Cutting Machine Providing Beam M2 Below 1.2 Ideal for Glass Processing Applications To Accuracy±0.01mm

Product Description:

This device is an efficient cutting device that uses high-energy lasers to cut glass. The cutting is aimed at shape processing and CO2 laser assisted splitting is used to achieve glass cutting and splitting. Our laser glass cutting equipment is suitable for cutting various brittle glasses, and the laser beam non-contact cutting avoids mechanical stress. Irregular high-speed cutting, with ultra-high cutting accuracy of ± 0.01 millimeters and edge breakage ≤ 5 microns. With advantages such as high precision, low damage, and efficient production, it has become a key process in fields such as optics, electronics, and healthcare.

Features:

• Product Name: Laser Glass Cutting Machine
• Model: Glass Cutting And Splitting Machine (All-in-One)
• Laser Source Wavelength: 10.6µm
• Impulse Frequency: 1-100kHz
• Cutting Width Range: 0.03-25mm
• Customizable Options Available:
  • Table Size
  • Laser Power (up to 500W)
  • Special Cutting Heads (for curved or micro-level cutting)
• Ideal for Irregular Glass Cutting
• Functions as a Stained Glass Cutting Machine
• Compact and Efficient Small Glass Laser Cutting Machine

Technical Parameters:

Applications:

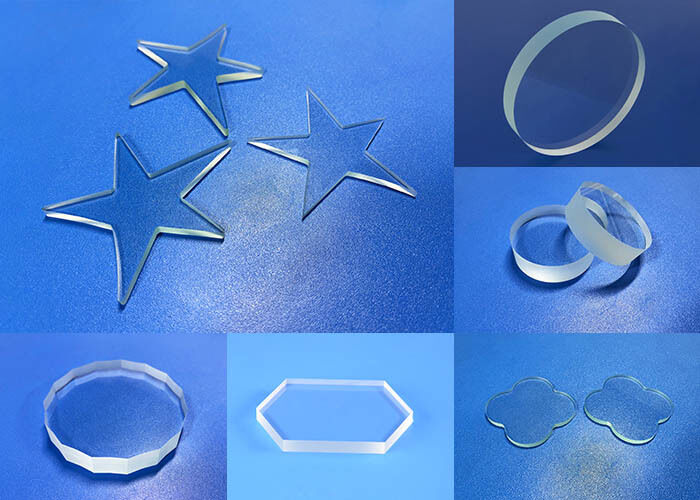

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.

Introduction to the company:

Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.

The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.

Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.
