Laser Glass Cutting Machine offering flexible programming options and compatibility with various glass thicknesses and types To Accuracy±0.01mm

Product Description:

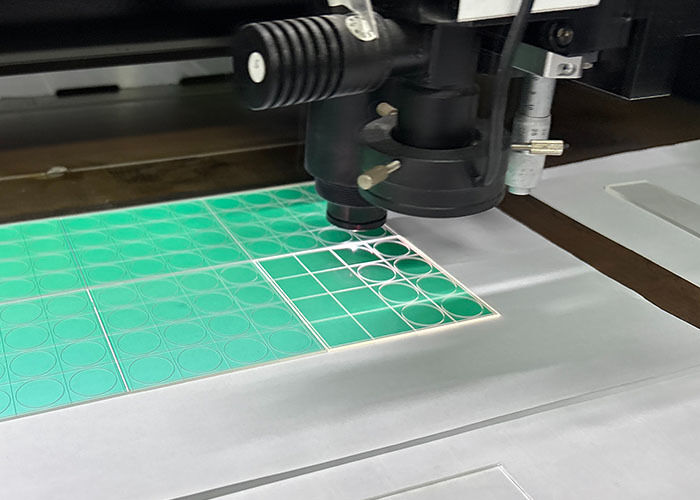

This device is an efficient cutting device that uses high-energy lasers to cut glass. The cutting is aimed at shape processing and CO2 laser assisted splitting is used to achieve glass cutting and splitting. Our laser glass cutting machine is equipped with a programmable numerical control system that supports cutting complex shapes such as curves and irregular shapes, meeting the customized needs of high-end building curtain walls, art decoration, and other fields. Alien high-speed cutting, with ultra-high cutting accuracy of ± 0.01 millimeters and edge breakage ≤ 5 microns, does not require subsequent polishing or grinding processes, and is widely used in fields such as construction, automotive, and electronics.

Features:

• Product Name: Laser Glass Cutting Machine
• Model: Glass Cutting And Splitting Machine (All-in-One)
• Splitting Laser Source: RFC02 (Radio Frequency CO2) - 10.6μm wavelength
• Laser Power Options: 150W (standard), with optional 250W or 350W
• Laser Frequency: 1-100kHz
• Cooling System: Water Cooling for stable operation
• Drive Motor: XY Linear Motor combined with Optical Grating Scale for precise movement
• Weight: 3500kg
• Designed as a Thick Glass Laser Cutting Machine for robust glass processing
• Environmental Protection Glass Laser Cutting Machine ensuring eco-friendly operation
• High Precision Laser Cutting Machine delivering accurate and clean cuts

Technical Parameters:

Applications:

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.

Introduction to the company:

Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.

The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.

Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packaged to ensure it reaches you in perfect condition. The machine is securely placed in a sturdy wooden crate with foam padding to protect against shocks and vibrations during transit. All delicate components are individually wrapped and cushioned. The packaging is designed to be moisture-resistant and includes clear labeling for handling instructions.

Shipping:

We offer reliable shipping options worldwide. The Laser Glass Cutting Machine will be shipped via trusted freight carriers with full tracking and insurance coverage. Depending on your location, shipping times typically range from 7 to 21 business days. Our logistics team ensures timely dispatch and provides you with all necessary documentation, including packing lists and customs paperwork, to facilitate smooth delivery.
