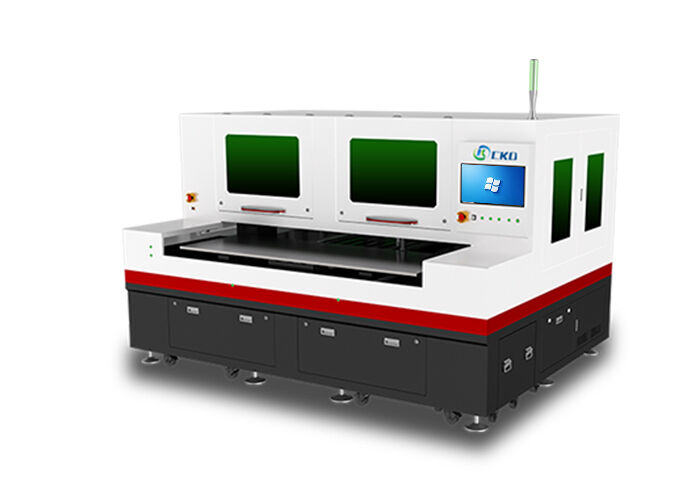

Laser Glass Cutting Machine designed for integration into automated production lines enhancing glass cutting productivity To Speed 0-500mm/s

Product Description:

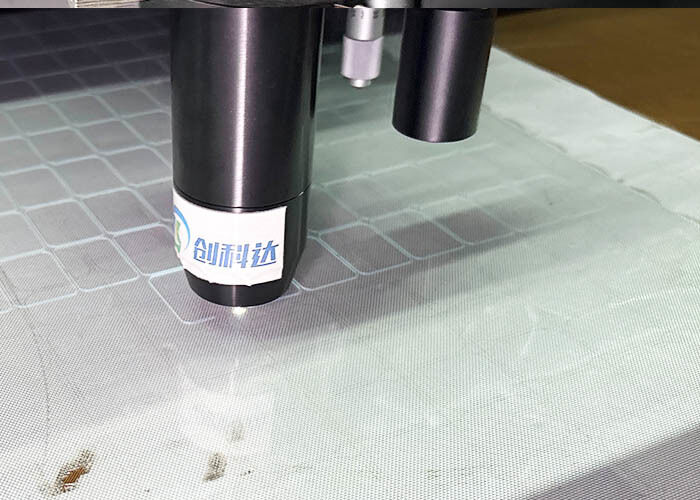

This device is an efficient cutting device that uses high-energy lasers to cut glass. The cutting is aimed at shape processing and CO2 laser assisted splitting is used to achieve glass cutting and splitting. Our laser glass cutting machine has a cutting accuracy of up to 0.01mm, with edge chipping controlled within 5 μ m. The laser can accurately control the curve trajectory, ensuring the geometric integrity and edge quality of square and other shapes. The cutting edge is smooth and flat, without burrs or small chipping, and does not require subsequent polishing or grinding processes.

Features:

• Product Name: Laser Glass Cutting Machine
• Environmental protection glass laser cutting machine designed for precision and efficiency
• Small glass laser cutting machine suitable for various glass types and thicknesses
• Equipped with heavy-duty wheels for easy movement and repositioning, with locking mechanisms for stability
• Minimum cutting burr: ≤5μm, ensuring clean and smooth edges
• Yes, it is a CNC (Computer Numerical Control) machine for automated and accurate cutting
• Laser wavelength: 1064nm, optimized for glass cutting applications
• Pulse frequency range: 1Hz to 1000kHz for versatile cutting performance
• Environmental protection glass laser cutting machine features energy-efficient laser technology to minimize environmental impact

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070S-80TE, and CKD-SP6070D-80E, represents advanced technology designed for precision and efficiency in glass processing. Originating from China and certified by ISO CE, these machines are ideal for a wide range of application occasions and scenarios in industries where high-quality glass cutting is essential. With a minimum order quantity of just one unit and flexible pricing negotiable, CKD offers tailored solutions to meet diverse customer needs.

These all-in-one Glass Cutting and Splitting Machines boast cutting-edge features such as ultra-clear glass single cutting up to 19mm thickness and blue glass double cutting capability up to 19mm. Equipped with an RFC02 Radio Frequency CO2 laser source, available in 150W, 250W, and 350W options, the machine ensures superior beam quality with M² less than 1.2, enhancing precision in cutting colored glass and optical glass materials. The water-cooled laser source combined with a power consumption of less than 8KW and voltage of AC220V makes it both energy-efficient and reliable for continuous industrial use.

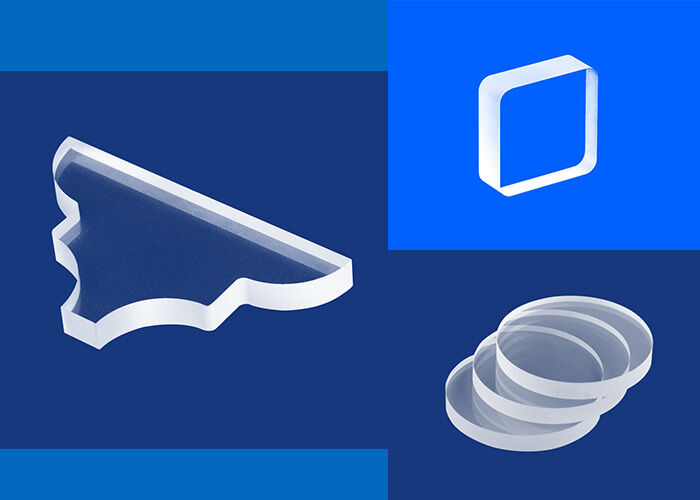

In practical applications, CKD’s colored glass cutting machine is perfect for manufacturers involved in architectural glass production, automotive glass processing, and decorative glass fabrication. Its ability to handle irregular glass cutting with ease allows design studios and custom glass workshops to create intricate shapes and bespoke patterns flawlessly. The optical glass Laser Cutting Machine variant serves industries requiring ultra-precise cutting, such as electronics, optics, and scientific instruments, where clarity and edge quality are critical.

The versatility of the CKD Laser Glass Cutting Machine extends to scenarios like producing tempered glass panels, smart glass components, and specialty glass products used in lighting and display technologies. Its wooden vacuum packaging ensures safe transportation, with delivery times ranging from 25 to 45 days and a supply ability of 60 sets per month to accommodate high-demand production schedules. Payment terms including L/C and T/T provide flexibility for international buyers.

Overall, CKD’s laser glass cutting solutions excel in environments demanding high accuracy, minimal thermal impact, and the capacity to cut a variety of glass types and thicknesses. Whether for large-scale industrial manufacturing or specialized small-batch production, these machines offer unmatched performance in colored glass cutting, optical glass laser cutting, and irregular glass cutting applications.

Introduction to the company:

Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.

The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.

Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is securely packed using high-quality, durable materials to ensure maximum protection during transit. Each machine is carefully wrapped in anti-static foam and bubble wrap to prevent any damage from shocks or vibrations. The equipment is then placed inside a sturdy wooden crate that is reinforced with metal straps for added stability. The crate is clearly labeled with handling instructions, including "Fragile," "Handle with Care," and orientation arrows to ensure proper positioning.

Shipping:

We offer worldwide shipping for the Laser Glass Cutting Machine through reliable freight carriers. Depending on the destination, the machine can be shipped via air freight or sea freight, with options for door-to-door delivery or pick-up from the port. All shipments are accompanied by detailed documentation, including a packing list, commercial invoice, and certificate of origin. We ensure timely dispatch and provide tracking information so customers can monitor their order throughout the shipping process.
