High Stability Laser Glass Cutting Machine Designed to Maintain Cutting Accuracy During Extended Operation Periods To Accuracy±0.01mm

Product Description:

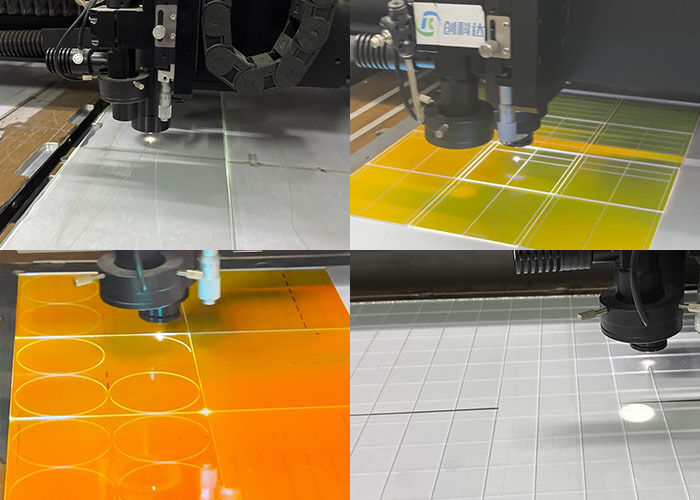

This device is a high-efficiency laser glass cutting system that utilizes high-energy lasers for precision cutting of glass. It is specifically designed for shape processing and incorporates CO₂ laser–assisted splitting technology to achieve both cutting and separating of glass materials. Our laser glass cutting equipment is ideal for processing a wide range of brittle glass types. Thanks to the non-contact nature of the laser beam, mechanical stress is effectively eliminated. The system supports irregular high-speed cutting with exceptional accuracy of ±0.01 mm and edge chipping as low as ≤5 μm. Offering key advantages such as high precision, minimal damage, and high-throughput production, this technology has become a critical process in industries including optics, electronics, and healthcare.

Features:

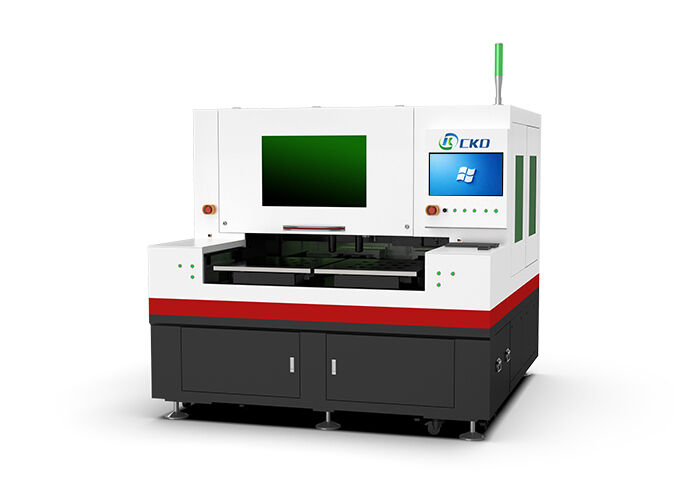

• Product Name: Laser Glass Cutting Machine
• Model: Glass Cutting And Splitting Machine (All-in-One)
• Laser Source Wavelength: 10.6µm
• Impulse Frequency: 1-100kHz
• Cutting Width Range: 0.03-25mm
• Customizable Options Available:
  • Table Size
  • Laser Power (up to 500W)
  • Special Cutting Heads (for curved or micro-level cutting)
• Ideal for Irregular Glass Cutting
• Functions as a Stained Glass Cutting Machine
• Compact and Efficient Small Glass Laser Cutting Machine

Technical Parameters:

Applications:

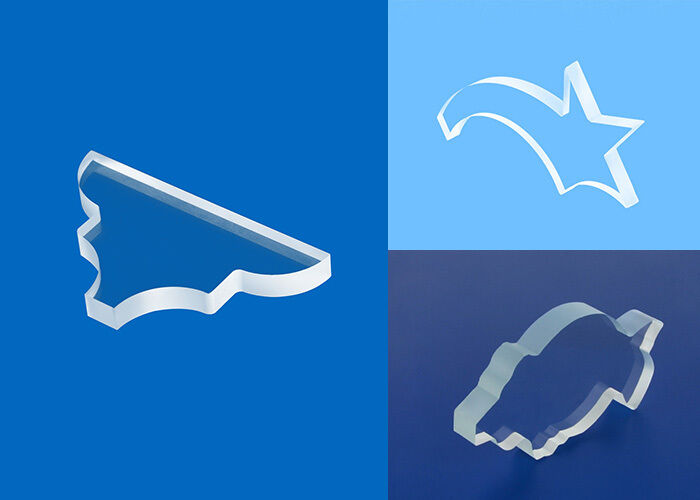

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
