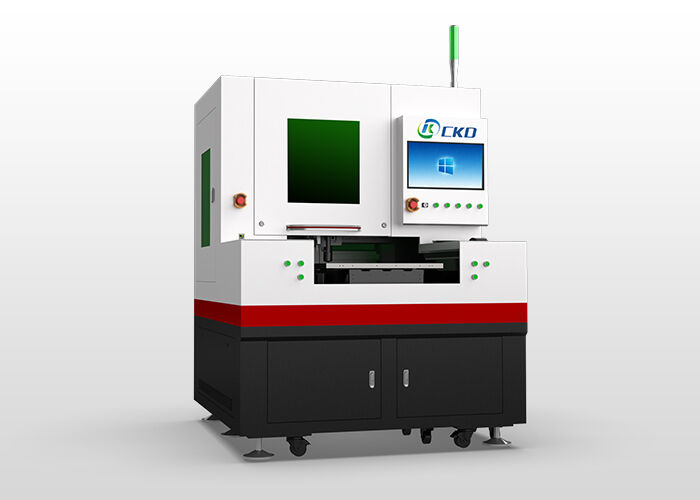

Laser Glass Cutting Machine Designed with Energy Components Reducing Operational Costs in Glass Processing Facilities

Product Description:

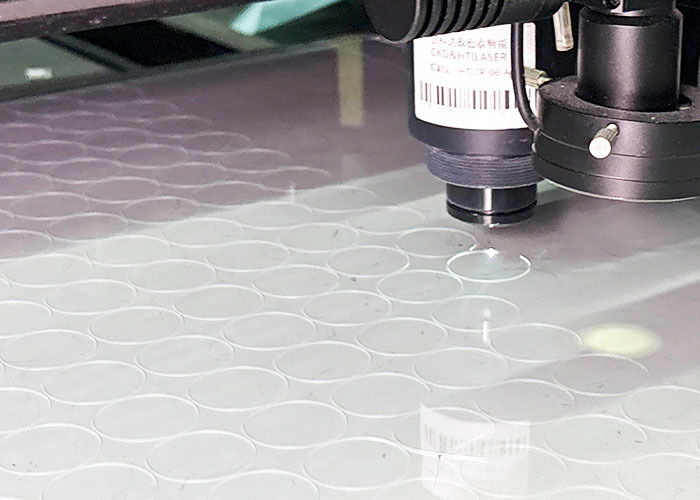

This device is a high-efficiency cutting system that utilizes high-energy lasers to process glass. It is specifically designed for shape cutting and employs CO₂ laser-assisted separation technology to achieve both cutting and splitting of glass. Engineered for brittle materials such as high borosilicate glass, the non-contact laser beam eliminates mechanical stress and preserves film integrity. The system supports high-speed cutting of complex, irregular shapes, delivering exceptional precision with an accuracy of ±0.01 mm and edge chipping as low as ≤5 μm. Renowned for its high precision, minimal damage, and superior efficiency, this laser cutter is widely adopted in advanced manufacturing sectors including optics, electronics, and healthcare.

Features:

• Product Name: Laser Glass Cutting Machine
• Cutting Area Options: 400mm x 500mm, 600mm x 700mm, 600mm x 900mm
• Maintenance Requirements:
  • Recommend optical alignment every 200 hours
  • Coolant replacement every 1000 hours
  • Regular remote diagnostics and software updates available
• Laser Source Cooling Method: Water Cooling
• Overall Cooling System: Water Cooling
• Customizable Options:
  • Table size customization available
  • Laser power adjustable up to 500W
  • Special cutting heads for curved or micro-level cutting
• Ideal for optical glass laser cutting machine applications
• Suitable as a small glass laser cutting machine for precise tasks
• Capable of irregular glass cutting for complex shapes

Technical Parameters:

Applications:

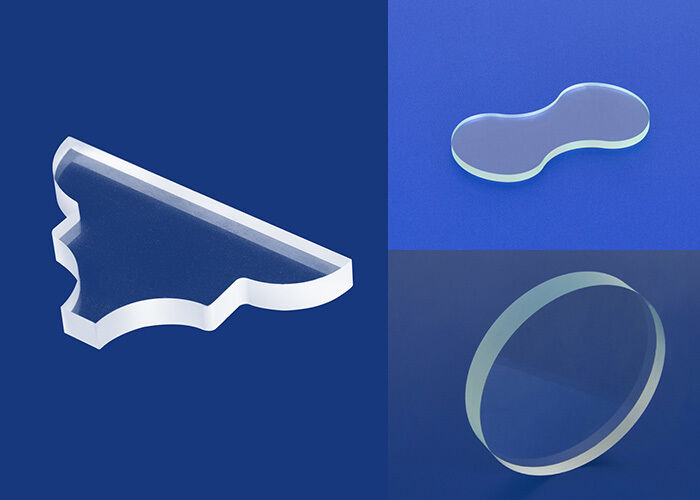

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
