Energy Saving Laser Glass Cutting Machine Designed to Minimize Power Consumption Without Compromising Performance To Accuracy±0.01mm

Product Description:

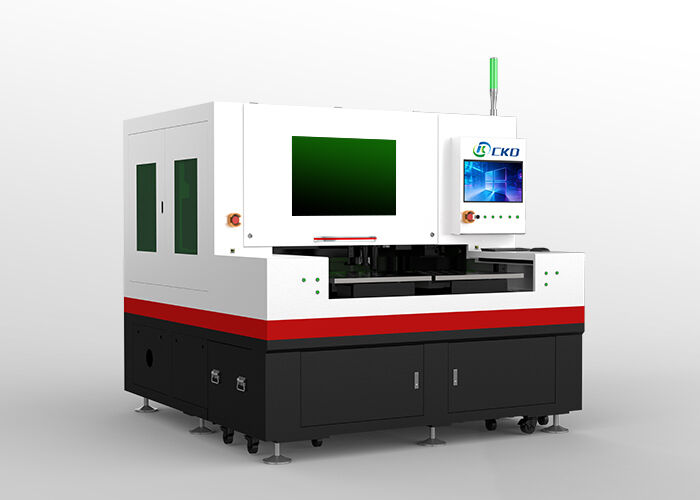

The High Precision Laser Cutting Machine is an advanced and versatile solution designed specifically for cutting glass with exceptional accuracy and efficiency. This machine is equipped with a state-of-the-art XY Linear Motor combined with a Grating Ruler drive system, ensuring precise and smooth movements during the cutting process. This high-precision drive mechanism allows the machine to achieve unparalleled cutting accuracy, making it ideal for applications that demand meticulous detail and flawless edges.

One of the standout features of this laser glass cutting machine is its capability to handle various types of glass, including thick glass and stained glass. Whether you are working on intricate stained glass projects or cutting thick glass panels for industrial or architectural purposes, this machine delivers consistent and clean cuts without compromising on quality. Its laser technology ensures minimal thermal impact on the glass, reducing the risk of cracks and defects, which is especially important for delicate stained glass work.

Designed to operate optimally in controlled environments, the machine performs best within a temperature range of 15°C to 30°C, and a relative humidity of 20% to 80%. These environmental conditions make it suitable for use in both cleanrooms and industrial settings, ensuring stable performance and longevity of components. Whether you are running a high-end stained glass studio or a large-scale industrial glass processing facility, this laser cutting machine adapts well to various operational environments.

Noise considerations have also been thoughtfully addressed in this product. The operating noise level is maintained at around 70dB, which is relatively quiet for industrial machinery. Additionally, the built-in silencing system further reduces noise emissions, making the machine suitable for low-noise environments such as design studios or clean manufacturing areas where noise pollution can be a concern. This feature ensures a comfortable working atmosphere for operators and helps maintain compliance with workplace noise regulations.

Control and usability are paramount in modern manufacturing equipment, and this laser cutting machine excels in this domain. It is fully CNC compatible, providing automated and highly accurate control over the cutting process. The control software is designed to be user-friendly and is compatible with popular CAD/CAM programs like AutoCAD, SolidWorks, and CorelDRAW. This broad software compatibility allows seamless integration into existing design workflows, enabling operators to directly import designs and execute precise cutting instructions without the need for extensive programming knowledge.

The intuitive interface of the control software supports a wide range of programming formats, making it accessible to both beginners and experienced technicians. This flexibility reduces training time and increases productivity, allowing businesses to meet tight deadlines and maintain high-quality output. The CNC capability ensures repeatability and consistency, essential for mass production of glass components or intricate stained glass patterns.

In summary, this High Precision Laser Cutting Machine is an exceptional choice for anyone needing a reliable, efficient, and versatile glass cutting solution. Its advanced XY Linear Motor and Grating Ruler drive system provide unmatched accuracy, while the ability to cut thick glass and stained glass expands its application range. The machine’s environmental adaptability, low noise operation, and CNC compatibility combined with user-friendly control software make it a valuable asset for both industrial manufacturers and artistic glass fabricators. Whether you are looking to improve production efficiency or achieve superior cutting quality, this laser glass cutting machine represents a significant advancement in glass processing technology.

Features:

• Product Name: Laser Glass Cutting Machine
• Customizable Options:
  • Table Size
  • Laser Power (up to 500W)
  • Special Cutting Heads (including options for curved or micro-level cutting)
  Designed to meet specific customer needs.
• Splitting Laser Source Pulse Frequency: 1-100kHz
• Chipping: ≤5μm
• Applicable Industries:
  • Glassware Industry: Optical Glass, K9 Glass, Ultra-thin Glass
  • Houseware Industry: High-borosilicate Glass, Quartz Glass, Sanitary Ware Glass
  • Vehicle Industry: Automotive Glass, Car Windshield, etc.
  • New Energy: Photovoltaic Glass
  • Home Appliance: Home Appliance Glass, Panel Lighting Glass
  • Real Estate: Architectural Decoration, Bathroom Glass, etc.
• Compatibility with Automation Systems:
  • Supports integration with major automation systems, including robot interfaces and automatic loading/unloading systems
  • Supports standard industrial communication protocols such as Modbus and OPC
• Suitable for applications as a Polygonal glass cutting machine
• Ideal for use as a Stained glass cutting machine
• Excellent performance for Stained glass cutting machine tasks

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070D-80E, and various others, is a cutting-edge solution designed to meet diverse glass cutting needs with precision and efficiency. Originating from China and certified by ISO and CE standards, these machines are highly reliable and suitable for a wide range of industrial applications. With a positioning accuracy of ±2μm and superior beam quality (M² < 1.2), the CKD laser glass cutters ensure flawless cutting results on various glass types.

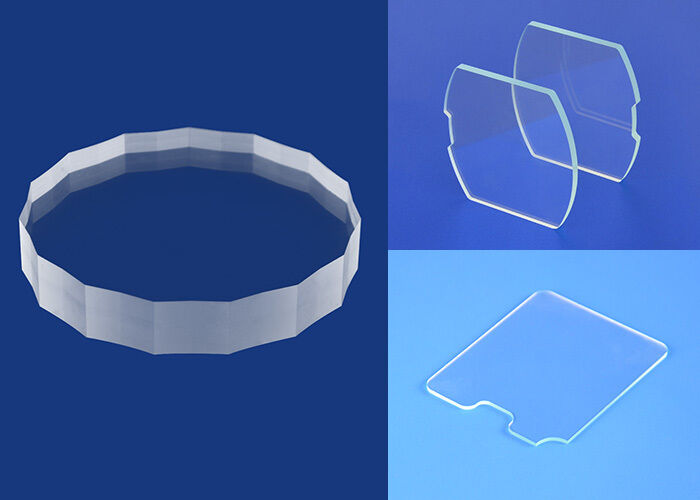

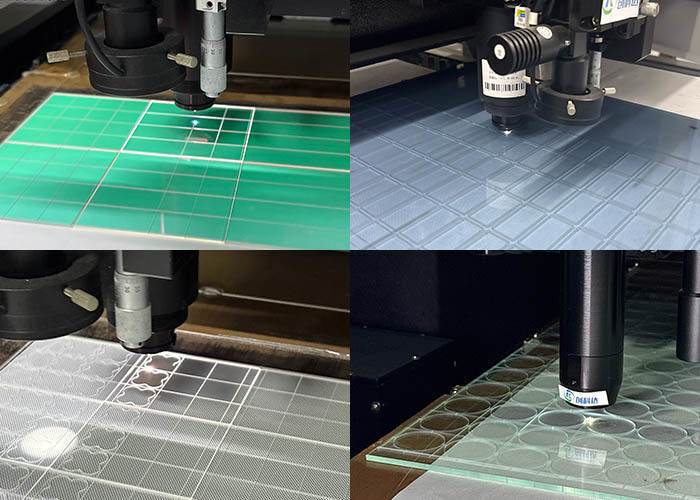

This laser glass cutting machine is particularly ideal for irregular glass cutting, enabling manufacturers to create complex shapes and designs with ease and minimal waste. Its advanced technology supports polygonal glass cutting, making it perfect for producing geometrically precise components used in architectural glass, automotive sectors, and decorative glass applications. The machine’s ability to handle colored glass cutting also opens up opportunities in the production of vibrant, customized glass products for interior design, art installations, and specialty glassware.

In terms of application occasions and scenarios, the CKD laser glass cutting machines are widely used in factories specializing in glass processing, such as those producing tempered glass, laminated glass, and insulating glass units. They are indispensable in industries requiring high-precision cutting for smartphone screens, solar panels, and glass furniture. The machines’ adaptability to work at 50HZ/60HZ frequency and their robust build, with a weight of 3500kg, ensure stable and continuous operation in high-demand manufacturing environments.

Packaging is done via wooden vacuum packaging to ensure safe delivery within 25-45 days, with flexible payment terms including L/C and T/T, catering to international clients. The minimum order quantity is just one unit, making it accessible for both small businesses and large enterprises. With a supply ability of 60 sets per month, CKD can fulfill orders promptly to meet market demands.

Overall, the CKD Laser Glass Cutting Machine series excels in delivering precision and versatility for various glass cutting applications, especially where irregular shapes, polygonal designs, or colored glass materials are involved. Its advanced laser technology and comprehensive model range make it an indispensable tool for modern glass processing industries worldwide.

Customization:

CKD offers customized Laser Glass Cutting Machines designed to meet your specific needs and applications. Our product range includes various models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070D-50E, and CKD-SP6070C-50E among others, all originating from China and certified with ISO and CE standards.

Our Single Table Glass Cutting Machine is equipped with a rack and pinion transmission system and supports laser power options ranging from 30W to 90W. It is capable of cutting a wide variety of materials including ultra-clear glass, plain white glass, high borosilicate glass, quartz glass, optical glass, cover glass, phone glass covers, car glass, camera glass covers, LCD screens, K9 glass, filters, and mirrors.

The High Precision Laser Cutting Machine features adjustable cutting speeds from 0 to 500 mm/s, operates at a voltage of AC220V with power consumption less than 8KW, ensuring efficient and precise cutting performance. Packaging is handled with wooden vacuum packaging to guarantee safe delivery within 25 to 45 days.

We accept a minimum order quantity of 1 unit, with prices negotiated to fit your budget. Payment terms include L/C and T/T methods, and our supply ability is 60 sets per month to meet both small and large scale demands.

Additionally, our Stained Glass Cutting Machine customization options allow you to tailor the equipment to your specific production requirements, ensuring optimal results for intricate and decorative glass cutting projects.

Packing and Shipping:

Our Laser Glass Cutting Machine is carefully packaged to ensure it arrives safely and in perfect working condition. The machine is securely placed in a custom-fitted foam mold inside a sturdy wooden crate to protect against shocks and vibrations during transit. All delicate components are wrapped with anti-static and protective materials to prevent any damage.

For shipping, we use reliable freight services with options for air, sea, or land transport depending on your location and urgency. The wooden crate is clearly labeled with handling instructions and marked as fragile to ensure careful handling. We also provide tracking information and support throughout the shipping process to keep you informed until the machine reaches your facility.
