Laser Glass Cutting Machine designed for easy maintenance and quick setup to minimize downtime in production workflows To Chipping ≤5μm

Product Description:

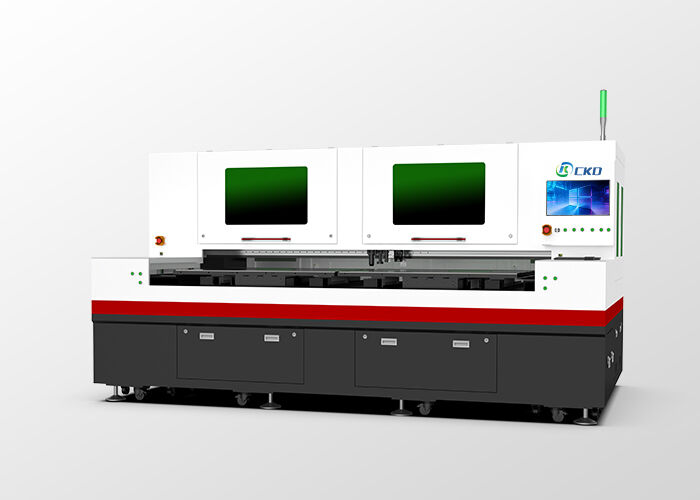

The Laser Glass Cutting Machine is an advanced and versatile solution designed to meet the diverse needs of the glass processing industry. This cutting-edge equipment excels in precision, efficiency, and reliability, making it an ideal choice for various glass cutting applications. Whether you require a polygonal glass cutting machine, a thick glass laser cutting machine, or a small glass laser cutting machine, this product offers exceptional performance tailored to your specific demands.

One of the standout features of this Laser Glass Cutting Machine is its impressive cutting thickness range, capable of cutting glass from as thin as 0.03mm up to 25mm. This wide range allows for handling delicate thin glass sheets as well as robust thick glass panels with equal ease, making it particularly suitable for industries requiring both fine and heavy-duty glass cutting tasks. The machine’s adaptability ensures it can serve multiple markets, including automotive, electronics, architectural glass, and decorative glass manufacturing.

The machine is equipped with a highly precise XY linear motor drive system combined with a grating ruler for positioning accuracy. This sophisticated drive motor setup ensures smooth and rapid movements during the cutting process, resulting in clean, accurate cuts with minimal material waste. The integration of the XY linear motor with the grating ruler technology also enhances the machine’s reliability and reduces maintenance requirements, providing long-term operational stability.

Speed and efficiency are critical in modern manufacturing, and this Laser Glass Cutting Machine delivers with a remarkable linear speed of up to 1000mm/s. This high-speed capability allows for increased throughput, reducing production cycle times and boosting overall productivity. The ability to maintain precision at such high speeds underscores the machine’s advanced engineering and robust construction.

Another significant technical attribute is its pulse frequency range, which spans from 1Hz to an extraordinary 1000kHz. This wide frequency range allows the machine to be fine-tuned for different types of glass and cutting requirements, optimizing the laser's interaction with the material. Whether cutting thin glass with delicate precision or thick glass with powerful laser pulses, the adjustable pulse frequency enhances versatility and cutting quality.

The physical dimensions of the Laser Glass Cutting Machine accommodate various workspace configurations. It is available in two size options: 2150mm × 2080mm × 1960mm and 2550mm × 2080mm × 1960mm. These dimensions ensure the machine can be integrated smoothly into different production environments, from compact workshops requiring a small glass laser cutting machine to larger industrial setups needing a polygonal glass cutting machine capable of handling complex shapes and sizes.

In summary, this Laser Glass Cutting Machine stands out as a highly efficient, precise, and adaptable tool for glass cutting applications. It combines a broad cutting thickness capability, advanced XY linear motor drive with grating ruler precision, high linear speed, and a versatile pulse frequency range to meet the most demanding requirements. Whether you are looking for a polygonal glass cutting machine for intricate designs, a thick glass laser cutting machine for heavy-duty applications, or a small glass laser cutting machine for limited-space environments, this product delivers outstanding performance and reliability. Investing in this Laser Glass Cutting Machine means enhancing your production capabilities with state-of-the-art technology that ensures quality, speed, and versatility in glass cutting operations.

Features:

• Product Name: Laser Glass Cutting Machine
• Brand: CKD
• High Precision Laser Cutting Machine with Beam Quality M² < 1.2
• Splitting Laser Source Power: 150W (optional 250W/350W available)
• Minimum Cutting Burr: ≤5um for ultra-smooth edges
• Optimal Environmental Conditions: Operates best between 15°C and 30°C with 20%-80% relative humidity
• Suitable for use in cleanrooms or industrial environments
• Specially designed as an optical glass Laser Cutting Machine for precision and efficiency
• Advanced optical glass Laser Cutting Machine technology ensures high accuracy and quality

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070S-80TE, and CKD-SP6070D-60E, represents the pinnacle of precision and efficiency in glass cutting technology. Manufactured in China and certified by ISO and CE, this fiber laser cutting machine is designed to meet the demanding needs of industries requiring ultra-fast, high-precision cutting. With cutting areas ranging from 400mm*500mm to 600mm*900mm and repeatability as fine as ±1.5μm, it is an ideal solution for applications where accuracy is paramount.

This small glass laser cutting machine is perfectly suited for environments with controlled temperature and humidity, working best between 15°C and 30°C with 20%-80% relative humidity. It thrives in both cleanroom settings and industrial environments, making it versatile for a range of production demands. Industries such as electronics, automotive glass manufacturing, architectural glass processing, and decorative glass production benefit greatly from the advanced picosecond impulse frequency (1-100kHz) technology embedded in these machines.

The single table glass cutting machine design of the CKD series allows for streamlined operations without compromising on speed or quality. Its ultra-fast picosecond laser pulses enable smooth, burr-free cuts suitable for delicate and complex glass components. This capability is essential in precision industries like smartphone screen manufacturing, optical lenses fabrication, and specialized glassware production. Moreover, the fiber laser technology ensures long-term stability, low maintenance, and energy efficiency.

With a supply ability of 60 sets per month and flexible payment terms (L/C, T/T), CKD caters to both small-scale and large-scale manufacturers. Each unit is carefully packed using wooden vacuum packaging to ensure safe delivery within 25-45 days after order confirmation. The negotiable pricing further allows businesses to acquire cutting-edge glass processing equipment tailored to their budget and production requirements.

In summary, the CKD Laser Glass Cutting Machine series is an indispensable tool for businesses seeking high-precision, reliable, and efficient glass cutting solutions. Whether you require a small glass laser cutting machine for prototype development or a robust fiber laser cutting machine for mass production, CKD’s diverse model range and superior technology make it a top choice in the market today.

Customization:

CKD offers customized Laser Glass Cutting Machines tailored to your specific needs. Our product range includes various models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, and CKD-SP6070C-50E, among others. All machines are manufactured in China and certified with ISO and CE standards, ensuring high quality and reliability.

Our Single Table Glass Cutting Machines are designed to provide exceptional cutting precision with ±0.01mm accuracy and positioning accuracy of ±2μm. Equipped with RFC02 Radio Frequency CO2 laser sources (150W standard, optional 250W/350W), these machines deliver superior beam quality with M² < 1.2 and operate at a wavelength of 1064nm. The water-cooling system ensures stable performance during extended operation.

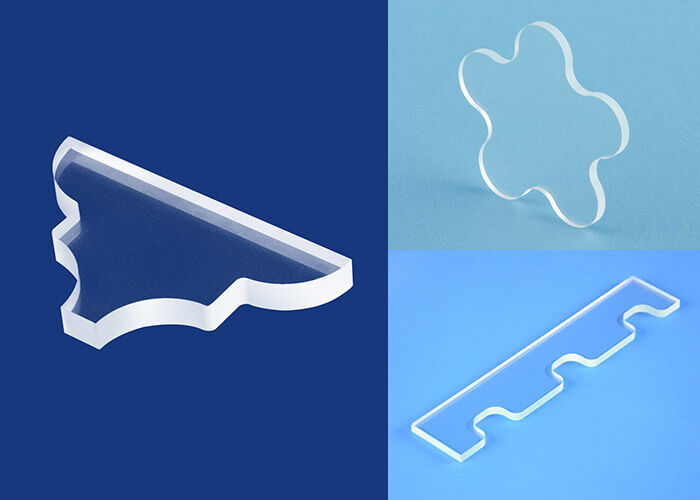

We specialize in offering solutions for irregular glass cutting and polygonal glass cutting machine applications, enabling efficient processing of complex shapes and customized glass designs. Whether you need to cut polygonal shapes or handle irregular glass pieces, our machines provide the flexibility and precision required.

Packaging is done via sturdy wooden vacuum packaging to protect the equipment during shipment. The minimum order quantity is 1 unit, with pricing negotiable to suit your budget and requirements. Delivery time ranges from 25 to 45 days, supported by flexible payment terms including L/C and T/T.

With a supply capacity of 60 sets per month, CKD is well-equipped to meet your demand for high-quality laser glass cutting machines customized to your specifications. Contact us today to discuss your customization needs and receive a tailored solution for your glass cutting projects.

Support and Services:

Our Laser Glass Cutting Machine is designed to deliver precision and efficiency for all your glass processing needs. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services tailored to your requirements.

Technical Support:

Our dedicated technical support team is available to assist you with installation guidance, operational training, troubleshooting, and maintenance advice. We provide detailed user manuals and online resources to help you maximize the capabilities of your laser glass cutting machine.

Maintenance Services:

Regular maintenance is crucial for maintaining cutting accuracy and machine durability. We offer scheduled maintenance services including calibration, cleaning, and parts replacement to keep your machine running smoothly.

Repair Services:

In the event of any technical issues or malfunctions, our skilled technicians are ready to diagnose and repair your laser glass cutting machine promptly to minimize downtime.

Spare Parts Availability:

We maintain an inventory of genuine spare parts to ensure quick replacement and support. Using authentic parts helps maintain the quality and safety standards of your machine.

Software Updates:

We provide periodic software updates to enhance machine functionality and incorporate new features, ensuring your equipment stays up-to-date with the latest technology advancements.

Customized Solutions:

Understanding that different applications may require specific configurations, we offer customized solutions and upgrades to tailor the laser glass cutting machine to your unique production needs.

Our commitment is to provide reliable and responsive support, helping you achieve the best results with your laser glass cutting machine.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packaged to ensure safe delivery and optimal protection during transit. It is securely wrapped with anti-static foam and bubble wrap, then placed inside a sturdy wooden crate. The crate is reinforced with metal brackets and fitted with cushioning materials to prevent any movement or damage. All fragile components are labeled clearly, and the packaging is designed to withstand rough handling and various weather conditions.

Shipping:

We offer worldwide shipping for the Laser Glass Cutting Machine through reliable freight carriers. The product can be shipped via air, sea, or land transportation depending on the destination and customer preference. Shipping costs and delivery times vary based on location and shipping method selected. We provide tracking information once the order has been dispatched, and our logistics team ensures timely and safe delivery to your specified address.
