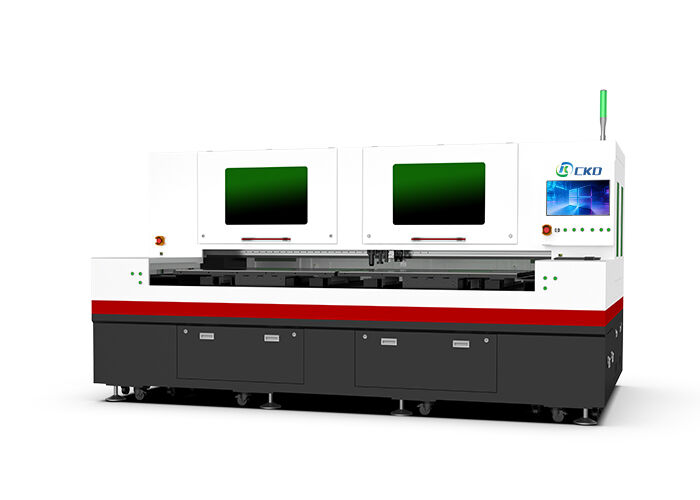

Laser Glass Cutting Machine supporting various glass sizes and thicknesses adapting to diverse industrial requirements To Accuracy±0.01mm

Product Description:

The Laser Glass Cutting Machine is an advanced and highly efficient solution designed to meet the diverse needs of various industries requiring precise and safe glass cutting. This state-of-the-art equipment is engineered with cutting-edge fiber laser technology, making it an ideal choice for applications ranging from optical glass to automotive and home appliance glass. Known for its precision, reliability, and safety, the fiber laser cutting machine offers unparalleled performance in cutting optical glass, colored glass, and ultra-thin glass with exceptional accuracy and minimal material wastage.

One of the standout features of this optical glass laser cutting machine is its comprehensive safety system. Safety is paramount in operations involving high-powered lasers, and this machine incorporates multiple safety features to ensure operator protection and safe operation. It is equipped with an Emergency Stop Button that allows immediate shutdown in case of any unforeseen event. Additionally, the machine comes with a robust Protective Cover and Laser Safety Windows, which effectively shield operators from laser exposure while maintaining visibility of the cutting process. To further enhance safety, the machine is designed to automatically power off when the cover is opened, preventing any accidental exposure to the laser beam.

The laser glass cutting machine is optimized to operate in a controlled working environment, ideally maintained at a temperature of 26℃ to ensure maximum performance and longevity. Weighing 3500kg, it is a robust and stable piece of equipment capable of handling heavy-duty cutting tasks with ease. Its solid build and high-quality components contribute to its durability and consistent output, making it a reliable investment for businesses aiming to improve their glass cutting processes.

This versatile cutting machine finds extensive application across a wide range of industries. In the glassware industry, it is perfect for cutting optical glass, K9 glass, and ultra-thin glass, enabling manufacturers to produce high-precision components used in lenses, instruments, and other optical devices. The houseware industry benefits from its ability to cut high-borosilicate glass, quartz glass, and sanitary ware glass, essential for producing durable and aesthetically pleasing kitchenware and bathroom accessories. In the vehicle industry, it is used for automotive glass and car windshields, ensuring safety and clarity through precision cutting. The new energy sector leverages this laser cutting technology for photovoltaic glass production, contributing to the advancement of solar energy solutions. Additionally, the machine is suited for home appliance manufacturing, handling home appliance glass and panel lighting glass, as well as real estate applications such as architectural decoration and bathroom glass installations.

Compatibility with automation systems is another key advantage of this laser glass cutting machine. It supports seamless integration with major automation platforms, including robot interfaces and automatic loading/unloading systems. This compatibility facilitates streamlined production workflows and enhances productivity by reducing manual intervention. Furthermore, the machine communicates using standard industrial communication protocols such as Modbus and OPC, ensuring smooth interoperability with existing factory control systems. This makes it an excellent choice for companies looking to modernize their production lines and adopt Industry 4.0 practices.

In summary, the Laser Glass Cutting Machine is an indispensable tool for any enterprise involved in precision glass cutting. Its sophisticated fiber laser technology, combined with comprehensive safety features, robust construction, and broad industry applicability, positions it as a leader in the market. Whether cutting optical glass or colored glass, this machine delivers consistent, high-quality results while prioritizing operator safety and production efficiency. Its compatibility with automation systems further enhances its value, making it a future-proof investment for businesses aiming to stay ahead in the competitive glass manufacturing landscape.

Features:

• Product Name: Laser Glass Cutting Machine
• Drive Motor: XY Linear Motor with Grating Ruler for precise positioning
• Cooling System: Efficient Water Cooling to maintain optimal operating temperature
• Impulse Frequency: Adjustable from 1 to 100 kHz for versatile cutting applications
• Laser Type: Advanced Infrared Picosecond Laser ensuring high accuracy and minimal thermal impact
• Dimensions: Available in two sizes - 2150mm × 2080mm × 1960mm and 2550mm × 2080mm × 1960mm
• Specialized for optical glass Laser Cutting Machine applications, delivering exceptional cutting quality

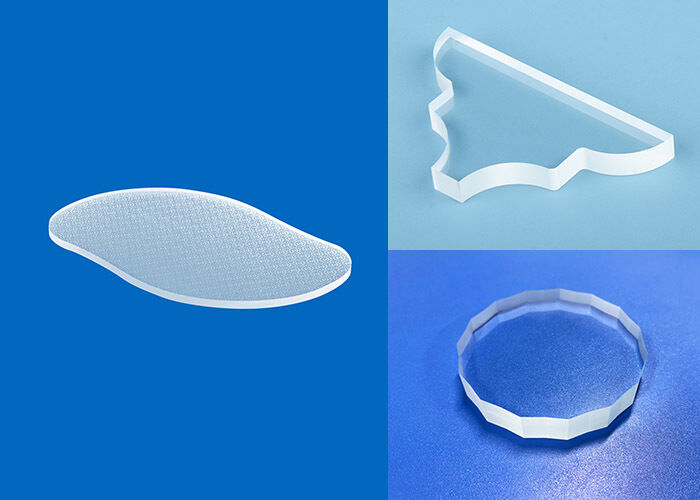

• Also known as a Polygonal glass cutting machine, suitable for complex and precise glass shapes

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, and many others, is a state-of-the-art solution designed for precision and efficiency in glass processing. Originating from China and certified with ISO and CE standards, these machines are ideal for a wide range of industrial applications where high precision and quality are paramount.

These optical glass Laser Cutting Machines are perfectly suited for manufacturing environments that require cutting of various glass types, including optical and colored glass. Thanks to their RFC02 (Radio Frequency CO2) laser source, these machines provide high-speed cutting with linear speeds of up to 1000mm/s and pulse frequencies ranging from 1Hz to 1000kHz. This makes them highly effective for industries like electronics, automotive, architecture, and decorative glass manufacturing where precise and intricate cutting is essential.

In industrial settings, the CKD High Precision Laser Cutting Machine excels in producing irregular-shaped cuts with no taper, burr, or chipping, ensuring a high yield rate. The low consumption of energy and materials, combined with an eco-friendly operation that produces no pollution, powder, or wastewater, makes these machines highly sustainable. They work best in controlled environmental conditions ranging from 15°C to 30°C with 20%-80% relative humidity, making them suitable for cleanrooms or standard industrial workshops.

The colored glass cutting machine variants within the CKD lineup are particularly valuable for applications requiring vivid and intricate designs, such as stained glass art, decorative panels, and specialty glass products. Their high cutting quality and speed allow manufacturers to meet demanding production schedules without compromising quality.

With a supply capacity of 60 sets per month and delivery times between 25 to 45 days, CKD ensures prompt fulfillment of orders with flexible payment terms including L/C and T/T. Each machine is carefully packaged using wooden vacuum packaging to guarantee safe shipment. The minimum order quantity is just one unit, making it accessible for businesses of all scales.

Overall, the CKD Laser Glass Cutting Machine range is tailored for diverse cutting scenarios in industries that demand high precision, speed, and environmentally friendly operation. Whether cutting complex shapes in optical glass or processing colored glass for decorative purposes, these machines deliver exceptional performance and reliability.

Customization:

CKD offers customized Laser Glass Cutting Machines tailored to meet diverse industry needs. Our product range includes models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. All machines are proudly made in China and certified with ISO and CE standards, ensuring high quality and reliability.

Our Laser Glass Cutting Machines are ideal for a variety of applications including colored glass cutting machines, stained glass cutting machines, and optical glass laser cutting machines. Equipped with the advanced RFC02 (Radio Frequency CO2) laser source and driven by XY linear motors combined with optical grating scales, these machines deliver exceptional cutting accuracy of ±0.01mm.

Each unit weighs approximately 3500kg and is designed to operate optimally in environmental conditions ranging between 15°C and 30°C with 20%-80% relative humidity, making them suitable for cleanrooms or industrial environments. We package our products using wooden vacuum packaging to ensure safe delivery.

Our minimum order quantity is 1 set, with a supply capacity of 60 sets per month. Delivery time ranges from 25 to 45 days, and pricing is negotiable to meet customer requirements. Payment terms accepted include L/C and T/T, providing flexibility for international clients.

Choose CKD's Laser Glass Cutting Machines for precision, durability, and customization tailored to your specific glass cutting needs.

Support and Services:

Our Laser Glass Cutting Machine is designed to deliver precision and efficiency for all your glass cutting needs. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Technical Support:

Our experienced support team is available to assist you with installation, setup, and troubleshooting. We provide detailed user manuals and online resources to help you understand the machine’s features and maintenance requirements.

Maintenance Services:

Regular maintenance is crucial for maintaining cutting accuracy and machine durability. We offer scheduled maintenance services including cleaning, calibration, and parts inspection to keep your machine running smoothly.

Training and Consultation:

We provide training sessions for operators to maximize the efficiency and safety of the Laser Glass Cutting Machine. Our experts are also available for consultation to help you integrate the machine into your production line effectively.

Spare Parts and Upgrades:

We supply genuine spare parts and offer upgrade options to enhance the capabilities of your machine as new technologies become available.

Warranty and Repairs:

Our Laser Glass Cutting Machine comes with a warranty that covers manufacturing defects. In the event of a malfunction, our repair services ensure your machine is restored to optimal condition promptly.

For detailed support, please refer to the user manual included with your machine or visit our official support website.

Packing and Shipping:

Our Laser Glass Cutting Machine is carefully packaged to ensure it arrives in perfect condition. The machine is securely placed in a sturdy wooden crate with foam padding to protect against shocks and vibrations during transit. All fragile components are individually wrapped and cushioned.

For shipping, we offer multiple options including air freight, sea freight, and express courier services to meet your delivery timeline and budget. The package is clearly labeled with handling instructions and includes all necessary documentation such as the user manual, warranty card, and certification papers.

We also provide optional installation and training services upon delivery to help you get started quickly and efficiently. Rest assured, your Laser Glass Cutting Machine will be delivered safely and ready for immediate use.
