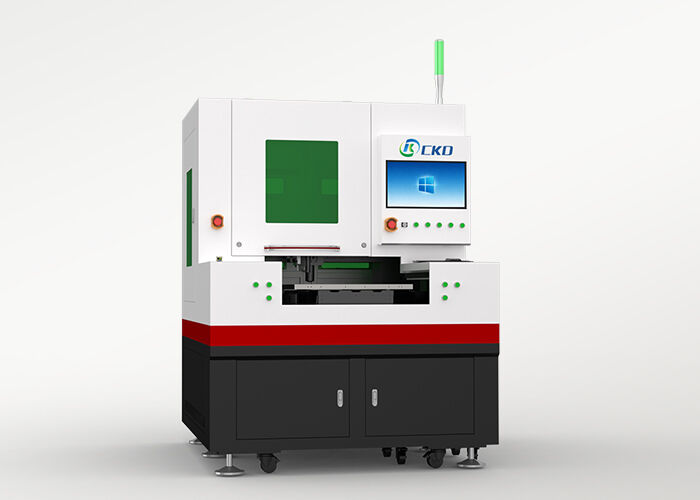

Laser Glass Cutting Machine integrating safety features and automated calibration for consistent glass cutting performance

Product Description:

The Laser Glass Cutting Machine is an advanced small glass laser cutting machine designed to offer precision, efficiency, and versatility for various glass cutting applications. This state-of-the-art equipment is ideal for industries requiring meticulous glass shaping, such as stained glass cutting, polygonal glass cutting, and other specialized glass fabrication processes. Its innovative design and cutting-edge technology make it a reliable and indispensable tool for professionals seeking high-quality results.

One of the standout features of this laser glass cutting machine is its impressive mobility. Equipped with heavy-duty wheels, it allows for easy movement and repositioning within a workspace. Whether you need to relocate the machine for different tasks or optimize your production layout, the mobility feature ensures seamless transitions without compromising stability. For added safety and precision during operation, the machine includes locking mechanisms that securely anchor it in place, preventing any unwanted movement while cutting.

The work size of this machine is another significant attribute that enhances its usability. Offering a customizable work size of 610*700mm X 2, it provides ample space to handle various glass sheet dimensions. This flexibility accommodates diverse project requirements, whether working on smaller stained glass pieces or larger polygonal glass shapes. The dual-section work area allows simultaneous processing or the handling of multiple glass sheets, increasing productivity and reducing downtime.

When it comes to cutting capabilities, the laser glass cutting machine excels with a cutting width range of 0.03-25mm. This extensive range enables it to perform ultra-fine cuts for intricate designs as well as broader cuts for thicker glass materials. The precision cutting width ensures minimal material wastage and clean edges, which are crucial for high-quality glass products. The machine’s cutting accuracy supports complex and detailed glass designs, making it particularly suitable for stained glass cutting where precision is paramount.

The laser type utilized in this machine is an infrared picosecond laser, known for its superior performance in glass cutting applications. This laser technology emits ultra-short pulses, allowing for non-thermal cutting that minimizes heat-affected zones. As a result, the glass experiences less stress and cracking, preserving its structural integrity and aesthetic appeal. The infrared picosecond laser is especially effective for cutting delicate and thin glass sheets, providing clean and smooth edges that meet professional standards.

Chipping is a common concern in glass cutting, as it can compromise the quality and safety of the final product. The Laser Glass Cutting Machine addresses this issue with an impressively low chipping rate of ≤5μm. This minimal chipping ensures that the edges of the glass remain intact and smooth, reducing the need for additional finishing processes. Such a low chipping rate is particularly beneficial for applications involving polygonal glass cutting, where sharp and precise edges are essential for fitting glass pieces accurately.

In summary, this Laser Glass Cutting Machine combines mobility, customizable work size, precise cutting width, advanced laser technology, and minimal chipping to deliver outstanding performance. Its suitability for small glass laser cutting machine tasks, polygonal glass cutting machine applications, and stained glass cutting machine projects makes it a versatile and valuable asset for glass artisans and manufacturers. Whether you are crafting intricate stained glass artworks or producing polygonal glass components, this machine offers the precision, efficiency, and reliability you need to elevate your craft and meet demanding production standards.

Features:

• Product Name: Laser Glass Cutting Machine
• Applicable Industries:
  • Glassware Industry: Optical Glass, K9 Glass, and Ultra-thin Glass
  • Houseware Industry: High-borosilicate Glass, Quartz Glass, Sanitary Ware Glass
  • Vehicle Industry: Automotive Glass, Car Windshield, etc.
  • New Energy: Photovoltaic Glass
  • Home Appliance: Home Appliance Glass, Panel Lighting Glass
  • Real Estate: Architectural Decoration, Bathroom Glass, etc.
• Energy Consumption: Standby power is about 500W, and average power consumption during cutting is 2.5kW. Energy-efficient with eco-friendly modes.
• Control System: HTI Control
• Working Environment: Optimal at 26℃
• Maintenance Requirements:
  • Recommend optical alignment every 200 hours
  • Coolant replacement every 1000 hours
  • Regular remote diagnostics and software updates available
• Features:
  • Polygonal glass cutting machine capabilities for precise shapes
  • Small glass laser cutting machine design for space-saving operation
  • Supports irregular glass cutting for complex and custom designs

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, and many others, is designed to meet a wide range of glass processing needs with exceptional precision and versatility. Manufactured in China and certified by ISO and CE, these machines are recognized for their reliability and quality in industrial applications.

One of the primary application occasions for the CKD High Precision Laser Cutting Machine is in the production of colored glass products. The advanced laser system, available in laser powers ranging from 30W to 90W, enables flawless cutting of colored glass sheets without causing damage to the material or compromising color integrity. This makes the CKD machines ideal for use in decorative glass manufacturing, stained glass art, and architectural glass projects where vibrant colors and intricate designs are essential.

Another significant application scenario for the CKD Laser Glass Cutting Machine is in industries requiring irregular glass cutting. The machine's high acceleration of 1G and precise control allow it to cut complex shapes and patterns with smooth edges and consistent quality. This capability is especially valuable in the automotive, electronics, and specialty glass sectors, where custom-shaped glass components are needed for windows, screens, and other specialized applications.

The mobility feature of the CKD series, equipped with heavy-duty wheels and locking mechanisms, ensures that the machines can be easily moved and securely positioned within manufacturing facilities or cleanroom environments. The machines operate best in controlled environmental conditions, specifically temperatures between 15°C and 30°C and relative humidity from 20% to 80%, making them suitable for both industrial and high-standard cleanroom settings.

With a weight of 3500kg and packaged using wooden vacuum packaging to ensure safe delivery, these laser glass cutting machines have a supply ability of 60 sets per month and a delivery time of 25-45 days. The minimum order quantity is just one unit, and pricing is negotiable, making it accessible for small and large enterprises alike. Payment terms include L/C and T/T, providing flexibility to customers.

In summary, the CKD high precision laser cutting machines are perfectly suited for applications requiring exact cuts on colored and irregular glass pieces. Their robust design, advanced laser power options, and user-friendly mobility features make them essential equipment in glass manufacturing, decoration, automotive, electronics, and architectural industries.

Customization:

CKD offers a range of High Precision Laser Cutting Machines designed to meet diverse glass cutting needs. Our Laser Glass Cutting Machine models, including CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E, are all manufactured in China and certified with ISO and CE standards.

Our machines support Irregular glass cutting and are ideal as a Stained glass cutting machine, providing exceptional cutting accuracy of ±0.01mm and superior beam quality with M² less than 1.2. Equipped with a reliable water cooling system, these machines operate optimally in environmental conditions between 15°C and 30°C with 20%-80% relative humidity, suitable for both cleanrooms and industrial environments.

The product dimensions vary between 2150mm × 2080mm × 1960mm and 2550mm × 2080mm × 1960mm, with a supply ability of 60 sets per month. We offer a minimum order quantity of 1 set, with pricing negotiated to meet your specific needs. Each unit is carefully packaged in wooden vacuum packaging to ensure safe delivery within 25-45 days.

Payment terms include L/C and T/T options, providing flexibility for our customers. Trust CKD's Laser Glass Cutting Machines for precision, reliability, and customization to enhance your glass cutting projects.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packaged using high-quality, durable materials to ensure safe transportation. Each unit is wrapped in protective foam and secured within a custom-fitted wooden crate to prevent any damage during shipping. The packaging is designed to withstand handling and environmental factors, providing maximum protection for the precision equipment inside.

Shipping:

We offer reliable shipping options worldwide with tracking available for all orders. The Laser Glass Cutting Machine is shipped via trusted carriers, ensuring timely and secure delivery. Prior to shipping, each machine undergoes thorough inspection and testing to guarantee it meets quality standards. Customers will receive detailed shipping information including estimated delivery times and handling instructions to facilitate smooth receipt of their product.
