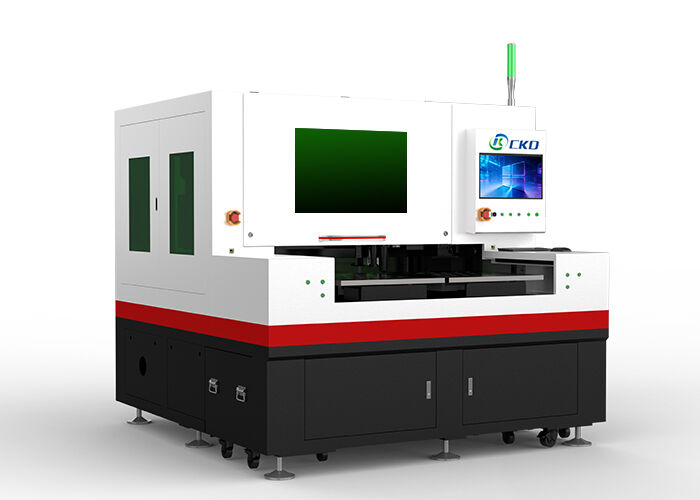

Compact footprint Laser Glass Cutting Machine ideal for integration into existing glass processing lines with limited space

Product Description:

The High Precision Laser Cutting Machine is an advanced Single Table Glass Cutting Machine designed to meet the demanding requirements of modern glass processing industries. Engineered with cutting-edge technology, this machine ensures exceptional performance and reliability, making it an ideal choice for businesses seeking precision and efficiency in glass cutting operations.

One of the standout features of this Single Table Glass Cutting Machine is its remarkable cutting accuracy of ±0.01mm. This high level of precision guarantees clean, smooth cuts with minimal material wastage, enabling manufacturers to produce glass components that meet exact specifications consistently. Whether you are working on delicate glass panels or intricate designs, this machine delivers flawless results every time.

The machine offers versatile cutting area options to accommodate a wide range of project sizes. Users can select from three different cutting area configurations: 400mm*500mm, 600mm*700mm, and 600mm*900mm. This flexibility allows for efficient processing of various glass dimensions, making it suitable for applications in automotive glass, architectural glass, decorative glass, and more. The ample cutting area ensures that large sheets can be handled with ease, improving productivity and reducing the need for multiple setups.

Equipped with the advanced HTI Control System, the High Precision Laser Cutting Machine provides intuitive and user-friendly operation. The HTI Control System enhances the machine’s precision and stability by offering real-time monitoring and adjustment capabilities. Operators benefit from a streamlined interface that simplifies programming and control, reducing the learning curve and increasing operational efficiency. This sophisticated control system also supports CNC functionality, enabling automated and programmable cutting processes for complex and repetitive tasks.

As a CNC-enabled device, this Single Table Glass Cutting Machine integrates seamlessly into automated production lines. CNC technology allows for precise control over cutting paths, speeds, and parameters, ensuring consistent quality and repeatability. This automation reduces manual intervention, minimizes errors, and accelerates production cycles, thereby boosting overall throughput and profitability.

The laser source in this machine features an ultra-short pulse width of less than 10 picoseconds (<10ps). Such an ultra-short pulse duration is critical for achieving high-quality cuts with minimal heat-affected zones, preventing cracks, chips, or thermal deformation in the glass material. The precise energy delivery ensures that the glass is cut cleanly without compromising its structural integrity, which is especially important for high-strength or tempered glass applications.

In summary, the High Precision Laser Cutting Machine is a state-of-the-art Single Table Glass Cutting Machine that combines exceptional cutting accuracy, flexible working areas, advanced HTI Control System, CNC capabilities, and ultra-short pulse laser technology. This combination makes it an indispensable tool for industries requiring precise and efficient glass cutting solutions. Whether you are producing architectural glass panels, automotive components, or decorative glass items, this machine offers unparalleled performance that enhances product quality and operational efficiency.

Investing in this High Precision Laser Cutting Machine ensures that your glass cutting processes stay at the forefront of technology, delivering superior results with every cut. Its robust design, user-friendly control system, and versatile cutting area options make it suitable for a broad spectrum of applications. Experience the benefits of precision, speed, and reliability with this advanced Single Table Glass Cutting Machine, and elevate your glass manufacturing capabilities to new heights.

Features:

• Product Name: Laser Glass Cutting Machine
• Work Size: 610*700mm X 2, customizable to meet your specific needs
• Linear Speed: Up to 1000mm/s for efficient cutting performance
• Cutting Precision: High precision cutting with ±0.01mm accuracy
• Laser Source Wavelength: Splitting laser source with a wavelength of 10.6µm
• Noise Level: Operating noise level is 70dB, featuring a built-in silencing system suitable for low-noise environments
• Ideal for small glass laser cutting machine applications
• Capable of colored glass cutting machine tasks with ease

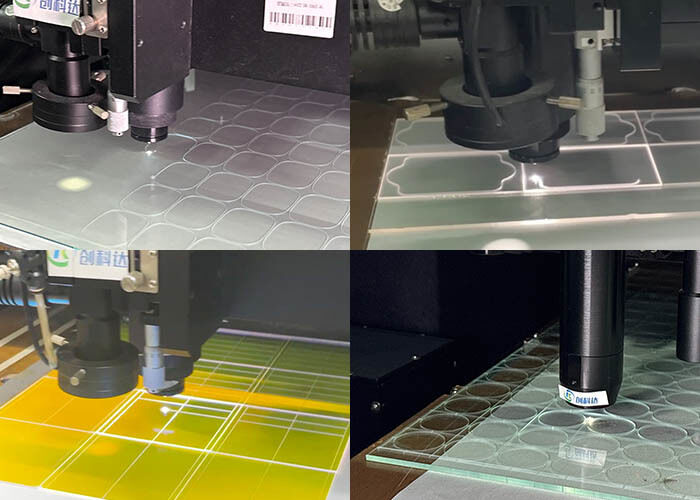

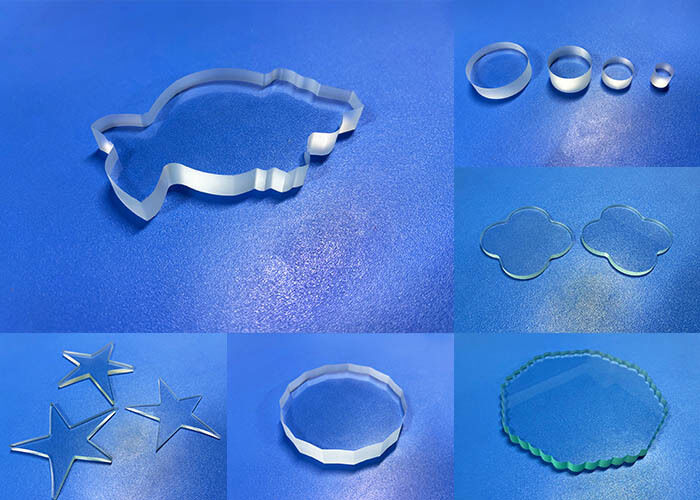

• Supports irregular glass cutting for versatile glass shapes

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, and others, is designed to meet diverse industrial needs in glass processing. Originating from China and certified with ISO CE standards, these machines ensure high-quality performance and reliability. With a supply ability of 60 sets per month and a delivery time of 25-45 days, CKD offers flexible solutions with negotiated pricing and payment terms such as L/C and T/T.

This optical glass Laser Cutting Machine series is ideal for applications requiring precision and speed. The adjustable cutting speed from 0 to 500mm/s and the ultra-fast picosecond impulse frequency ranging from 1-100kHz make it perfect for cutting delicate optical glass materials without causing micro-cracks or thermal damage. The use of RFC02 Radio Frequency CO2 laser sources, available in 150W, 250W, and 350W options with water cooling systems, further enhances cutting accuracy and efficiency.

In thick glass laser cutting scenarios, these machines excel by providing clean, smooth edges on thick glass panels used in architectural, automotive, and industrial applications. The robust laser source and precise control allow for splitting and shaping thick glass with minimal waste, making it a preferred choice for manufacturers working with tough glass materials.

For smaller-scale operations, the small glass laser cutting machine variants within the CKD lineup offer compact and efficient solutions for producing intricate glass parts, such as in electronics, medical devices, and decorative glass products. Their ability to handle small and thin glass pieces with high precision makes them highly versatile in various industrial scenarios.

Packaging with wooden vacuum packaging ensures the machines arrive securely, maintaining the integrity of the equipment during transportation. Whether for large-scale industrial production or specialized small-batch glass cutting, the CKD laser glass cutting machines provide unmatched performance, reliability, and adaptability to different glass cutting occasions and environments.

Customization:

CKD offers a range of Laser Glass Cutting Machines, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. These machines are designed and manufactured in China and hold ISO and CE certifications, ensuring high quality and safety standards.

We provide product customization services to meet your specific needs for irregular glass cutting, small glass laser cutting machines, and stained glass cutting machines. Our customization options include precise chipping control with a tolerance of ≤5μm, impulse frequency adjustable from 1 to 100kHz, and the use of high-quality TPI linear guides to ensure smooth and accurate operations.

Safety is a priority in all our laser glass cutting machines, equipped with features such as an Emergency Stop Button, Protective Covers, Laser Safety Windows, and an Automatic Power-off system that activates when the cover is opened, providing safe operation during use.

The repeatability of our machines is maintained at ±1.5μm, guaranteeing consistent cutting performance for your glass products. Our supply ability is 60 sets per month, with a minimum order quantity of just 1 set, allowing flexible purchasing options.

Packaging is handled with care through wooden vacuum packaging to ensure the product arrives in perfect condition. Delivery time ranges from 25 to 45 days, with payment terms including L/C and T/T. Pricing is negotiable to suit your budget and requirements.

Choose CKD for your laser glass cutting needs and benefit from our expert customization services tailored to irregular glass cutting, small glass laser cutting machines, and stained glass cutting machines.

Support and Services:

Our Laser Glass Cutting Machine is backed by comprehensive technical support and professional services to ensure optimal performance and customer satisfaction. Our team of experienced technicians is available to assist with installation, calibration, and routine maintenance to keep your machine operating at peak efficiency.

We offer detailed user manuals, troubleshooting guides, and software updates to help you maximize the capabilities of your laser glass cutter. In addition, our support services include remote diagnostics and on-site repairs to minimize downtime and maintain productivity.

Training sessions are available to help your staff become proficient in operating the machine safely and effectively. We also provide consultation services to customize the machine settings and cutting parameters according to your specific glass types and project requirements.

Our commitment is to provide timely and effective support throughout the lifecycle of your Laser Glass Cutting Machine, ensuring you achieve precise, high-quality cuts with every use.
