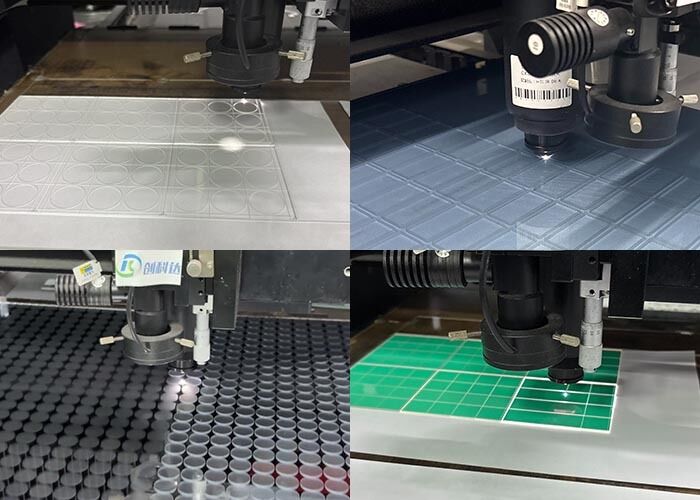

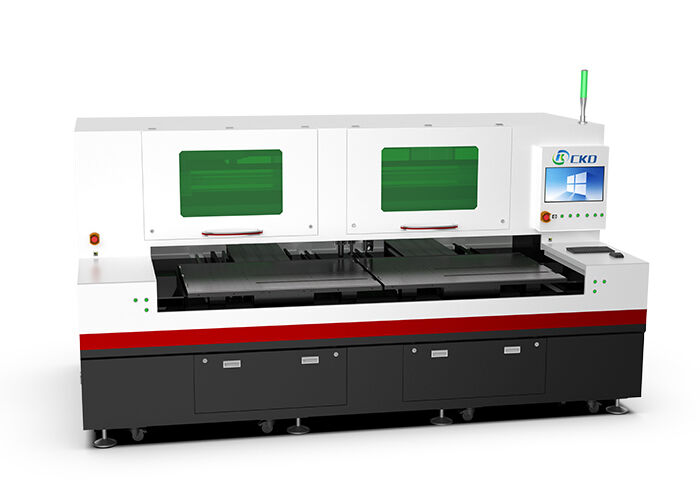

Automated Laser Glass Cutting Machine capable of performing complex cutting patterns and shapes with high repeatability

Product Description:

The Small Glass Laser Cutting Machine is an advanced and efficient solution designed specifically for precision cutting of various types of glass materials. Engineered with cutting-edge technology, this optical glass Laser Cutting Machine offers exceptional accuracy and reliability, making it an ideal choice for industries requiring high-quality glass processing. Whether you are engaged in manufacturing decorative glass, architectural panels, or intricate glass components, this machine ensures superior performance with minimal material wastage.

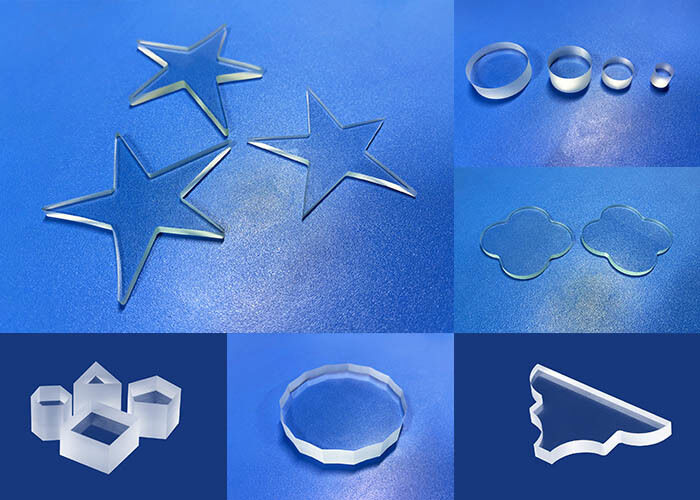

One of the standout features of this Polygonal Glass Cutting Machine is its remarkable chipping control, with chipping size maintained at ≤5μm. This ultra-fine chipping precision guarantees smooth edges and reduces the need for additional finishing processes, thereby saving both time and operational costs. The laser cutting technology integrated within the machine allows for clean, precise cuts on complex shapes and polygonal designs, enhancing the versatility and functionality of the equipment.

Operating at a working frequency of 50Hz or 60Hz, the machine is adaptable to various power supply standards worldwide, ensuring consistent performance regardless of regional electrical specifications. This flexibility makes it suitable for global deployment and seamless integration into existing production lines. Additionally, the machine’s positioning accuracy is maintained at an impressive ±2μm, ensuring that every cut is executed with meticulous precision. This high level of accuracy is critical in applications where dimensional tolerances are tight and quality standards are uncompromising.

The Small Glass Laser Cutting Machine boasts an acceleration capacity of 1G, enabling swift and efficient cutting operations without compromising on precision. This acceleration capability enhances productivity by reducing cycle times while maintaining the integrity of the glass material. The machine’s robust mechanical design combined with advanced laser technology ensures stable performance even during high-speed operations, making it a dependable asset for high-volume glass cutting tasks.

Maintenance and operational efficiency have been carefully considered in the design of this optical glass Laser Cutting Machine. To maintain optimal performance, it is recommended to perform optical alignment every 200 hours of operation. This routine alignment ensures that the laser beam remains precisely focused and accurately directed, preserving cutting quality over extended use. Additionally, coolant replacement is advised every 1000 hours to prevent overheating and extend the lifespan of the machine components. These maintenance protocols are straightforward and designed to minimize downtime.

Further enhancing the user experience, the machine supports regular remote diagnostics and software updates. This feature allows technicians to monitor the machine’s condition in real-time, quickly identify potential issues, and implement software enhancements without the need for on-site visits. Remote diagnostics improve overall machine uptime and ensure that the equipment operates at peak performance, adapting to evolving production requirements and technological advancements.

In summary, the Small Glass Laser Cutting Machine, also known as the Polygonal Glass Cutting Machine, represents a significant advancement in glass processing technology. Its precise chipping control, high positioning accuracy, adaptable working frequency, and rapid acceleration make it a powerful tool for producing high-quality glass products. Coupled with its user-friendly maintenance requirements and remote support capabilities, this optical glass Laser Cutting Machine is an indispensable asset for manufacturers seeking to optimize their glass cutting operations with precision and efficiency.

Features:

• Product Name: Laser Glass Cutting Machine
• Type: Polygonal glass cutting machine, colored glass cutting machine, Small glass laser cutting machine
• Safety Features:
  • Emergency Stop Button
  • Protective Cover
  • Laser Safety Windows
  • Automatic Power-off When The Cover Is Open For Safe Operation
• Minimum Cutting Burr: ≤5um
• Operating Noise Level: 70dB with Built-in Silencing System, Suitable For Low-noise Environments
• Dimension Options: 2150mm × 2080mm × 1960mm or 2550mm × 2080mm × 1960mm
• Linear Speed: Up To 1000mm/s

Technical Parameters:

This laser glass cutting machine is an ideal solution for colored glass cutting machine, polygonal glass cutting machine, and thick glass laser cutting machine applications, delivering high precision and ultra-fast cutting performance.

Applications:

The CKD brand presents a comprehensive range of high-performance laser glass cutting machines, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, and others, all originating from China and certified with ISO and CE standards. These models are designed to accommodate diverse application occasions and scenarios, making them ideal choices for industries requiring precise and efficient glass cutting solutions.

One of the most notable application occasions for the CKD high precision laser cutting machine is in architectural and interior design industries, where the demand for accurately cut glass panels, including stained glass and decorative glass elements, is high. The precise linear speed of up to 1000mm/s allows for fast and intricate cutting patterns, making it perfect for creating custom designs for windows, partitions, and facades. Its compatibility with popular CAD/CAM software like AutoCAD, SolidWorks, and CorelDRAW ensures that designers and engineers can easily translate their digital blueprints into flawless glass cuts.

The small glass laser cutting machine models are particularly well-suited for workshops and small-to-medium enterprises focusing on stained glass cutting. These machines handle delicate and complex cuts with ease, offering low operating noise levels of 70dB due to the built-in silencing system, which is ideal for environments where noise reduction is essential. Additionally, the machines’ weight of approximately 3500kg ensures stability during operation, contributing to the high precision output required in artistic and industrial glass cutting.

In manufacturing settings, CKD laser glass cutting machines support seamless integration with automation systems. Their compatibility with robot interfaces and automatic loading/unloading systems, along with support for industrial communication protocols such as Modbus and OPC, makes them valuable assets in automated production lines. This facilitates high-volume production runs while maintaining consistent quality and reducing manual intervention.

Other application scenarios include the automotive and electronics industries, where precision-cut glass components are essential for windshields, display screens, and protective covers. The flexible packaging with wooden vacuum packaging ensures safe delivery within 25-45 days, and the payment terms (L/C, T/T) along with a monthly supply ability of 60 sets make CKD laser glass cutting machines a reliable investment for businesses worldwide.

In summary, whether for high-precision industrial applications, artistic stained glass cutting, or small-scale production, CKD’s laser glass cutting machines offer versatile, efficient, and high-quality solutions. Their advanced control software, robust build, and broad compatibility make them indispensable tools for anyone seeking superior performance in glass cutting technology.

Customization:

CKD offers comprehensive product customization services for our Laser Glass Cutting Machine series, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50E, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80E, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80E, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80E, CKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80E, CKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. Originating from China and certified by ISO CE, our Single Table Glass Cutting Machine is designed to meet diverse customer needs with a minimum order quantity of one unit and pricing available upon negotiation.

Our customization options cover packaging details with secure wooden vacuum packaging, ensuring safe delivery within 25-45 days. Payment terms include L/C and T/T, supported by a supply ability of 60 sets per month. The machine dimensions are customizable between 2150mm × 2080mm × 1960mm and 2550mm × 2080mm × 1960mm, accommodating different workspace requirements.

Equipped with a 1064nm wavelength laser and a rack and pinion transmission system, this Single Table Glass Cutting Machine excels in precision and efficiency. It supports irregular glass cutting, making it ideal for complex and customized glass shapes. Safety is paramount, featuring an emergency stop button, protective cover, laser safety windows, and an automatic power-off function when the cover is open to ensure safe operation at all times.

The machine performs optimally in environmental conditions ranging from 15°C to 30°C with 20%-80% relative humidity, suitable for cleanrooms or industrial environments. Our product customization services enable clients to tailor the Laser Glass Cutting Machine to their specific production needs, enhancing productivity and versatility in glass processing applications.

Support and Services:

Our Laser Glass Cutting Machine is designed to deliver precision and efficiency for all your glass cutting needs. To ensure optimal performance, please follow the recommended guidelines for installation, operation, and maintenance.

Installation: Place the machine on a stable and level surface. Ensure proper ventilation and avoid exposure to direct sunlight or moisture. Connect the power supply as per the specifications mentioned in the user manual.

Operation: Before starting the machine, make sure the glass is clean and free of any debris. Use the control panel to set the desired cutting parameters according to the thickness and type of glass. Always wear appropriate safety gear during operation.

Maintenance: Regularly clean the laser lens and mirrors with suitable cleaning agents to maintain cutting accuracy. Check for any loose components and tighten them as necessary. Schedule periodic servicing by authorized technicians to prolong the machine's lifespan.

Troubleshooting: If you experience issues such as inaccurate cuts or machine errors, refer to the troubleshooting section in the user manual. Common solutions include recalibrating the laser, checking alignment, and ensuring software updates are installed.

For further assistance, please refer to the detailed user manual provided with the machine or visit our support website for FAQs, video tutorials, and software downloads.
