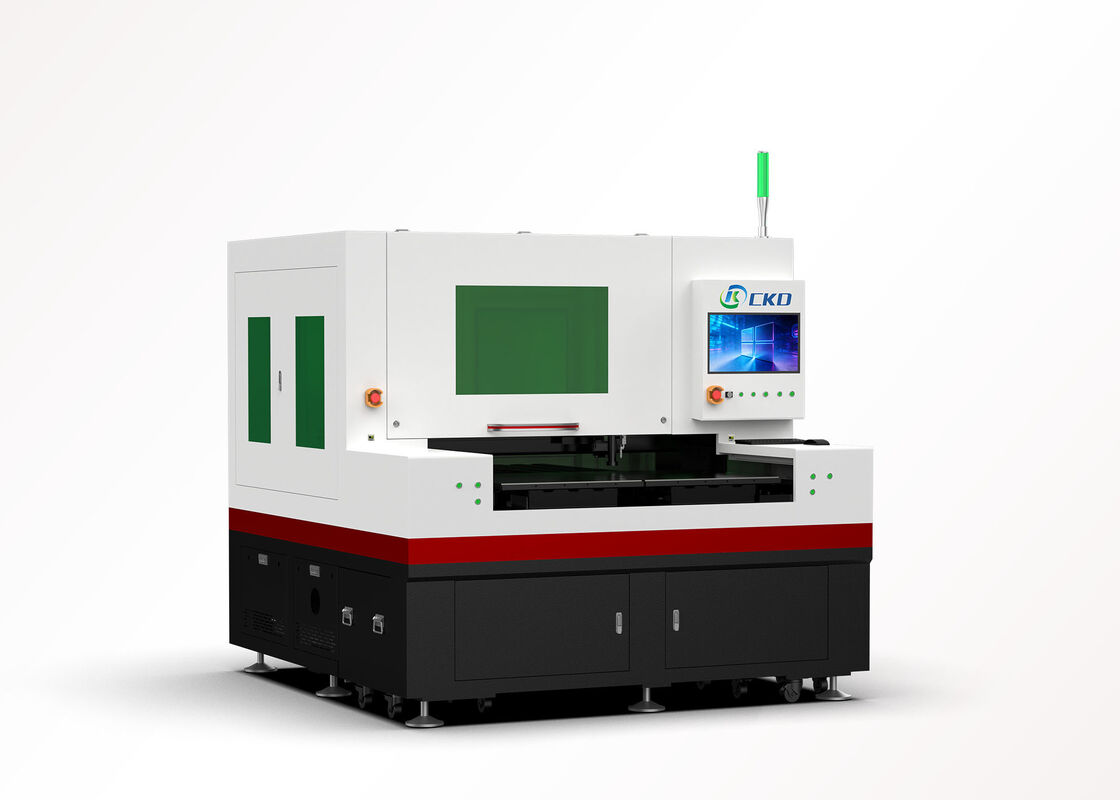

Laser Glass Cutting Machine equipped with safety features ensuring secure operation during continuous glass cutting tasks

Product Description:

The Laser Glass Cutting Machine is a state-of-the-art solution designed to meet the precise and efficient cutting needs of various glass types, including colored glass and stained glass. This advanced equipment is engineered to provide exceptional performance, making it an ideal choice for industries and artisans who require high accuracy and reliability in glass cutting processes. Whether you are working with delicate stained glass pieces or robust colored glass panels, this machine offers the versatility and precision necessary to achieve superior results.

One of the standout features of this laser glass cutting machine is its compact yet robust dimensions, available in two configurations: 2150mm × 2080mm × 1960mm and 2550mm × 2080mm × 1960mm. These dimensions are thoughtfully designed to accommodate various workspace sizes without compromising on functionality. The relatively compact footprint makes it suitable for small to medium-sized workshops, ensuring that users can integrate advanced laser cutting capabilities without requiring extensive space.

The work size capacity of the machine is another key highlight, offering a customizable dual work area of 610mm by 700mm each. This dual-zone setup allows for increased productivity by enabling simultaneous processing of two workpieces or rapid switching between jobs, significantly reducing downtime. The customizable nature of the work size ensures that the machine can be tailored to specific project requirements, making it an excellent choice for both small-scale artisans and larger manufacturing operations.

At the heart of this small glass laser cutting machine lies a splitting laser source that utilizes water cooling technology. This water cooling method ensures optimal thermal management of the laser source, maintaining consistent cutting performance even during prolonged operation. By effectively dissipating heat, the water cooling system enhances the longevity and stability of the laser, thereby reducing maintenance needs and improving overall machine reliability.

The transmission system of the machine employs a rack and pinion mechanism, known for its precision and durability. This system allows for smooth and accurate movement of the cutting head, ensuring that cuts are clean and finely detailed. Such precision is essential when working with stained glass cutting projects, where intricate patterns and delicate designs demand exactness. The rack and pinion transmission contributes to the machine’s ability to deliver high-quality cuts consistently.

Acceleration is a critical factor in laser cutting efficiency and quality, and this machine boasts an impressive acceleration rate of 1G. This high acceleration capability enables rapid positioning of the laser head, reducing cycle times and increasing throughput without sacrificing cutting accuracy. Users benefit from quicker turnaround times on projects, making this laser glass cutting machine a valuable asset for businesses aiming to optimize productivity.

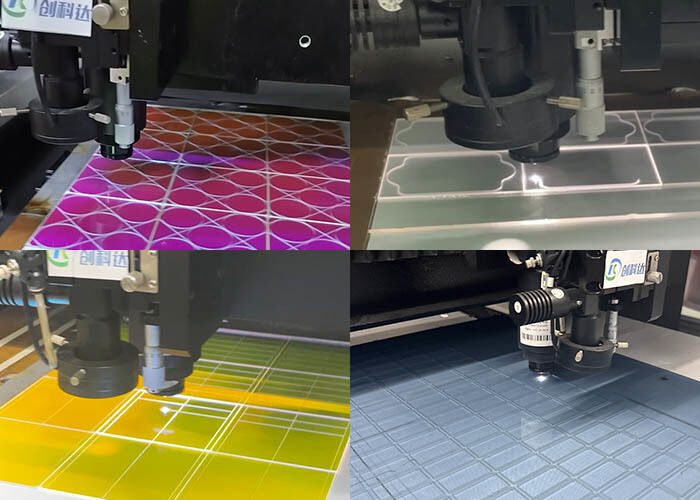

Designed as a colored glass cutting machine, this equipment excels in handling a variety of glass types beyond standard clear glass. Its adaptability makes it suitable for cutting stained glass, which often features complex color patterns and requires delicate handling to avoid damage. The combination of precise laser technology, efficient cooling, and robust mechanical components ensures that users can achieve clean, smooth cuts with minimal edge chipping or cracking.

In summary, this laser glass cutting machine is an exceptional tool for anyone involved in glass cutting, from hobbyists working on stained glass cutting projects to industrial users requiring a reliable small glass laser cutting machine. Its well-balanced design, advanced features, and customizable work area make it a versatile and efficient choice. The integration of a splitting laser source with water cooling, a rack and pinion transmission system, and a high acceleration rate ensures that this machine delivers outstanding performance and precision. Whether you need to cut colored glass for artistic applications or require accurate cuts for commercial glass fabrication, this laser glass cutting machine provides the quality and efficiency needed to excel.

Features:

• Product Name: Laser Glass Cutting Machine
• Laser Source Type: RFC02 (Radio Frequency CO2)
• Advantages:
  • Irregular-shape High-speed Cutting
  • High Cutting Quality: No Taper, No Burr, Small Chipping
  • High Yield Rate
  • Low Consumables and Energy-saving
  • No Pollution, No Powder, and No Wastewater
• CNC Controlled: Yes
• Cutting Speed: Adjustable from 0-500mm/s
• Linear Guide Brand: TPI
• Suitable for Single Table Glass Cutting Machine applications
• Works as a Single Table Glass Cutting Machine and Fiber Laser Cutting Machine

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, and others, is a versatile and high-precision solution designed for a wide range of glass cutting applications. Originating from China and certified with ISO and CE standards, these machines boast advanced features such as a pulse width of less than 10ps, RFC02 Radio Frequency CO2 laser sources with power options ranging from 150W to 350W, and water cooling systems, ensuring superior cutting performance and stability.

These laser glass cutting machines are ideal for thick glass laser cutting machine applications, providing unmatched precision and efficiency even on challenging materials. The high-powered laser sources combined with TPI linear guides enable smooth, accurate cuts on optical glass, making the CKD models perfect for industries requiring flawless glass components such as electronics, automotive, and architectural glass manufacturing.

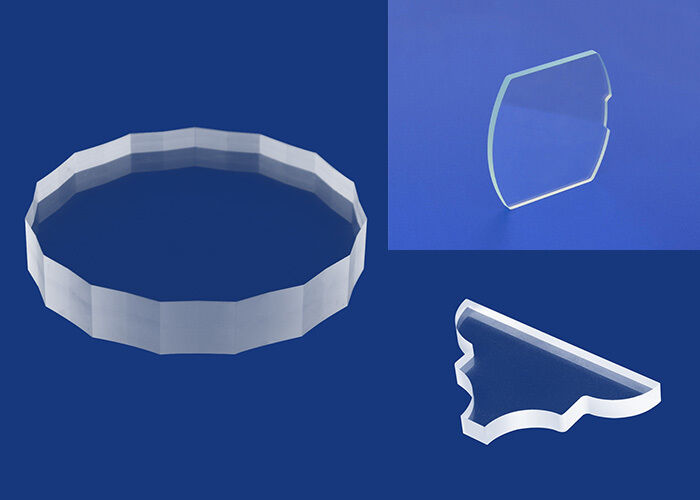

One of the standout capabilities of the CKD laser glass cutting machines is their ability to perform irregular glass cutting. This flexibility allows users to create complex shapes and customized designs without compromising on quality or speed. Whether you need intricate patterns or large-scale cuts, these CNC-enabled machines deliver consistent results, supporting diverse production needs.

The machines’ robust build quality, complemented by wooden vacuum packaging for safe delivery, ensures that each unit arrives ready for installation and immediate operation. With a supply capacity of 60 sets per month and delivery times ranging from 25 to 45 days, CKD supports both small and large-scale manufacturing demands. Payment terms including L/C and T/T provide flexible purchasing options, making these laser glass cutting machines accessible to global markets.

In summary, the CKD Laser Glass Cutting Machine models are suitable for numerous application occasions and scenarios such as industrial glass processing plants, optical component manufacturing, customized glass product fabrication, and any environment requiring precise, efficient, and reliable thick glass laser cutting machine solutions. Their ability to handle optical glass laser cutting and irregular glass cutting tasks makes them indispensable tools in modern glass processing industries.

Customization:

CKD offers comprehensive product customization services for our Laser Glass Cutting Machine series, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. Manufactured in China and certified with ISO and CE standards, our machines are designed to meet diverse cutting needs.

Our small glass laser cutting machine can be customized to handle various glass thicknesses, including thick glass laser cutting machine options, ensuring precision and efficiency. The machines utilize an advanced XY Linear Motor combined with an Optical Grating Scale and TPI linear guides for superior accuracy and stability.

We emphasize environmental protection in our glass laser cutting machines by integrating energy-efficient technology. The splitting laser source supports a pulse frequency from 1 to 100kHz, optimizing cutting performance while maintaining eco-friendly modes. Standby power consumption is about 500W, and average power during cutting is 2.5kW, reducing overall energy usage.

Packaging is handled with care using wooden vacuum packaging to protect the product during transit. Our supply ability is 60 sets per month, with a minimum order quantity of just one unit. Delivery time ranges from 25 to 45 days, and payment terms include L/C and T/T, with pricing negotiable based on customization requirements.

Maintenance is straightforward, with recommended optical alignment every 200 hours and coolant replacement every 1000 hours. We also provide regular remote diagnostics and software updates to ensure your machine operates at peak performance.

Choose CKD for a reliable, customizable, and environmentally conscious laser glass cutting solution tailored to your specific needs.

Support and Services:

Our Laser Glass Cutting Machine is designed to deliver precision and efficiency for all your glass fabrication needs. To ensure optimal performance, please follow the recommended maintenance schedule and operating guidelines provided in the user manual.

If you encounter any technical issues, our support team is ready to assist you with troubleshooting, repairs, and replacement parts. We offer comprehensive training sessions to help your staff operate the machine safely and effectively.

Regular software updates and system diagnostics are available to keep your machine running smoothly. Additionally, we provide customized service plans tailored to your specific operational requirements.

For installation and setup, our experienced technicians will ensure your Laser Glass Cutting Machine is properly configured and calibrated to achieve the best results.

We are committed to providing ongoing support and expert advice to maximize the productivity and lifespan of your equipment.
