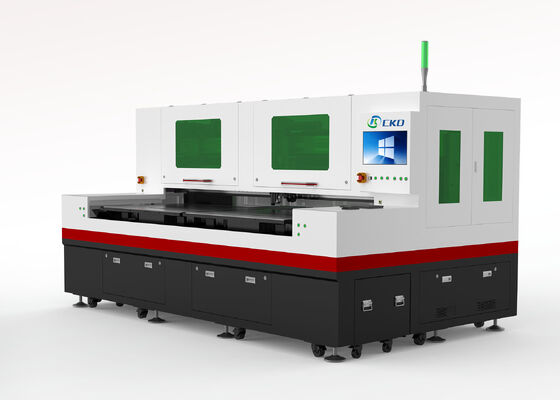

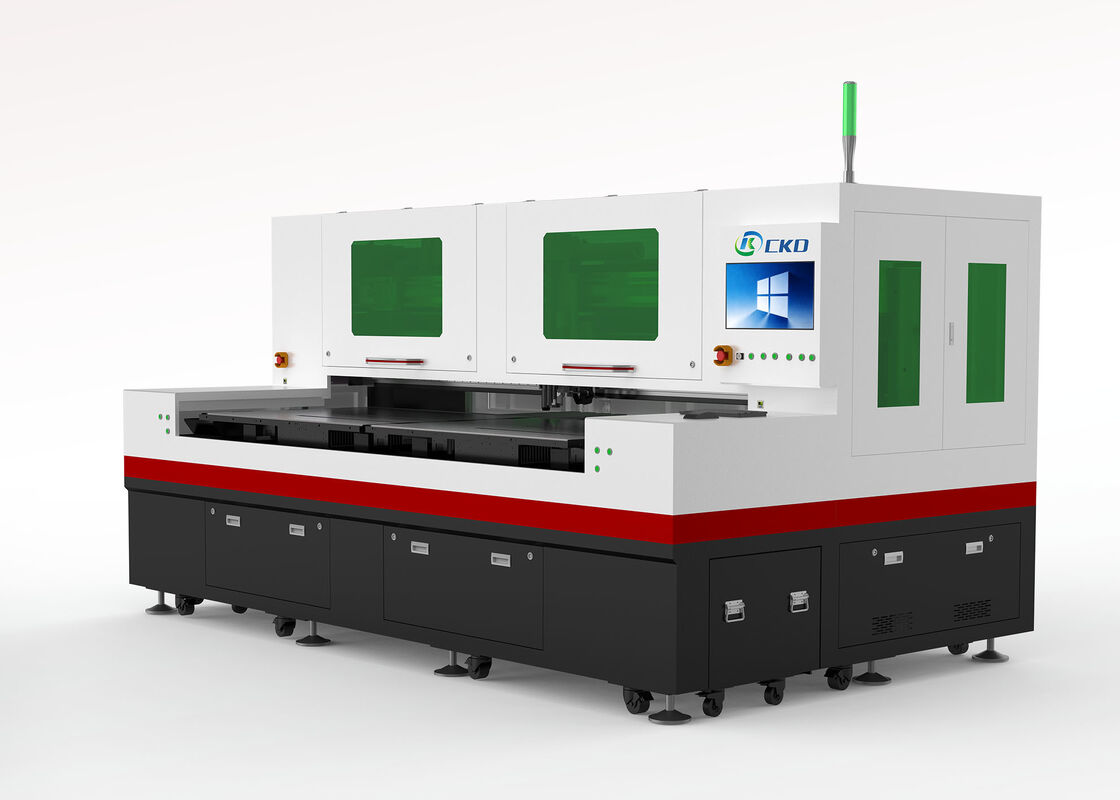

High Precision Laser Glass Cutting Machine Equipped with Advanced Motion Control and Real Time Monitoring for Assurance

Product Description:

The Laser Glass Cutting Machine is an advanced polygonal glass cutting machine designed to meet the highest standards of precision and efficiency in the glass processing industry. Engineered with cutting-edge technology, this high precision laser cutting machine offers unparalleled performance for both small and large-scale glass cutting applications. It is an ideal solution for businesses seeking to enhance productivity while maintaining exceptional quality in their glass cutting operations.

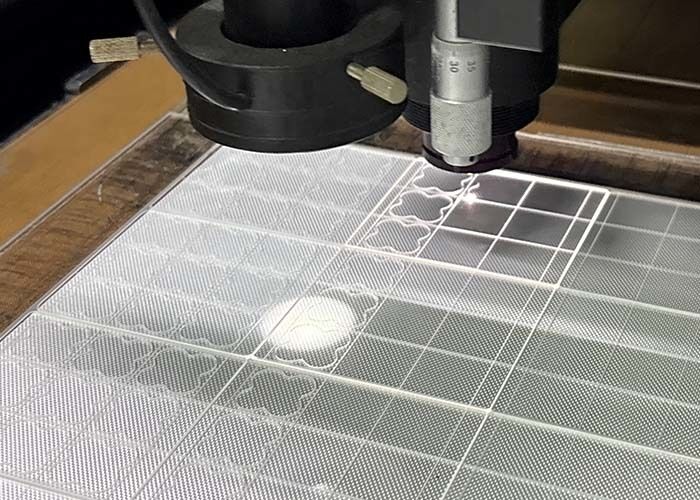

One of the standout features of this small glass laser cutting machine is its ultra-fast picosecond laser technology. The ultra-fast picosecond pulses enable extremely precise and clean cuts with minimal thermal impact on the glass material. This results in superior edge quality, reduced micro-cracks, and enhanced overall durability of the finished product. The rapid cutting speed significantly improves throughput, making it suitable for industries requiring high-volume production without compromising accuracy.

The machine is equipped with the state-of-the-art HTI Control System, offering users intuitive and precise control over the cutting process. The HTI Control System enhances operational efficiency by providing real-time monitoring, easy parameter adjustments, and robust error handling capabilities. This control system ensures consistent cutting quality and reduces downtime, making the machine highly reliable for continuous industrial use.

Beam quality is a critical factor in laser cutting, and this machine excels with a beam quality of M² < 1.2. Such superior beam quality ensures a tightly focused laser spot, which contributes to the high precision and clean cuts that are essential when working with delicate glass materials. This precision enables the machine to handle intricate cutting patterns and complex designs with ease, expanding its versatility across various glass cutting tasks.

Understanding the importance of seamless integration in modern manufacturing environments, the Laser Glass Cutting Machine supports compatibility with major automation systems. It is designed to work effortlessly with robot interfaces and automatic loading/unloading systems, enabling streamlined workflows and reducing manual labor requirements. Additionally, the machine supports standard industrial communication protocols such as Modbus and OPC, facilitating easy integration into existing factory automation networks and enhancing overall production efficiency.

The work size of this laser cutting machine is 610*700mm per unit, with two units available, allowing for versatile and customizable configurations to suit different production needs. This customizable work size ensures that the machine can be adapted to various glass sizes and cutting requirements, providing flexibility for diverse applications. Whether you need to cut small glass pieces or larger panels, this polygonal glass cutting machine can be tailored to meet your specific demands.

In summary, the Laser Glass Cutting Machine is a top-tier solution for industries that require a combination of speed, precision, and automation compatibility. Its ultra-fast picosecond laser technology, combined with the HTI Control System and superior beam quality (M² < 1.2), makes it an outstanding choice for high precision laser cutting tasks. The machine’s ability to integrate with major automation systems, including robot interfaces and automatic loading/unloading setups, further enhances its suitability for modern manufacturing environments. With a customizable work size of 610*700mm X 2, this small glass laser cutting machine stands out as a versatile, reliable, and efficient tool for glass processing professionals seeking to elevate their production capabilities.

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070D-50E, CKD-SP6070S-50E, and many others, is a cutting-edge solution designed to meet diverse glass processing needs. Manufactured in China and certified with ISO and CE, these machines ensure high quality and reliability for industrial applications.

These laser glass cutting machines are particularly suitable for environments requiring precision and versatility, such as glass manufacturing plants, automotive glass workshops, architectural glass production lines, and electronics display panel factories. Thanks to their advanced XY linear motor drive combined with optical grating scales, these machines deliver exceptional repeatability of ±1.5μm, making them ideal for intricate and delicate cutting tasks.

One of the outstanding features of the CKD series is their capability to handle various glass types, including colored glass cutting machine operations. This makes them indispensable for industries where aesthetic and functional glass customization is essential. Whether cutting clear, tinted, or laminated glass, these machines provide clean, precise cuts without compromising the integrity of the material.

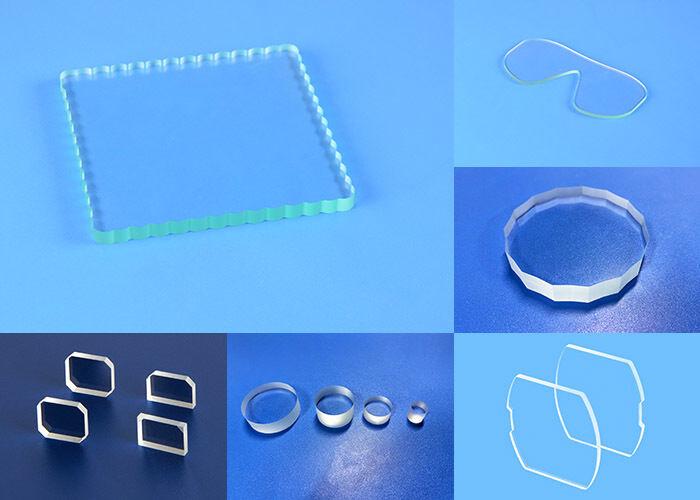

The CKD laser glass cutting machines excel in irregular glass cutting scenarios, allowing manufacturers to produce complex shapes and customized glass components efficiently. This flexibility is crucial for applications requiring non-standard glass shapes, such as designer furniture panels, artistic glass installations, and specialty automotive or architectural glass parts.

Additionally, the machines support integration with major automation systems, including robot interfaces and automatic loading/unloading systems. This compatibility, along with support for standard industrial communication protocols like Modbus and OPC, enables seamless incorporation into existing production lines, boosting productivity and reducing labor costs.

With cutting thickness capabilities ranging from 0.03mm to 25mm and a laser wavelength of 1064nm, the CKD Laser Glass Cutting Machine series is versatile enough to handle thin delicate glasses as well as thicker, more robust glass materials. Packaged securely in wooden vacuum packaging and available with flexible payment terms such as L/C and T/T, these machines are delivered within 25-45 days, with a supply capacity of 60 sets per month, making them a reliable choice for manufacturers worldwide.

In summary, the CKD laser glass cutting machines are perfectly suited for a wide range of glass processing occasions and scenarios, from high-precision colored glass cutting machine tasks to demanding irregular glass cutting projects, ensuring efficiency, accuracy, and integration capabilities for modern glass production needs.

Customization:

CKD offers customized services for the Laser Glass Cutting Machine, including models CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E. This Single Table Glass Cutting Machine is designed and manufactured in China with ISO and CE certification ensuring top quality and safety standards.

Our Fiber Laser Cutting Machine allows for high precision laser cutting with a cutting width ranging from 0.03 to 25mm. The machines are equipped with an HTI Control system for smooth and accurate operation, and feature splitting laser source pulse frequency adjustable between 1-100kHz to meet various cutting requirements.

For ease of mobility, the machines come with heavy-duty wheels and locking mechanisms, enabling easy movement and stable repositioning in your workspace. We recommend optical alignment every 200 hours and coolant replacement every 1000 hours to maintain optimal performance. Additionally, regular remote diagnostics and software updates are available to support your machine’s longevity.

Packaging is done with wooden vacuum packaging to ensure safe delivery. The minimum order quantity is 1 set, with a supply ability of 60 sets per month. Delivery time ranges from 25 to 45 days. Pricing is negotiable, and payment terms include L/C and T/T, providing flexible options for your purchasing needs.

Choose CKD’s High Precision Laser Cutting Machine for reliable, efficient, and customizable glass cutting solutions tailored to your production demands.

Support and Services:

Our Laser Glass Cutting Machine is designed to provide precise and efficient cutting solutions for various types of glass. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Technical Support:

Our skilled support team is available to assist you with installation, setup, and troubleshooting. We provide detailed user manuals and software updates to help you operate the machine effectively. In case of any technical issues, our experts can guide you through diagnostics and repairs remotely or on-site if necessary.

Maintenance Services:

Regular maintenance is crucial for the smooth functioning of your Laser Glass Cutting Machine. We offer scheduled maintenance programs that include cleaning, calibration, and component inspection to prevent unexpected downtime and extend the machine’s lifespan.

Training and Consultation:

To maximize the benefits of your investment, we provide training sessions for your operators and technical staff. Our training covers machine operation, safety protocols, and routine maintenance. Additionally, our consultants can help you optimize cutting parameters for different glass types and thicknesses.

Spare Parts and Upgrades:

We supply genuine spare parts and accessories to ensure compatibility and performance. Our team can also advise on available upgrades to enhance the capabilities of your Laser Glass Cutting Machine, including software enhancements and hardware improvements.

Warranty and Service Agreements:

The Laser Glass Cutting Machine comes with a standard warranty covering manufacturing defects. Extended service agreements are available for ongoing support and priority service response, providing peace of mind and minimizing production interruptions.

We are committed to delivering exceptional support and services to help you achieve the best results with your Laser Glass Cutting Machine.
