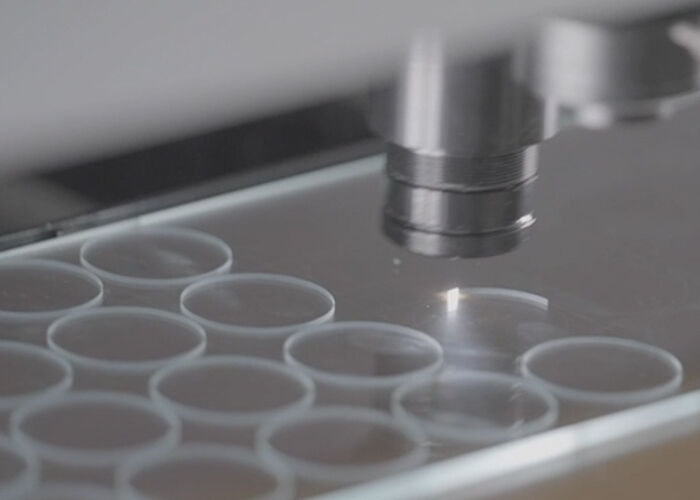

Laser Glass Cutting Machine suitable for producing glass components used in electronics displays and solar panel manufacturing

Product Description:

The Laser Glass Cutting Machine is an advanced and precision-engineered solution designed to meet the diverse needs of the glass processing industry. This state-of-the-art machine excels in delivering exceptional cutting performance across various types of glass, including stained glass, colored glass, and optical glass. By integrating cutting-edge laser technology, it offers unparalleled accuracy, efficiency, and versatility, making it an indispensable tool for manufacturers and artisans alike.

One of the standout features of this Laser Glass Cutting Machine is its impressive cutting width range, which spans from an ultra-fine 0.03mm to a substantial 25mm. This broad spectrum allows users to perform intricate cuts on delicate stained glass pieces as well as handle thicker, more robust colored glass materials with ease. The machine’s precision is further highlighted by its minimum cutting burr of less than or equal to 5 micrometers (≤5µm), ensuring clean, smooth edges that require minimal post-processing. This level of detail is particularly crucial when working with optical glass, where even the slightest imperfection can affect the quality and performance of the finished product.

Equipped with a pulse frequency range from 1Hz up to an impressive 1000kHz, the Laser Glass Cutting Machine provides exceptional control over the cutting process. This wide frequency range enables users to customize the laser pulses to suit different glass types and thicknesses, optimizing cutting speed and quality. Whether cutting intricate designs in stained glass or achieving precise contours in colored glass, the machine’s adaptable pulse frequency ensures superior results every time.

Acceleration plays a critical role in the efficiency and precision of laser cutting, and this machine delivers an acceleration of 1G. This capability allows for rapid yet controlled movements of the laser head, reducing cycle times without compromising accuracy. Such responsiveness is particularly beneficial in high-volume production environments where consistency and speed are paramount.

The beam quality of the Laser Glass Cutting Machine is another defining attribute, boasting an M² value of less than 1.2. This high beam quality indicates a tightly focused laser beam with minimal divergence, which is essential for achieving fine cuts and intricate patterns on various glass surfaces. Whether processing delicate stained glass artwork or high-precision optical glass components, the superior beam quality ensures the laser energy is delivered exactly where it is needed, minimizing heat-affected zones and preventing damage to surrounding material.

Designed with user convenience and operational efficiency in mind, this machine incorporates advanced control systems that facilitate easy programming and real-time monitoring. Its robust construction ensures durability and long-term reliability, even in demanding industrial settings. The versatility of this laser glass cutting machine makes it suitable for a wide range of applications, from artistic stained glass creations and decorative colored glass panels to highly specialized optical glass components used in scientific and technological fields.

In summary, this Laser Glass Cutting Machine represents a perfect blend of precision, power, and flexibility. Its ability to handle cutting widths from 0.03mm to 25mm, maintain a minimum cutting burr of ≤5µm, operate across a vast pulse frequency range of 1Hz to 1000kHz, and deliver acceleration of 1G combined with exceptional beam quality (M² < 1.2) makes it a top choice for professionals seeking a reliable and high-performance glass cutting solution. Whether you are working with stained glass, colored glass, or require the exacting standards needed for optical glass laser cutting, this machine is engineered to exceed expectations and elevate your production capabilities to new heights.

Technical Parameters:

Applications:

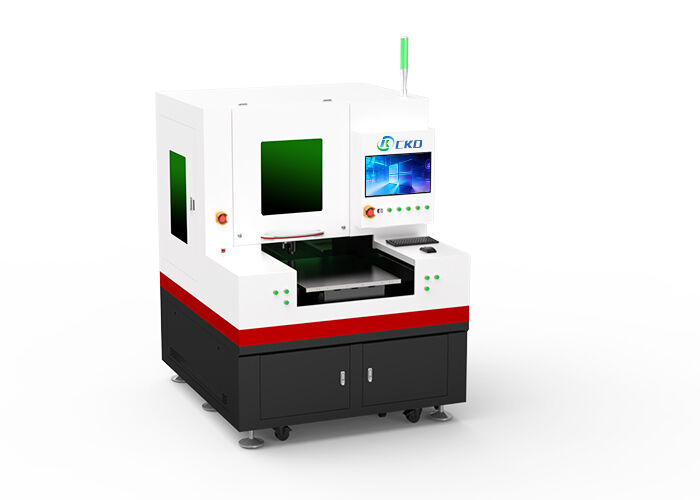

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070D-50E, CKD-SP6070S-50E, and others, offers versatile and precise cutting solutions for various glass types and thicknesses. Manufactured in China and certified by ISO CE, these machines are designed to meet the highest standards of quality and performance, making them ideal for a wide range of application occasions and scenarios.

One of the primary application occasions for the CKD laser glass cutting machines is in the production of colored glass products. The colored glass cutting machine models ensure clean, burr-free edges with a minimum cutting burr of ≤5μm, making them perfect for decorative glass panels, stained glass art, and architectural glass installations where precision and aesthetics are paramount. Their ability to support multiple image and text formats such as AI, PLT, DXF, BMP, Dst, DWG, LAS, and DXP enables flexible design input, catering to customized and intricate patterns.

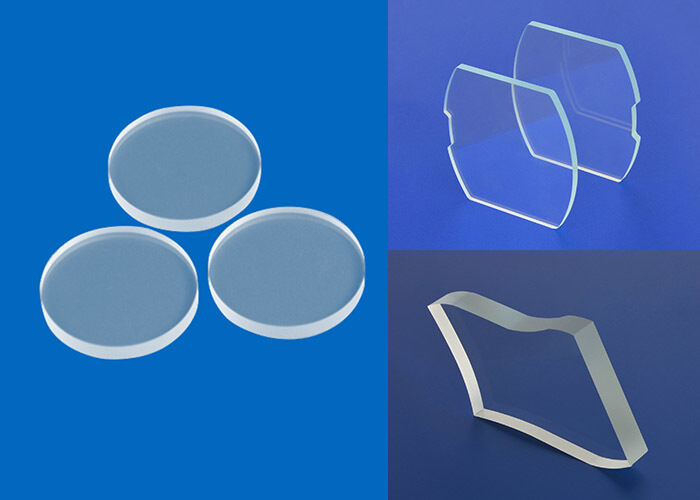

In scenarios requiring the processing of thin to small glass pieces, the Small glass laser cutting machine variants provide unmatched control and accuracy. With an adjustable cutting speed ranging from 0 to 500mm/s and cutting thickness capabilities from 0.03mm to 25mm, these machines are highly suitable for industries like electronics, automotive, and specialty glass manufacturing. Their compact yet powerful design allows for efficient cutting of small glass components used in devices, displays, and lenses.

For industrial applications demanding the cutting of thick and robust glass materials, the Thick glass laser cutting machine models in the CKD lineup excel in delivering high acceleration up to 1G, ensuring fast and smooth cutting processes. These machines are widely used in the construction sector for tempered glass, safety glass, and automotive windshields, providing clean edges without micro-cracks or defects. The wooden vacuum packaging ensures the machines arrive safely, and with a supply ability of 60 sets per month, CKD guarantees reliable delivery within 25-45 days after order confirmation.

Overall, CKD’s laser glass cutting machines are perfectly suited for diverse industrial applications including architectural glass fabrication, decorative glass art, automotive glass processing, electronics manufacturing, and custom glass product development. With flexible payment terms such as L/C and T/T and a minimum order quantity of just one unit, these machines offer accessible and scalable solutions for businesses seeking high precision and quality in glass cutting.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packed to ensure safe delivery and protection during transit. Each unit is enclosed in a sturdy wooden crate with internal foam padding to prevent any damage from shocks or vibrations. The machine is covered with anti-static and moisture-resistant materials to protect sensitive components. All accessories, manuals, and cables are securely packed in separate compartments within the crate. The packaging is clearly labeled with handling instructions and fragile warnings to ensure proper care during shipping.

Shipping:

We offer reliable shipping options for the Laser Glass Cutting Machine to destinations worldwide. The machine is shipped via trusted freight carriers with tracking available throughout the delivery process. Depending on the destination, shipping can be arranged by sea, air, or land transport to optimize cost and delivery time. Upon arrival, the customer should inspect the packaging for any visible damage and report any issues immediately. We also provide optional installation and training services upon request to ensure smooth setup and operation of the machine.
