6000W 8000W Fiber Laser Cutting Machine / Stainless Steel Sheet Cutting Machine
Advantages of Laser Cutting Machine
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 20m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
Laser Cutting Machine integrates optical, mechanical and electrical technology into one machine, which adopts laser technology, computer control technology and high-performance CNC (computer numerical control) laser power system. Laser Cutting Machine is capable of processing all kinds of sheet metal with high speed and efficiency.
The maximum size of sheet metal that Laser Cutting Machine HECF4020VWJ-4000 can cut is 4000mm×2000mm. The products will have smooth edge with high quality surface finish, small kerf width and little heat effect, the machine is especially suitable for cutting sheet metal.
Optical fiber transmission, flexible processing, suitable for cutting all kinds of metal materials such as stainless steel, carbon steel, aluminum, brass, copper and all others;Laser, cutting head, reducer, gear, rack and so on.
The key components are imported famous brands;Gantry structure, high stability of the machine, high-strength high-rigidity aluminum alloy beams;
Low operating costs and optical maintenance-free;
simple and intuitive system interface,high speed and high accuracy,high cost performance, easy operation and convenient operation.
Special Cutting Parts for Pipe Materials
Equip with the special gripper for cutting pipe materials, which can drill with intersecting line and cut off the cylindrical metal pipe, and the pipe cutting diameter area is from 20mm to 250mm, it is good for broadering the utilization ratio of equipment.
Optional air compressor blow and compress air during all kinds of materials’ cutting processing, which can greatlyreduce the using cost.
|Laser output power||4000w|
|Laser medium||Glass fiber with rate-earth element|
|Laser beam quality||3.5-4mm mrad|
|Min beam width||≤0.15mm|
|Max range for X axis||4000mm|
|Max range for Y axis||2000mm|
|Max range for Z axis||250mm|
|Max size for cutting (XY axis)||4000mmx2000mm|
|Max thickness of cutting carbon steel||25mm (Optimum thickness 0.5--22mm)|
|Max thickness of cutting Stainless Steel||12mm (Optimum thickness 0.5--10mm)|
Characteristics of our laser cutting machine:
1 dual servo motor drive.
2 has higher stability, higher speed and faster acceleration.
3 all digital CNC servo motor communication.
4 new peripheral design, from 3 different directions to enter the work area of the equipment.
5 the equipment can be operated in the case of the equipment equipped with or without switching table.
Sheet metal processing die-board processing electronics,appliances,aeronautics,
Astronautics,machine manufacturing,elevator,automobile,steamship,electric equipment manufacture,tool processing,subway accessories,petroleum machinery,food machinery,

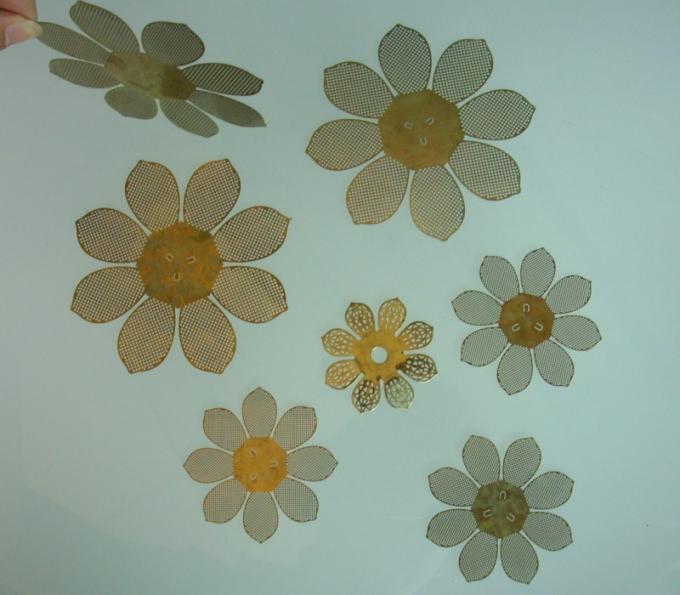

craft gift,decoration,advertisement,metal external processing and other manufacturing
1)What about the running cost of the machine?
Running cost will be the Air/O2/N2 for cutting assistant, electricity and the consumable parts in the head.
2) What kinds of the laser source with this machine? how long life span?
it uses fiber laser source for cutting metal, life span up to 100,000 hrs.
3)What kinds of gas should need for cutting steel?
Cutting CS use O2 and Air, cutting SS use N2 for high quality and clean edge, O2 for SS cutting with black edge.
Air for cutting steel will be a yellow edge.
4)how much total power of the whole machine?
It will be around 15KW, 380V 50-60HZ
5)What accessories of the machine?
Water Chiller, Exhaust Fan, Control system.
6) How long warranty of the machine?
7) Do you have an engineer for local installation in my factory?
Yes, we will send an engineer to your for installation and training if you Carrie round trip air tickets and accommodation fee, free training in our factory.
8) Can I come to you for Die manual accessories and materials?
YES, we have full solutions of the laser die cutting, both the flat dies and rotary dies, it is our pleasure to help you.
if more questions, please feel free to contact us.
