Water Cooling Laser Drilling Machine 400mm/s  800*800mm  For Glass Panel

Water Cooling Laser Drilling Machine 400mm/s 800*800mm For Glass Panel

  • High Light

    Water Cooling Laser Drilling Machine

    ,

    Glass Panel Laser Drilling Machine

    ,

    Laser Drilling Machine 400mm/S

  • Type
    Laser Drilling Machine
  • Condition
    New
  • Max. Drilling Dia. (mm)
    300
  • Range Of Spindle Speed(r.p.m)
    100 - 500 R.p.m
  • CNC Or Not
    Normal
  • Drilling Speed
    400mm/S
  • Dimension(L*W*H)
    1560*1750*1750mm
  • Power (kW)
    45w
  • Key Selling Points
    High Productivity
  • Showroom Location
    None
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Construction Works
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    13 Months
  • Work Size
    800*800mm
  • Drilling Thickness
    <20mm
  • Drilling
    100mm
  • Positioning Accuracy
    ±0.02mm
  • Chipping
    200μm
  • Type Of Laser
    Green Light Pulse Laser
  • Laser Light
    1064nm
  • Breadth
    100mm
  • Place of Origin
    Guangdong, China
  • Price
    $78,000.00/pieces >=1 pieces
  • Supply Ability
    10 Piece/Pieces per Month

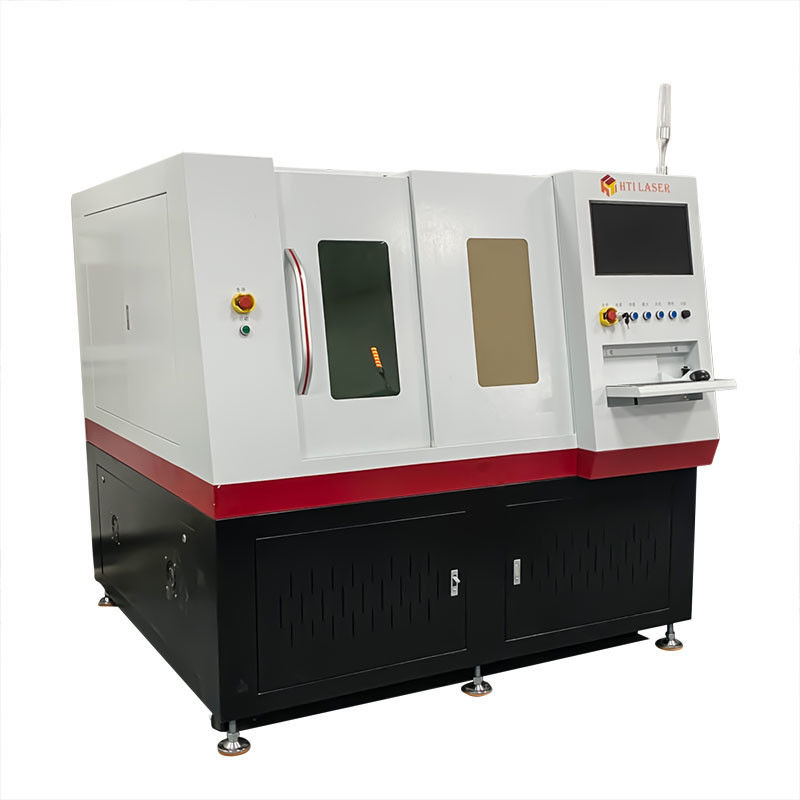

Water Cooling Laser Drilling Machine 400mm/s 800*800mm For Glass Panel





Green Nanosecond
Glass Laser Drilling Machine
  Advantages
  Irregular/micro/through/countersunk/tapered holes
  Non-contact processing, Min material damage
  High drilling accuracy, min Chipping, wastewater-free
  Material
  Ultra-clear glass, K9 glass, high borosilicate
  glass, quartz glass etc;

1 . High performance servo + precision screw + precision guide closed loop control ;

2 . High power pulse laser is used to cut glass with small edge breakage and fast speed .

3 . Using high-precision galvanometer , with telecentric lens , cutting stability , and the maximum close to no taper ;

4 . High negative pressure vacuum machine is used to adsorb products to ensure positioning stability ;

5 . Equipped with automatic alignment CCD and visual lens , can be used for alignment cutting ;

6 . Professional cutting software, easy to learn and use to meet application needs ;

Water Cooling Laser Drilling Machine 400mm/s  800*800mm  For Glass Panel 0Water Cooling Laser Drilling Machine 400mm/s  800*800mm  For Glass Panel 1

Support and Services

Technical Support and Service for Laser Glass Cutting Machine

We provide technical support and services for our Laser Glass Cutting Machine in order to ensure our customers have the best experience with their machine. We provide a 24/7 customer service hotline, as well as email and online support.

We also provide installation and maintenance services for our customers if needed. Our technicians can install and troubleshoot the machine to ensure that it works properly. We also provide regularly scheduled maintenance to ensure the longevity of the machine.

We also have a team of engineers available to answer any technical questions or provide assistance with any problems that may arise. We are always happy to help our customers get the most out of their machine.





FAQ

Q1: Could I visit your factory?

A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from

bao'an International airport to our factory.

Q2: How many years do you do this business?

A2: From 2008.

Q3: Does your factory have the design & development capacities, we need customized products?

A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.

       We can make customized products especially for you; Please kindly contact us for more details.

Q4: What is payment terms?

A4: 100% T/T advanced.

Q5: About shiping?

A5: 3-10 days after payment for standard products, please consult our sales for customized products.

Q6: How about your after service?

A6: Our engineers who has long time professional experience and sales will help you within 24h.

Q7: Do you have patents or core technology?

A7: Yes, for details, please contact our sales.

Q8: Where have you sold your products?

A8:  Europe, Americas, Africa, and Asia.



 If you have any questions, Please no hesitate to contact  us. We will as always provide and feedback you the higher performance, cost-effective, better quality products and timely service.
