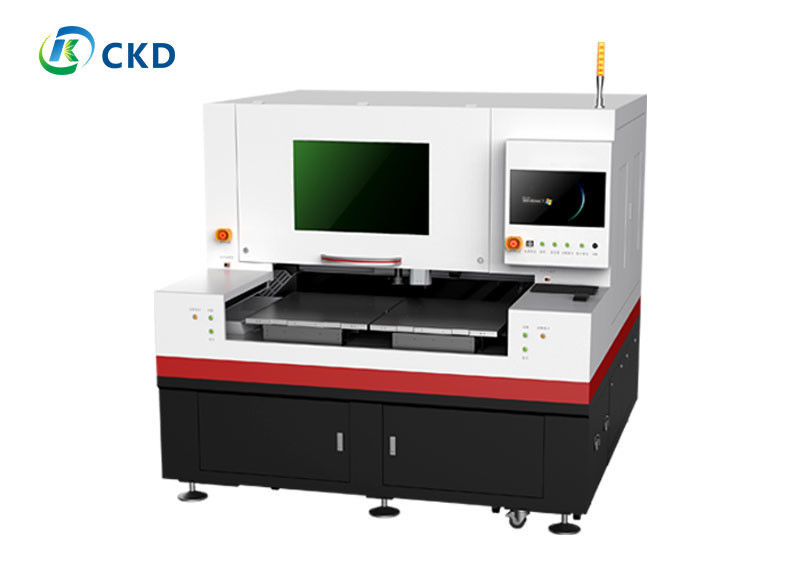

Electronic Chip Glass Laser Cutting Machine
50W Infrared Picosecond
1 . The laser glass cutting machine independently developed by Holy Laser, it uses high-power picosecond as laser source, and core components and LD pump sources are provided by international first-tier manufacturers, Let machine processing more stable.
2 . The customized glass cutting head, it's lenses are all imported from the United States, the light spot is thin, the focal depth is long, the minimum focusing spot is less than 2um, and the focal depth can reach 3mm.
3 . The motor platform and the base of the optical platform are made of natural marble, which has undergone secondary fine grinding processing, and the accuracy level reaches 00.
4 . The X/Y axis motor adopts imported high-end linear motor, 0.1um digital grating ruler, and the Z axis adopts high-quality core moving parts of Taiwan screw and guide rail.
5 . High negative pressure vacuum pump is used to adsorb products to ensure positioning stability.
Equipped with alignment CCD and telecentric vision lens to accurately identify circles, crosses and special-shaped Mark points.
| PRODUCT SPECIFICATIONS |
| Laser Type |
Fiber Laser |
| Cutting Speed |
0-500mm/s |
| Work Size |
600*700mm*2 |
| Accuracy |
±0.01mm |
| Cutting Thickness |
0-25mm |
| Chipping |
≤5μm |
| Laser Source Brand |
RAYCUS |
| Configuration |
3-axis |
| Graphic Format Supported |
AI, DXF, Dst, DXP |
| Laser Head Brand |
Raytools |
| Laser power |
20W/30W/40W/50W60W/70W |
| Cutting materials |
Glass/tempered glass/screen Protector |
| Guiderail Brand |
HIWIN |
FEATURES
1 . High cutting strength.
2 . Small edge chipping.
3 . High production efficiency and low cost.
4 . The electrical components are made of French Schneider, and the switching power supply is made of
Taiwan's MEAN WELL, with quality assurance
Different thickness cases
Samples of different shapes
Why Choose Us
Established in 2010,Shenzhen CKD Precision Mechanical & Electrical Co., Ltd is a laser equipment manufacturer and automation New Intelligent Manufacturing solution provider , specializing in the R&D , production , sales , and service.
Thanks to our strong R&D team and core software technology, our product technology has achieved innovation and breakthroughs in fields such as ultra-fast laser cutting , laser drilling , TFT-LCD screen laser repair , laser welding, and laser marking . Especially in the automation new intelligent manufacturing of glass brittle material processing and TFT-LCD repair industry , the company provides customers with low-cost , high-quality , and efficient solutions , making contributions to customer value , innovation , and development .
FAQ
Q: What’s the package?
A: We have 3 layers package: The outside is plywood case, which is fumigation-free packaging. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
