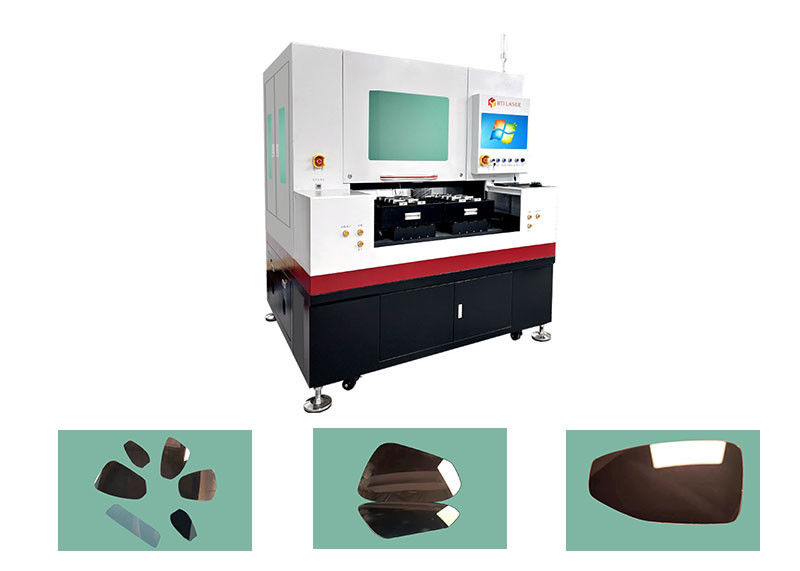

The Glass Mirror Cutting Machine is a cutting-edge tool for precise cutting of glass materials. With its cutting accuracy of ±0.01mm, the machine can easily achieve perfect cuts for glass and mirror materials. It is designed with a dimension of 1800*1700*2035mm and a cutting angle of 0-45°, making it the perfect choice for decorative mirror laser cutting, vanity mirror laser cutting, and fiber laser cutting applications. This cutting machine is the perfect choice for creating intricate designs on glass and mirror materials with perfect precision.
Free sample testing before order
Free spares provided for machines / Free design scheme
Free machine training at factory / technician available for oversea service
One-to-one effective service within 24 hours
| Technical parameters | |
| X/Y movement speed: | max. 500mm/s |
| Laser type | Infrared picosecond |
| Laser wavelength | 1064nm |
|
Cutting Thickness
|
≤5mm
|
| Laser power | 50W / 80W optional |
| Pulse length | ≤10PS |
| pulse frequency | 1Hz-1000kHz |
| Working mode | laser XY moving |
| Cooling method | water-cooled |
| Focusing mode | cutting head |
| Focusing spot | ≤Ф3um |
| Cutting speed | adjustable 0-500mm / s |
| Cutting thickness | according to the thickness of the glass to choose the number of laser W |
| Minimum cutting edge chipping | 6um |
| X / Y cutting stroke | 200mm x 300mm / 200mm x 400mm |
| X/Y positioning accuracy | ≤±2μm |
| X/Y repeat positioning accuracy | ≤±1um |
The CKD CC-GM6 Glass Mirror Cutting Machine is a comprehensive cutting machine for various types of glass mirrors. It can process both flat and curved glass mirrors with an accuracy of ±0.01mm. The cutting angle can be adjusted from 0-45 degrees according to the requirements. This product is widely used in the production of cosmetic mirrors, rearview mirrors, and other types of glass mirrors.
The technical support and service for Glass Mirror Cutting Machine includes the following:
Q1 : Before asking me about our fiber lasers cutting machine , you'd better provide me with the following information
1) Your metal or non-metal material size. Because in our factory, we have different models according to the work area.
2) Your material.
Metal / Acrylic / Plywood/MDF / Glass ?
3) Do you want to engrave or cut ?
If cutting , can you tell me the thickness of your cut ? Because different cutting thicknesses require different laser tube power and laser power suppliers .
Q2 : Is this machine has quickly-wear part?
The service life of the picosecond laser cutting machine is more than 100,000 hours, keeping better work environment. Except for the damaged parts, no parts need to be replaced.
Q3 : Will the package be damaged during transportation?
Our packages take all damage factors into consideration and make sure the product will be in safe transportation. We have exported to 180 countries worldwide. So transportation won't be problem for us and customers will definitely receive products in good condition.
Our products are sold all over the world, you can rest assured.
